Metabo KS 216 M Compound Mitre Saw 216mm, 1350W | 610216000

Metabo KS 216 M Compound Mitre Saw 216mm, 1350W | 610216000.

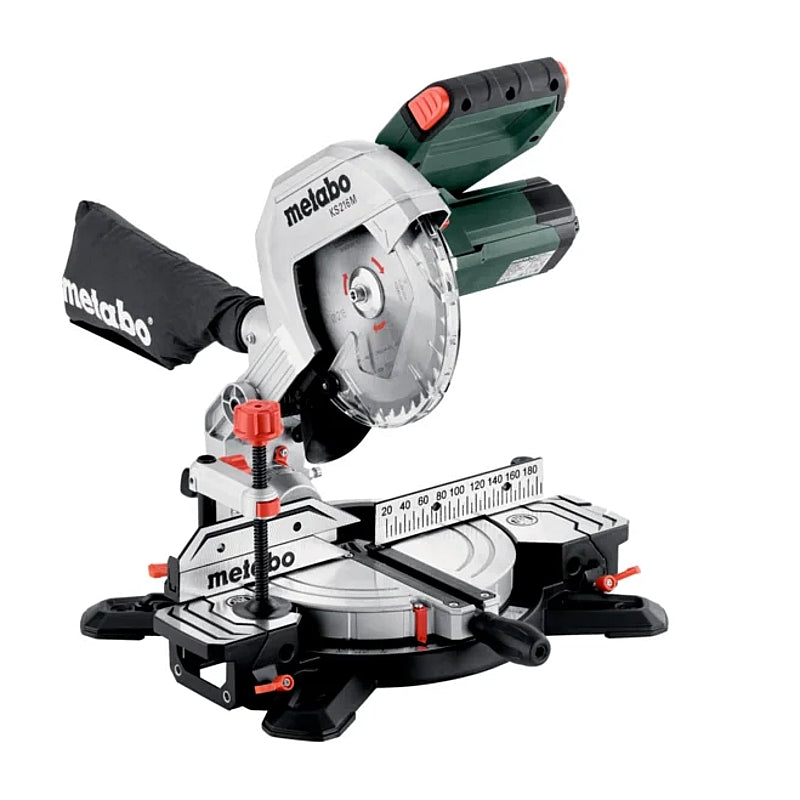

The Metabo KS 216 M is a compact crosscut and compound mitre saw from the mobile M-class, combining low weight with precision and straightforward operation. Its Precision Cut Line (PCL) system uses a carefully positioned LED to project an accurate shadow cutting line without re-adjustment. Meanwhile, the turntable provides fast, precise selection of common angles using stop points, with adjustment up to 47° to the left and right. The saw blade tilts from -2° to 47°, allowing undercuts as well as bevel cuts. A robust die-cast aluminium design supports demanding use, while the integrated dust scoop extracts dust and chips efficiently for cleaner, more comfortable working. In addition, the extendable table extensions provide workpiece support and can be removed for placement beneath extremely long workpieces. The quick-action material clamp secures the workpiece from above or from the front. All scales and operating elements remain visible from the working position for intuitive adjustment, while ergonomic carrying areas allow transport with one or two hands. The saw offers a cutting capacity of 120 × 60 mm at 90°/90° and comes with a 40-tooth precision cut wood – classic blade, table extensions and a chip collection bag.

Features & Benefits:

• Compact Mobile M-Class Design: Combines low weight, precision and user-friendly operation for convenient transport and use.

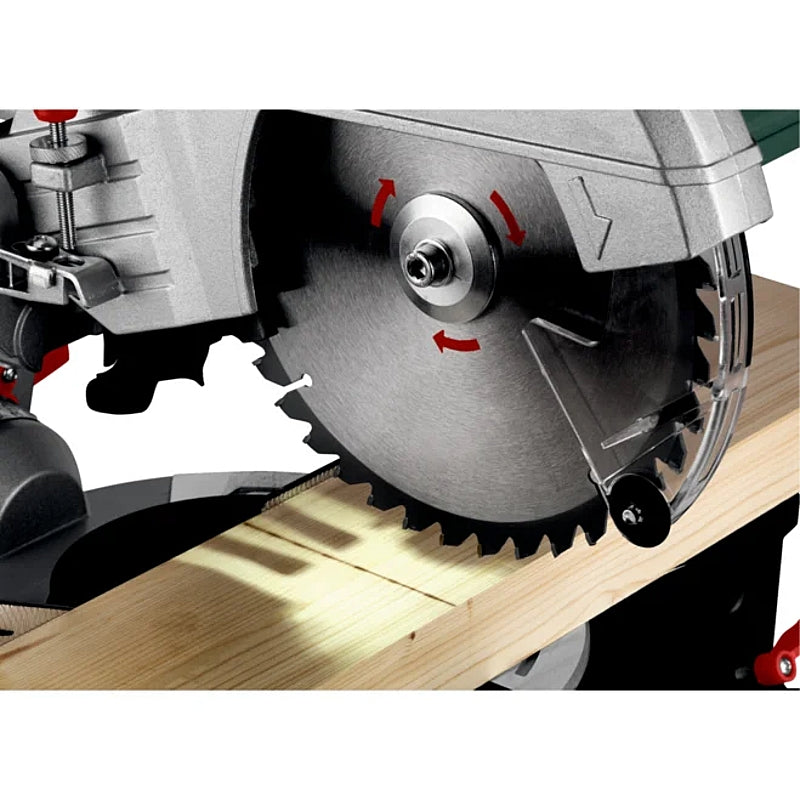

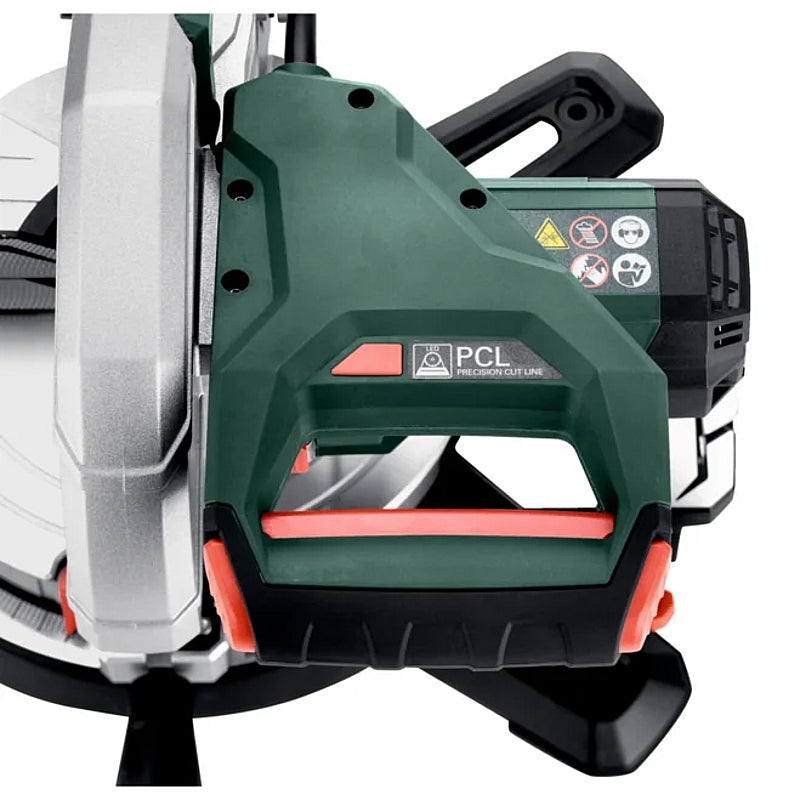

• Precision Cut Line: A cleverly positioned LED creates a precise shadow cutting line without the need for re-adjustment.
• Fast Mitre Settings: Turntable stop points allow quick, precise selection of common cutting angles.
• Wide Turntable Adjustment: Adjusts up to 47° to the left and right for angled cuts.
• Blade Inclination for Undercuts: The -2° to 47° tilt range supports bevel cuts and undercuts.
• Robust Aluminium Construction: The die-cast aluminium design supports demanding applications.

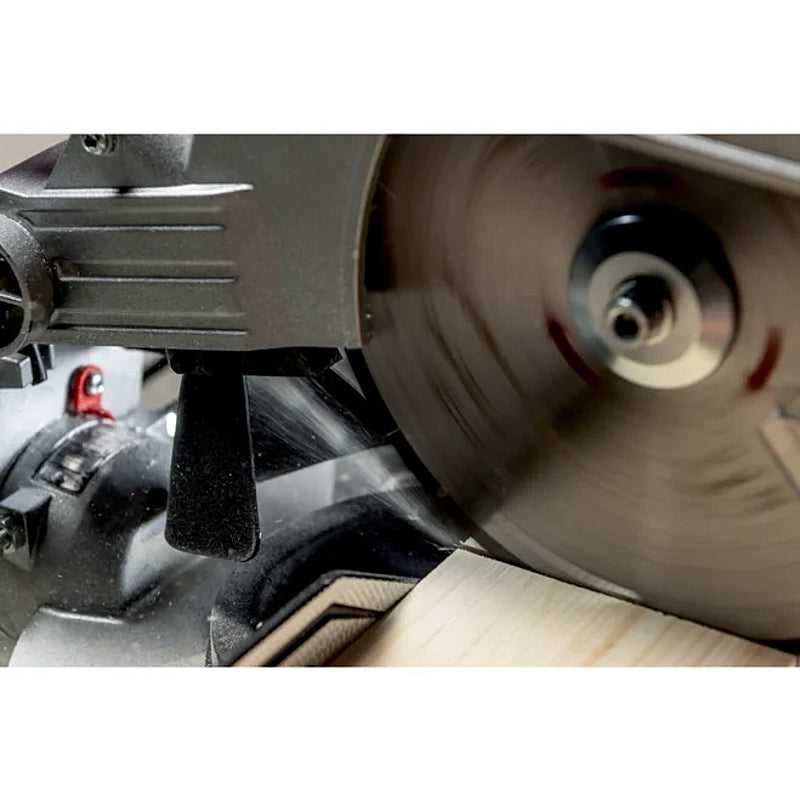

• Integrated Dust Scoop: Extracts dust and chips immediately and efficiently for clean, comfortable working.

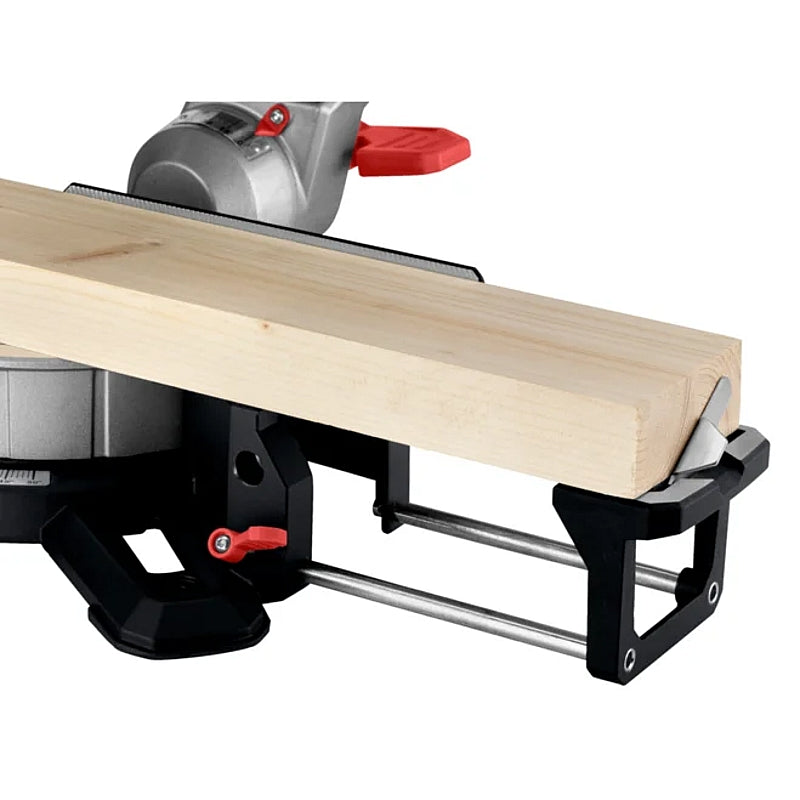

• Extendable Workpiece Supports: Table extensions increase support and can be removed for placement beneath extremely long workpieces.

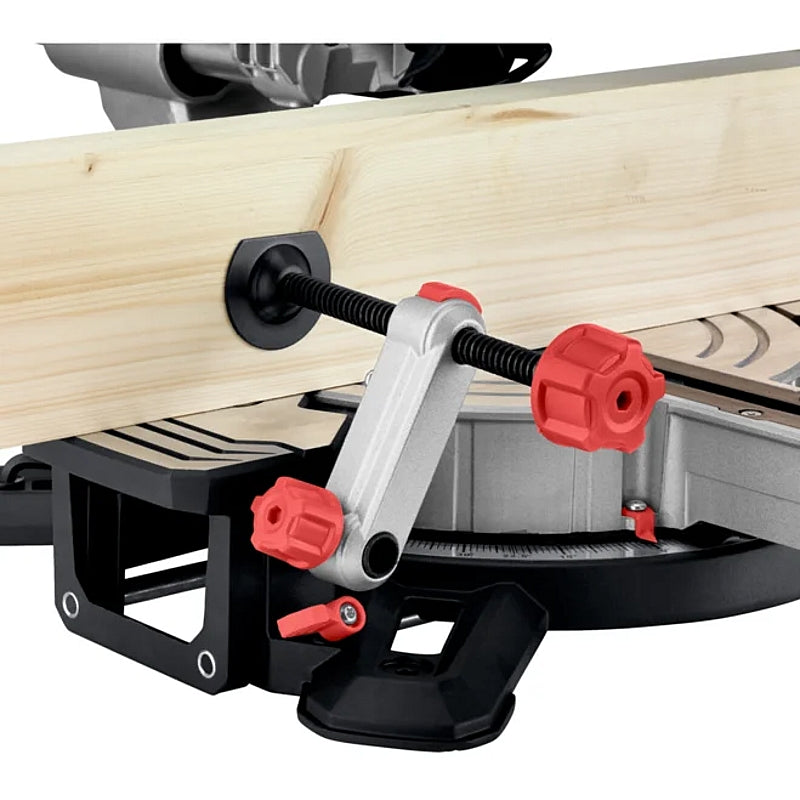

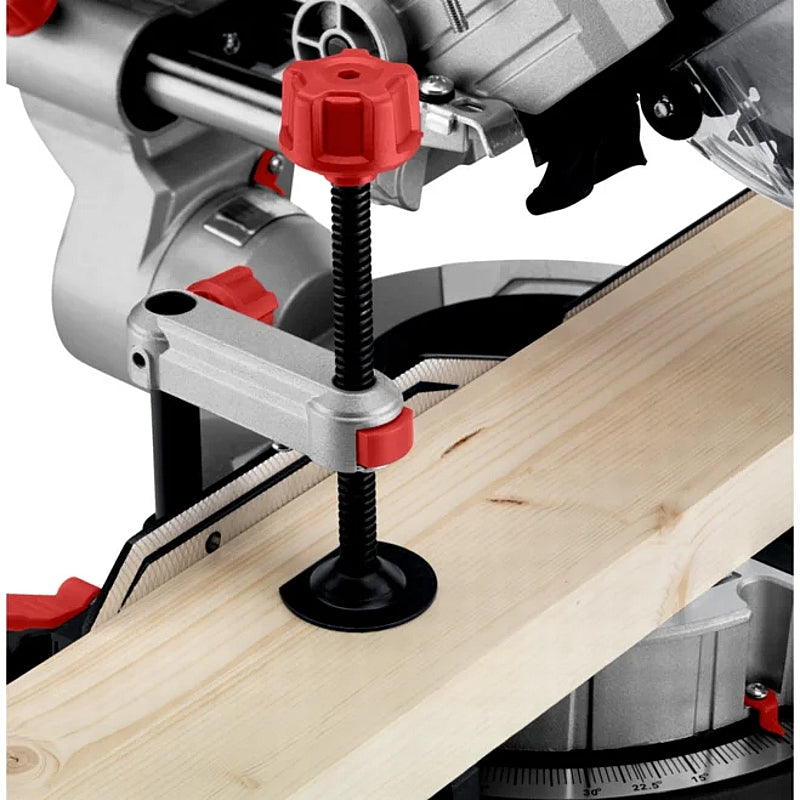

• Quick-Action Material Clamp: Secures the workpiece from the top or front.
• Visible Scales and Controls: All scales and operating elements remain visible from the working position for intuitive operation.
• Ergonomic Carrying Areas: Allow carrying with one or two hands.

Specifications:

Code: 610216000
Model: KS 216 M

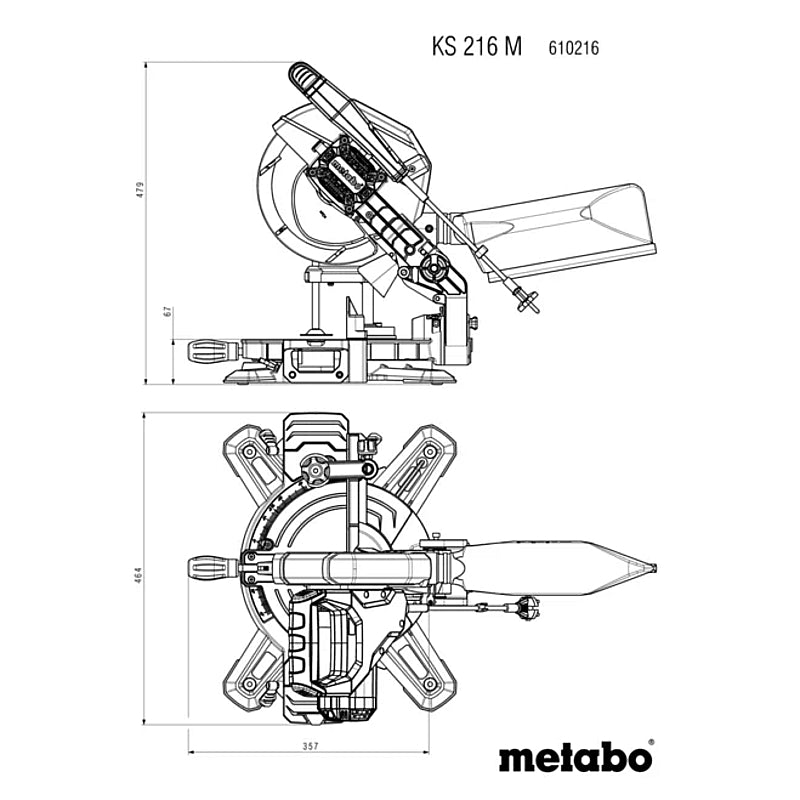

Dimensions: 18.8" × 18.2" × 18.8" (477 × 464 × 479 mm)
Support Surface: 6.1" × 28.54" (155 × 725 mm)
Maximum Cutting Width at 90°: 120 mm
Maximum Cutting Width at 45°: 80 mm
Maximum Cutting Depth at 90°: 60 mm
Maximum Cutting Depth at 45°: 45 mm
Cutting Capacity at 90°/90°: 120 × 60 mm
Cutting Capacity at 45°/45°: 80 × 45 mm
Turntable Adjustment: 47° left / 47° right
Saw Blade Tilt: 47° left / 2° right
Saw Blade Diameter: 8 1/2" (216 mm)
Saw Blade Bore: 1.181" (30 mm)
Rated Input Power S1 100%: 1100 W
Rated Input Power S6 20%: 1350 W
No-Load Speed: 5,000 rpm
Speed at Rated Load: 3,800 rpm
Cutting Speed: 57 m/s
Cutting Line Guide: Precision Cut Line LED shadow line
Construction: Die-cast aluminium
Weight: 19.18 lbs (8.7 kg)
Cable Length: 2 m

Noise Emission:

Sound Pressure Level: 85 dB(A)
Sound Power Level (LwA): 98 dB(A)
Measurement Uncertainty K: 3 dB(A)

Scope of Delivery:

• Metabo KS 216 M Compound Mitre Saw.
• Precision cut wood – classic saw blade, 216 × 30 mm, Z40 (40 teeth).
• 2 table extensions.
• Length guide.
• Material clamp.
• Tool for saw blade changes.
• Chip collection bag.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
