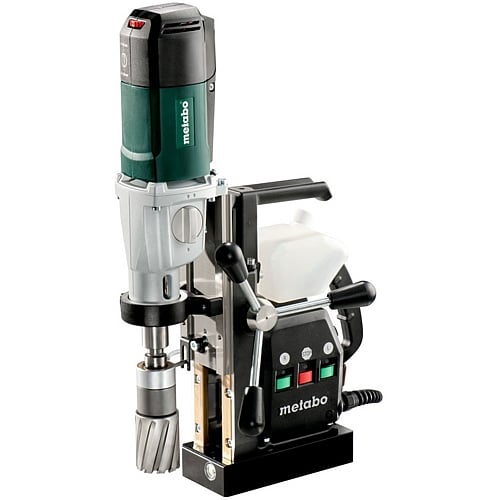

Metabo MAG 50 Magnetic Core Drill, 1200W | 600636500

Metabo MAG 50 Magnetic Core Drill 1200W | 600636500.

Features:

• Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks
• Magnetic base with high holding power permits working on vertical surfaces and overhead
• Robust Metabo marathon motor with internal wiring for long service life
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Clockwise/anti-clockwise rotation with thread cutter
• Durable two-speed gearbox with oil bath lubrication for ideal speeds
• Integrated coolant container for easy to dose internal cooling of the core drill
• Bright LED light for easy alignment in poor light conditions
• Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
• Protective circuit starts motor only if the magnet is activated
• Overload protection: protects the motor from overheating
• Restart protection: prevents unintentional start-up after power supply interruption
• Lockable slide for comfortable tool change
• Handle for easy carrying and lifting
• Resistant mains cable (5 m) with rubber shroud

Technical Data:

Rated input power: 1200 W
Output power: 620 W
Max. drill-Ø with core drill: 50 mm / 2 "
Max. drill-Ø with spiral drill: 20 mm / 3/4 "
Maximum drilling depth: 50 mm / 2 "
Thread cutting: M 16
No-load speeds: 100 - 250 / 200 - 450 rpm
Speeds at rated load: 250 / 450 rpm
Bit retainer: Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Weight: 12.7 kg / 28 lbs
Cable length: 5 m / 16 ft
Torque: 90 / 50 Nm // 797 / 443 in-lbs
Max. depth of feed: 160 mm / 6 5/16 "
Max. magnetic holding force: 12250 N
Dimensions of the magnet base: 90 x 190 mm // 3 9/16 x 7 1/2 "
Height carriage lowest position: 457 mm / 18 "
Height carriage topmost position: 610 mm / 24 "

Vibration:

Drilling in metal: 2.5 m/s²
Uncertainty of measurement K: 1.5 m/s²

Noise Emission:

Sound pressure level: 79 dB(A)
Sound power level (LwA): 92 dB(A)
Uncertainty of measurement K: 3 dB(A)

Scope of Delivery:

• Industrial holder for Weldon shank 19 mm
• Safety strap
• Hexagon socket wrench SW 5
• Swarf protection guard
• Transport case
• Ejector pins 75 and 100 mm
• MK 2 drift key
