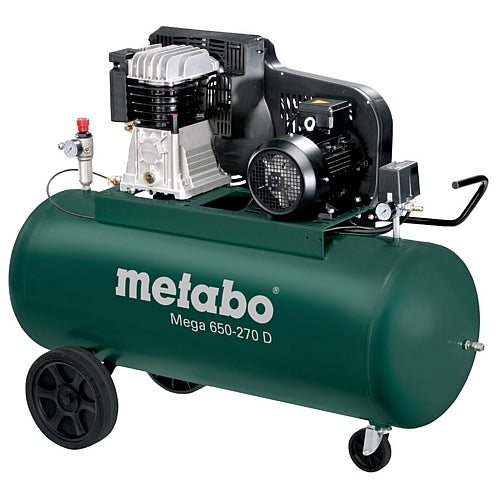

Metabo MEGA 650-270 D Compressor 270L | 601543000

Metabo MEGA 650-270 D Compressor 270L | 601543000.

Features:

• More powerful and robust V-belt compressor for demanding use
• Belt drive for low speeds and a particularly quiet operation
• Two-stage compression for particularly high performance and long service life
• For three-phase current
• Working pressure can be regulated according to application by means of a filter pressure reducer with manometer
• Convenient pressure switch for good cold starting, complete with relief valve
• Additional manometer for displaying the tank pressure
• Overload protection: protects the motor from overheating
• Oil-lubricated 2-cylinder piston compressors for high air supply volume
• Re-cooler for less condensation water formation
• Rubberised, stable wheels and pull handle for mobile use
• 10 year tank warranty against rust

Technical Data:

Suction rate: 650 l/min / 172 gal/h
Filling capacity: 520 l/min / 18.4 cfm
Effective delivery volume (at 80% max. pressure): 450 l/min / 15.9 cfm
Maximum pressure: 11 bar / 160 psi
Mains voltage: 380 - 415 V
Rated input power: 4 kW / 5.5 HP
Maximum speed: 1400 rpm
Tank capacity: 270 l / 71.3 gal
Sound pressure level (LpA): 88 dB(A)
Sound power level (LwA): 97 dB(A)
Dimensions: 1530 x 600 x 1160 mm // 5.1 x 2 x 3.8 ft
Weight: 170 kg / 375 lbs
Cable length: 1.5 m / 5 ft

Scope of Delivery:

• 3 Universal couplings
