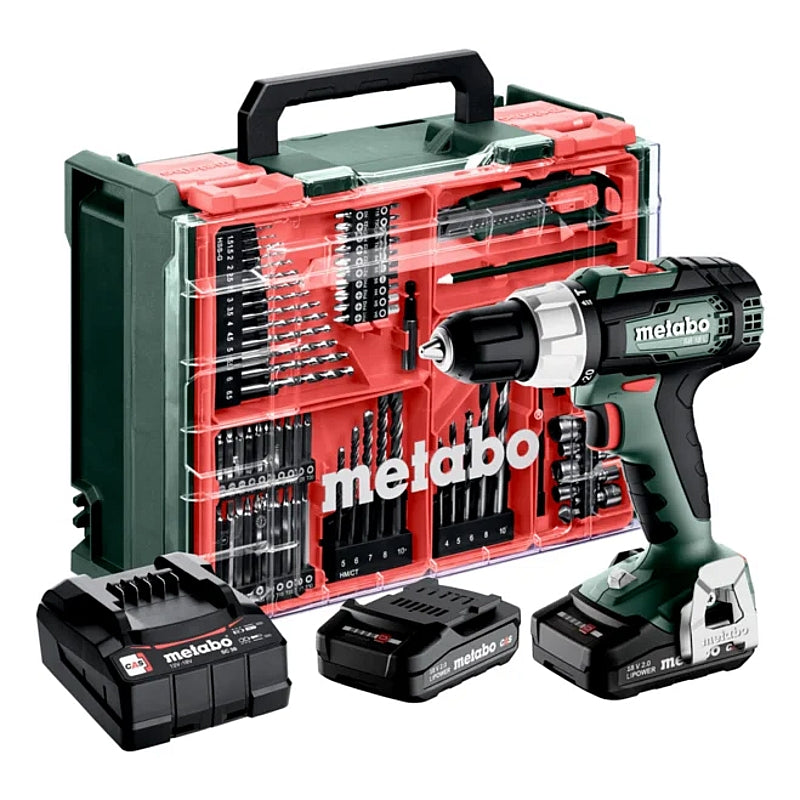

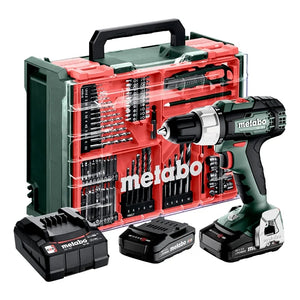

Metabo SB 18 L Set Cordless Combi Drill 2.0Ah Kit & 78-Piece Accessory Set with Carry Case | 614053710

Metabo SB 18 L Set 18V Cordless Combi Drill Kit with 2 × 2.0Ah Batteries & 78-Piece Accessory Set with Carry Case | 614053710.

The Metabo SB 18 L is a reliable, powerful cordless combi drill for standard drilling and screwdriving applications, with a hammer drill function for masonry. It delivers maximum torque of 26 Nm in soft applications and 60 Nm in hard applications, while adjustable torque from 0.7 to 5.5 Nm allows controlled fastening. Two no-load speed ranges of 0–450 and 0–1,850 rpm accommodate different tasks, and the hammer function delivers up to 28,500 impacts per minute. Drilling capacities reach 13 mm in masonry and steel, and 36 mm in softwood. In addition, overload protection protects the motor from overheating, while the integrated LED work light with afterglow illuminates the work area. The belt hook and bit case can mount on either side to suit your preference. This mobile workshop kit includes wood, masonry and HSS drill bits, screwdriver bits in three lengths, sockets, and measuring and marking tools. Furthermore, two 18 V 2.0 Ah LiPOWER battery packs, an SC 36 charger and a plastic carry case complete the kit. Compatibility with the Cordless Alliance System (CAS) allows you to share 18 V battery packs and chargers across participating brands.

Features & Benefits:

• Reliable Drilling and Screwdriving: Provides powerful performance for standard drilling and fastening applications.
• 60 Nm Maximum Hard Torque: Delivers up to 60 Nm of hard torque and 26 Nm of soft torque for a range of fastening tasks.
• Adjustable Torque: Select torque from 0.7 to 5.5 Nm to suit the screwdriving application.
• Two Speed Ranges: Offers no-load speeds of 0–450 and 0–1,850 rpm for different drilling and screwdriving tasks.
• Hammer Drill Function: Delivers up to 28,500 impacts per minute for drilling in masonry.
• Versatile Drilling Capacities: Drills up to 13 mm in masonry and steel, and 36 mm in softwood.
• 78-Piece Accessory Set: Combines drill bits, screwdriver bits, sockets and practical measuring and marking tools in a mobile workshop kit.
• Keyless Chuck: Allows bit changes without a chuck key and accommodates shank diameters from 1.5 to 13 mm.
• Overload Protection: Protects the motor from overheating.
• LED Work Light with Afterglow: Illuminates the work area and provides continued lighting through the afterglow function.
• Flexible Accessory Positioning: Mount the belt hook and bit case on either the right or left side.
• Battery and Charger Kit: Includes two 18 V 2.0 Ah LiPOWER battery packs and an SC 36 charger.
• Plastic Carry Case: Keeps the drill and supplied equipment together for storage and transport.
• CAS Battery Compatibility: Shares 18 V battery packs and chargers with Metabo and other participating Cordless Alliance System brands.

Compatibility:

Compatible with all 18 V battery packs and chargers from participating Cordless Alliance System (CAS) brands within the same voltage class.

For more information about the multi-brand battery platform and participating manufacturers, visit the official Cordless Alliance System (CAS) website.

Specifications:

Code: 614053710
Model: SB 18 L Set
Battery Technology: LiPOWER
Battery Voltage: 18 V
Battery Capacity: 2.0 Ah per battery pack
Maximum Torque, Soft: 230 in-lbs (26 Nm)
Maximum Torque, Hard: 531 in-lbs (60 Nm)
Adjustable Torque: 6.2–48.7 in-lbs (0.7–5.5 Nm)
Maximum Drilling Diameter in Masonry: 1/2" (13 mm)
Maximum Drilling Diameter in Steel: 1/2" (13 mm)
Maximum Drilling Diameter in Softwood: 1 13/32" (36 mm)
No-Load Speed, First Gear: 0–450 rpm
No-Load Speed, Second Gear: 0–1,850 rpm
Maximum Impact Rate: 28,500 bpm
Chuck Type: Keyless chuck
Chuck Capacity: 1/16–1/2" (1.5–13 mm)
Motor Protection: Overload protection against overheating
Work Light: Integrated LED with afterglow function
Belt Hook and Bit Case Mounting: Right or left side
Weight Without Battery Pack: 2.6 lbs (1.2 kg)
Weight With Battery Pack: 3.5 lbs (1.6 kg)

Vibration:

Drilling in Metal: 1.7 m/s²
Drilling in Metal Measurement Uncertainty K: 1.5 m/s²
Impact Drilling in Concrete: 11.8 m/s²
Impact Drilling in Concrete Measurement Uncertainty K: 1.5 m/s²
Screwdriving Without Impact: 0.5 m/s²
Screwdriving Without Impact Measurement Uncertainty K: 1.5 m/s²

Noise Emission:

Sound Pressure Level: 91 dB(A)
Sound Power Level (LwA): 99 dB(A)
Measurement Uncertainty K: 5 dB(A)

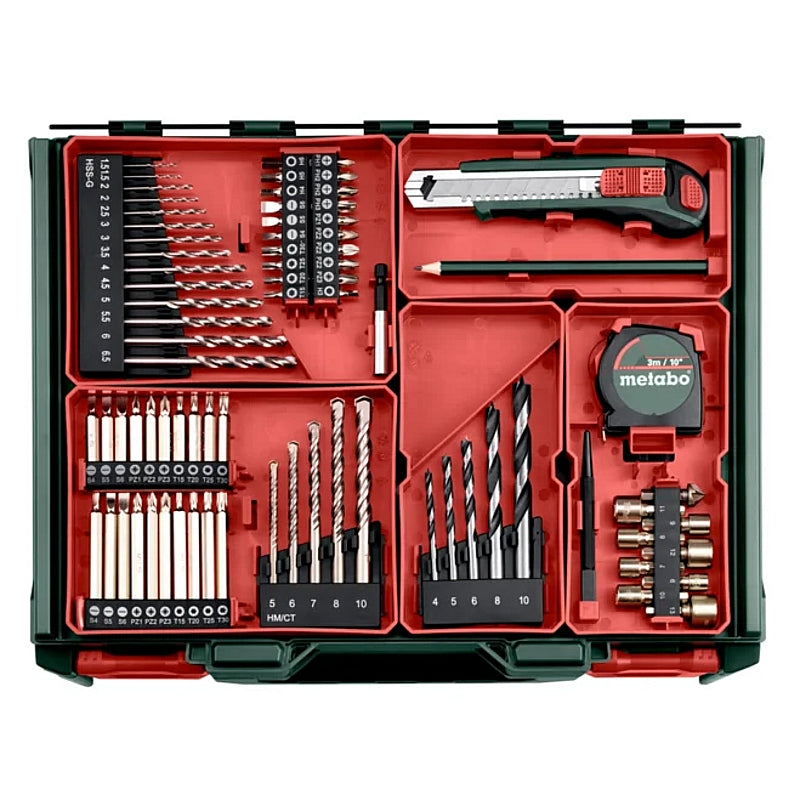

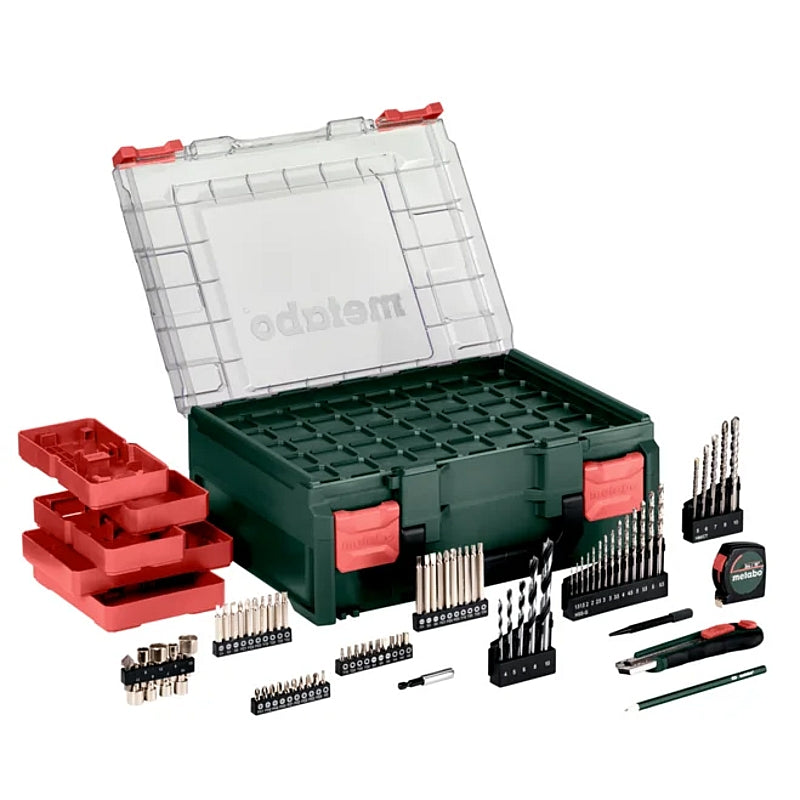

Scope of Delivery:

• Metabo SB 18 L Cordless Combi Drill.
• Keyless chuck.
• Belt hook and bit case.
• 2 × 18 V 2.0 Ah LiPOWER battery packs.
• SC 36 charger.

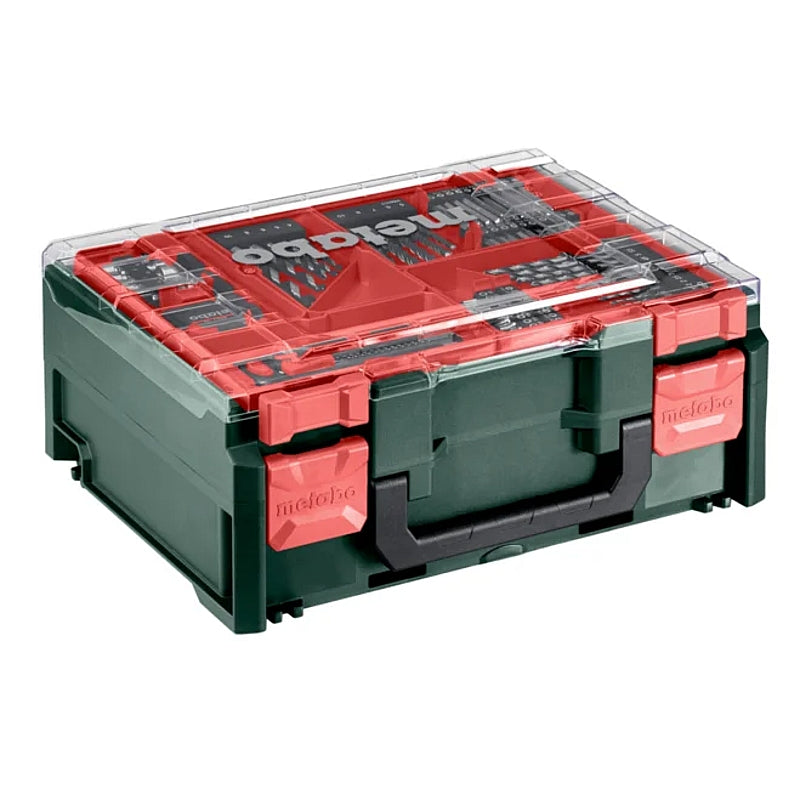

• Plastic carry case.
• 5 wood drill bits: 4, 5, 6, 8 and 10 mm.
• 5 masonry drill bits: 5, 6, 7, 8 and 10 mm.
• 14 HSS drill bits: 1.5, 1.5, 2, 2, 2.5, 3, 3, 3.5, 4, 4.5, 5, 5.5, 6 and 6.5 mm.
• 20 screwdriver bits, 25 mm long: PH1, PH2, PH2, PH3, PZ1, PZ2, PZ2, PZ2, PZ3, H3, H4, H5, H6, T15, T20, T25, T30, S4, S5 and S6.
• 10 screwdriver bits, 50 mm long: S4, S5, S6, PZ1, PZ2, PZ3, T15, T20, T25 and T30.
• 10 screwdriver bits, 75 mm long: S4, S5, S6, PZ1, PZ2, PZ3, T15, T20, T25 and T30.
• Bit holder, 60 mm long.
• 8 sockets: 6, 7, 8, 9, 10, 11, 12 and 13 mm.
• Countersink, 12.7 mm.
• Centring pin, 5 × 100 mm.
• Cutter knife with 2 spare blades.
• Measuring tape, 3 m.
• HB pencil.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
