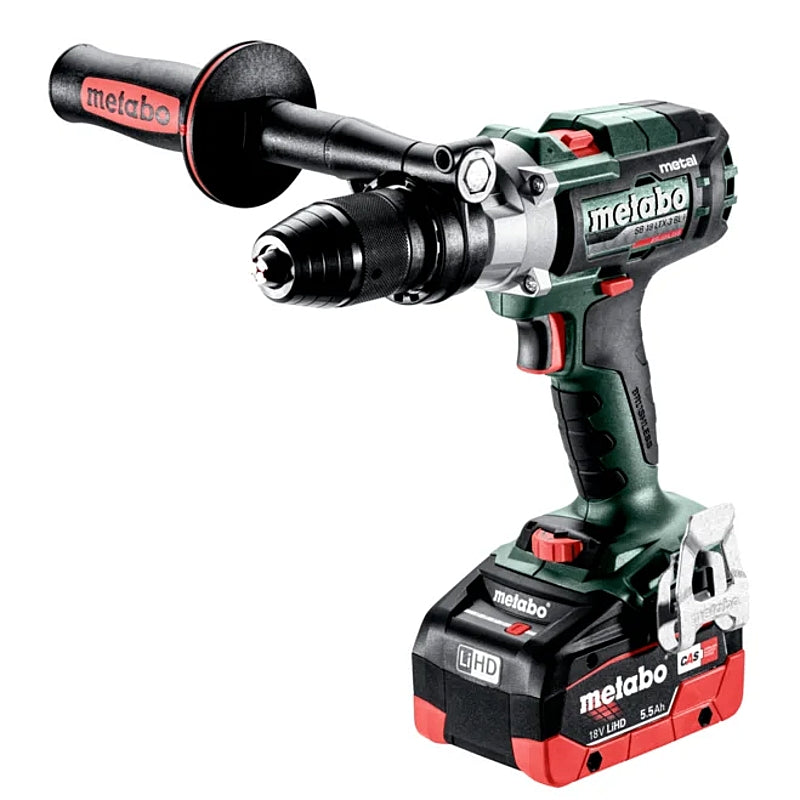

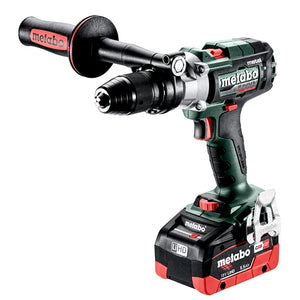

Metabo SB 18 LTX-3 BL I Metal Cordless Combi Drill 5.5Ah Kit | 603183660

Metabo SB 18 LTX-3 BL I Metal 18V Brushless Combi Drill Kit with 2 × 5.5Ah Batteries | 603183660.

The Metabo SB 18 LTX-3 BL I Metal is a powerful three-speed cordless combi drill designed for demanding metalworking applications. It delivers maximum torque of 65 Nm in soft applications and 130 Nm in hard applications, with adjustable torque from 1 to 18 Nm for controlled fastening. Its powerful chuck automatically re-tightens to counter bit slippage and provides a high degree of concentricity. Meanwhile, three no-load speed ranges of 0–450, 0–2,000 and 0–4,000 rpm extend the application range and enable fast drilling progress, particularly in metal. The drill handles diameters of up to 16 mm in steel and 68 mm in softwood, while its hammer function delivers up to 38,000 impacts per minute for drilling in masonry up to 16 mm. The Metabo QuickPlus System enables quick changes between the chuck, bit holder, angle adapter and other compatible attachments for flexible, heavy-duty working. In addition, selectable impuls mode helps remove stubborn or damaged screws and supports spot-drilling on smooth surfaces. The efficient brushless motor provides long battery pack runtime, while Precision Stop electronic torque control supports accurate, delicate work. A robust die-cast aluminium gear housing provides durability, and the magnetic hexagonal spindle recess allows screwdriving without the chuck. Electronic safety shutdown prevents kickback if the drill bit stops unexpectedly, while overload protection protects the motor from overheating. Furthermore, the 43 mm Euro collar supports versatile use, the LED work light with afterglow illuminates the work area, and the belt hook and bit case can mount on either side. This kit includes two 18 V 5.5 Ah LiHD battery packs, an ASC 145 AIR COOLED quick charger and a metaBOX 145 L for transport and storage.

Features & Benefits:

• Powerful Torque Delivery: Provides up to 65 Nm of soft torque and 130 Nm of hard torque for demanding drilling and fastening applications.
• Three-Speed Gearbox: Select from 0–450, 0–2,000 and 0–4,000 rpm to suit the application, with the high-speed third setting enabling faster drilling progress, especially in metal.
• Automatically Re-Tightening Chuck: The powerful chuck counters bit slippage and provides a high degree of concentricity.
• Versatile Drilling Capacities: Drills up to 16 mm in steel, 68 mm in softwood and 16 mm in masonry.
• Hammer Drill Function: Delivers up to 38,000 impacts per minute for drilling in masonry.
• Metabo QuickPlus System: Enables quick changes between the chuck, bit holder, angle adapter and other compatible attachments for flexible, heavy-duty use.
• Selectable Impuls Mode: Helps remove stubborn or damaged screws and supports spot-drilling on smooth surfaces.
• Brushless Motor: Delivers high efficiency, fast work progress and long battery pack runtime.
• Precision Stop: Electronic torque control provides increased precision for delicate working, with adjustable torque from 1 to 18 Nm.
• Durable Gear Housing: Robust die-cast aluminium construction supports durability.
• Magnetic Hexagonal Spindle Recess: Accepts screwdriver bits for working without the chuck.
• Overload Protection: Protects the motor from overheating.
• 43 mm Euro Collar: Supports versatile use.
• Electronic Safety Shutdown: Prevents kickback if the drill bit stops unexpectedly.
• LED Work Light with Afterglow: Illuminates the work area and provides continued lighting through the afterglow function.
• Flexible Accessory Positioning: The belt hook and bit case can attach to either the right or left side.
• Battery and Quick Charger Kit: Includes two 18 V 5.5 Ah LiHD battery packs and an ASC 145 AIR COOLED quick charger.
• metaBOX Transport and Storage: The supplied metaBOX 145 L provides a practical solution for storing and transporting the kit.
• CAS Battery Compatibility: Shares 18 V battery packs and chargers with Metabo and other participating Cordless Alliance System brands.

Compatibility:

Compatible with all 18 V battery packs and chargers from participating Cordless Alliance System (CAS) brands within the same voltage class. The Metabo QuickPlus System supports quick changes between compatible chucks, bit holders, angle adapters and other attachments. The spindle’s magnetic hexagonal recess also accepts screwdriver bits for use without the chuck.

For more information about the multi-brand battery platform and participating manufacturers, visit the official Cordless Alliance System (CAS) website.

Specifications:

Code: 603183660
Model: SB 18 LTX-3 BL I Metal
Battery Voltage: 18 V
Battery Technology: LiHD
Battery Capacity: 5.5 Ah per battery pack
Motor Type: Brushless
Maximum Torque, Soft: 575.3 in-lbs (65 Nm)
Maximum Torque, Hard: 1150.6 in-lbs (130 Nm)
Adjustable Torque: 8.9–159.3 in-lbs (1–18 Nm)
Maximum Drilling Diameter in Masonry: 5/8" (16 mm)
Maximum Drilling Diameter in Steel: 5/8" (16 mm)
Maximum Drilling Diameter in Softwood: 2.68" (68 mm)
Speed Settings: 3
No-Load Speed, First Gear: 0–450 rpm
No-Load Speed, Second Gear: 0–2,000 rpm
No-Load Speed, Third Gear: 0–4,000 rpm
Maximum Impact Rate: 38,000 bpm
Chuck Capacity: 1/16–1/2" (1.5–13 mm)
Chuck Type: Automatically re-tightening Futuro Top keyless chuck
Collar Diameter: 1.69" (43 mm)
Quick-Change System: Metabo QuickPlus
Torque Control: Precision Stop electronic torque control
Selectable Operating Mode: Impuls
Spindle Recess: Magnetic hexagonal recess for screwdriver bits
Gear Housing Material: Die-cast aluminium
Work Light: Integrated LED with afterglow function
Motor Protection: Overload protection against overheating
Safety Function: Electronic shutdown if the drill bit stops unexpectedly
Weight Without Battery Pack: 4.4 lbs (2 kg)
Weight With Battery Pack: 6.6 lbs (3 kg)

Vibration:

Drilling in Metal: 3 m/s²
Drilling in Metal Measurement Uncertainty K: 1.5 m/s²
Impact Drilling in Concrete: 25 m/s²
Impact Drilling in Concrete Measurement Uncertainty K: 1.5 m/s²

Noise Emission:

Sound Pressure Level: 101 dB(A)
Sound Power Level (LwA): 109 dB(A)
Measurement Uncertainty K: 3 dB(A)

Scope of Delivery:

• Metabo SB 18 LTX-3 BL I Metal Cordless Combi Drill.
• Futuro Top keyless chuck.
• Side handle.
• C-wrench.
• 2 × 18 V 5.5 Ah LiHD battery packs.
• ASC 145 AIR COOLED quick charger.
• metaBOX 145 L.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
