Metabo STEB 100 Quick Jigsaw 710W | 601110500

Metabo STEB 100 Quick Jigsaw 710W | 601110500.

The Metabo STEB 100 Quick is a universal jigsaw with a bow-type handle for precise guidance while sawing. Its variable stroke rate, selectable pendulum action and low-lying blade guidance with spring support help deliver accurate cuts to suit the material. With cutting depths of up to 100 mm in wood, 25 mm in non-ferrous metal and 10 mm in sheet steel, it accommodates a range of sawing applications. Meanwhile, electronic stroke-rate control allows material-matched working and maintains an almost constant stroke rate under load. The Metabo Quick system enables tool-free blade changes with automatic blade ejection, while the non-slip soft-grip top handle supports controlled handling. For a clear view of the cutting line, you can select the chip blowing function. Alternatively, connect an all-purpose vacuum cleaner for extraction and lower the non-detachable protective glass to improve extraction effectiveness and provide protection against flying chips. Furthermore, a precision guide rail and guiding device are available separately as accessories.

Features & Benefits:

• Bow-Type Handle: Supports precise guidance while sawing.
• Material-Matched Sawing: Variable stroke rate, pendulum action and low-lying blade guidance with spring support help achieve precise cuts in different materials.
• Four Pendulum Settings: Adapt the pendulum action to suit the material and sawing application.
• Electronic Stroke-Rate Control: Allows customised stroke rates that remain almost constant under load.
• Metabo Quick Blade Changes: Change saw blades without tools, with automatic blade ejection for convenient changes.
• Non-Slip Soft Grip: The soft-grip surface on the top handle supports comfortable, controlled handling.
• Selectable Chip Blower: Clears chips from the cutting line to maintain visibility.

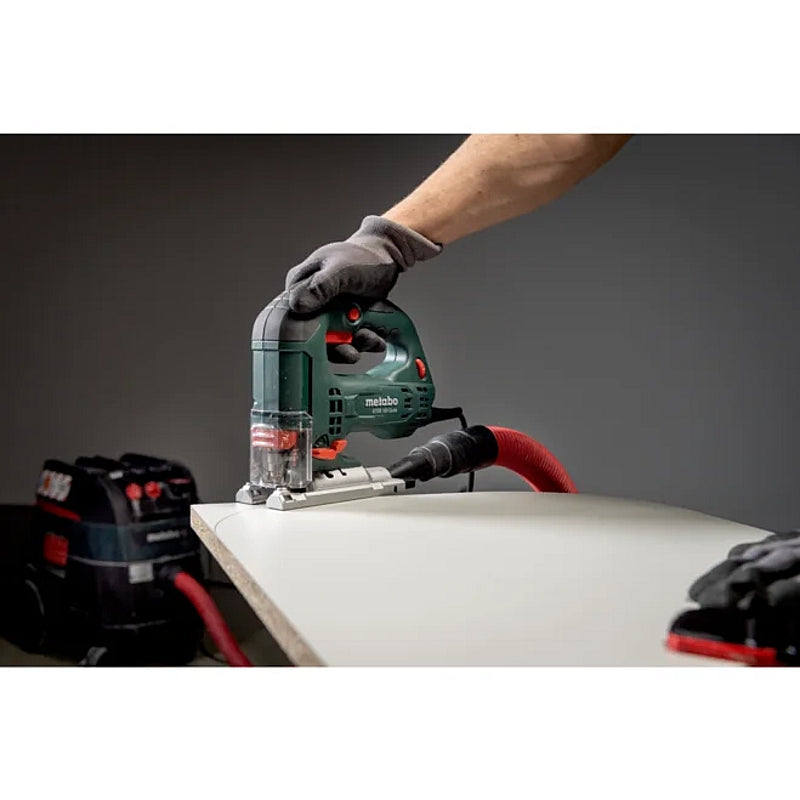

• Vacuum Extraction Connection: Allows connection to an all-purpose vacuum cleaner for extraction.
• Adjustable Protective Glass: The non-detachable glass pushes down for effective extraction and protection against flying chips.
• Swivelling Base: Provides an adjustment range from -45° to +45°.
• Optional Guiding Accessories: A precision guide rail and guiding device are available separately.

Compatibility:

The jigsaw offers an extraction connection for an all-purpose vacuum cleaner. A precision guide rail and guiding device are also available as optional accessories and are not included in the listed scope of delivery.

Specifications:

Code: 601110500
Model: STEB 100 Quick
Rated Input Power: 710 W
Output Power: 470 W
Cutting Depth in Wood: 4" (100 mm)
Cutting Depth in Non-Ferrous Metal: 1" (25 mm)
Cutting Depth in Sheet Steel: 3/8" (10 mm)
Swivel Range: -45° to +45°
Pendulum Stroke Levels: 4
No-Load Stroke Rate: 1,000–3,100 strokes/min
Saw Blade Stroke: 7/8" (22 mm)
Handle Type: Bow-type top handle with non-slip soft-grip surface
Blade Change System: Metabo Quick with automatic blade ejection
Weight Without Power Cable: 4.6 lbs (2.1 kg)
Cable Length: 4 m

Vibration:

Sawing Wood: 13 m/s²
Sawing Wood Measurement Uncertainty K: 1.5 m/s²
Sawing Metal: 13.7 m/s²
Sawing Metal Measurement Uncertainty K: 1.5 m/s²

Noise Emission:

Sound Pressure Level: 89 dB(A)
Sound Power Level (LwA): 97 dB(A)
Measurement Uncertainty K: 5 dB(A)

Scope of Delivery:

• Metabo STEB 100 Quick Jigsaw.
• Extraction nozzles.
• Protective glass.
• Chip guard plates.
• Wood jigsaw blade.
• Hexagonal wrench.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
