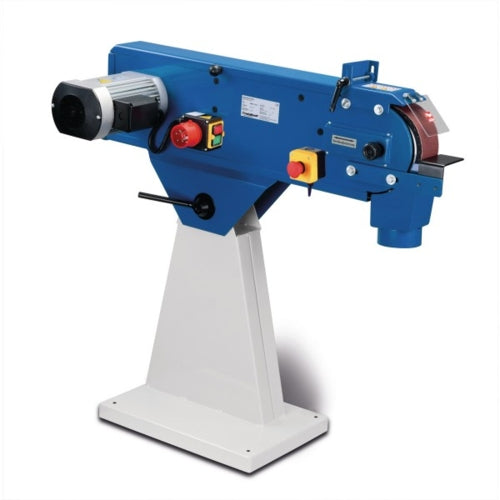

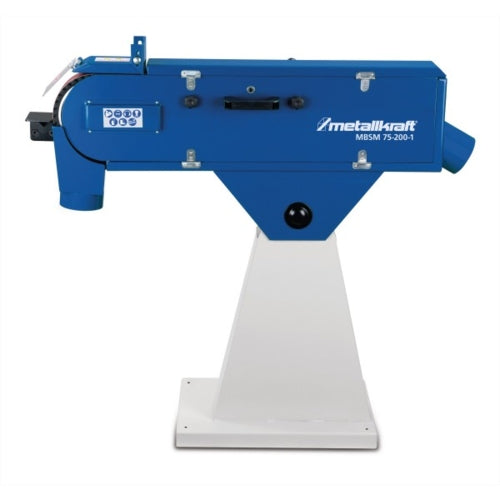

MetallKraft MBSM 75-200-220V Belt Grinding Machine | MK3922070

MetallKraft MBSM 75-200-220V Belt Grinding Machine | MK3922070.

The MetallKraft MBSM 75-200-220V Belt Grinding Machine is engineered for precision and durability, making it ideal for grinding surfaces, edges, and rounding applications. Its powerful motor delivers consistent performance, while the vibration-free operation ensures superior grinding results. With a folding protective screen and quick-release belt system, this machine combines safety and efficiency. The large surface grinding area is enhanced by a foldable upper belt cover, making it versatile for both small and long workpieces. Additionally, its robust design supports operation with or without an extraction unit, thanks to integrated extraction ports.

Features & Benefits:

• Powerful motor for consistent performance and high grinding quality.
• Vibration-free operation for precise results.
• Quick belt changes with a convenient quick-release system.
• Large surface grinding area with a foldable upper belt cover.
• Automatic belt tensioning with a spring-supported system.
• Adjustable belt tracking using a simple adjustment screw.
• Continuous planing surface for grinding long workpieces.
• Can be used with or without an extraction unit, featuring integrated ports.

Specifications:

Power supply: Single Phase
Grinding width: 75 mm
Contact wheel diameter: 200 mm (7.87")
Sanding belt dimensions: 75 x 2000 mm (3" x 78.74")
Belt speed: 14.5 / 29 m/s
Electrical connection: 230 V / 50 Hz
Motor power: 1.5 / 2.2 kW
Extraction nozzle diameter: 100 mm (3.94")
Dimensions (L x W x H): 1070 x 340 x 950 mm (42.13" x 13.39" x 37.40")
Weight: 72 kg (158.73 lbs)

Scope of Delivery:

• MetallKraft MBSM 75-200-220V Belt Grinding Machine

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
