Optimum Drill Machine Geared Head 50M | OPTIB50GSM

Optimum Drill Machine Geared Head 50M | OPTIB50GSM
R 232,879.00 ZAR
R 232,879.00 ZAR
Sale Sold out
VAT included.

SKU:UPP-OPTIB50GSM
View Product details
product-img

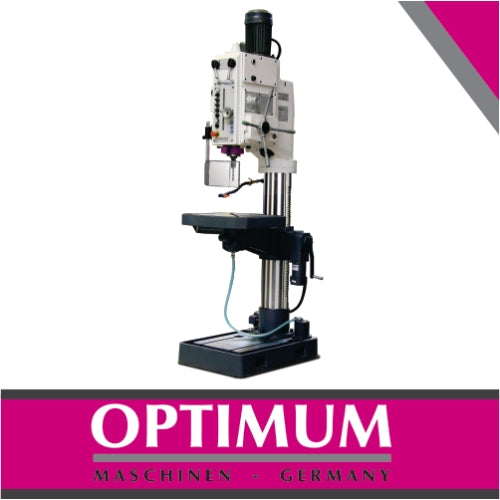

Optimum Drill Machine Geared Head 50M | OPTIB50GSM
R 232,879.00 ZAR
R 232,879.00 ZAR
VAT included.

Heavy gear drilling machine with coolant system and threading mechanism as well as automatic spindle sleeve feed

Technical Specifications

Electrical connection 400 V / 3 Ph ~50 Hz
Total connected load 2.4 / 3.0 kW
Motor coolant pump 40 W
Drilling capacity in steel (S235JR) 50 mm
Continuous drilling cap. steel 45 mm
Thread cutting in steel (S235JR) M 42
Throat depth 375 mm
Spindle stroke 230 mm
Spindle seat MT 4
Spindle sleeve feed 6 steps, 0.05-0.3 mm/U
Spindle speeds 54 - 2,090 min-1
Number of steps 18 steps
Table work surface length x width 600 x 600 mm
T-slot size 18 mm, diagonal
Drilling table slewable and rotatable /-90 degree
Distance spindle - drilling table (max.) 800 mm
Load drilling table 300 kg
Distance spindle - stand max. 1,300 mm
Stand work surface L x W 600 x 520 mm
Stand T-slot size 18 mm
Stand Number of T-slots 2
Stand T-Slots distance 280 mm
Column diameter 200 mm
Length x width x height 985 x 775 x 2,460 mm
Total weight 950 kg

Description

  • Heavy gear drilling machine with coolant system and threading mechanism as well as automatic spindle sleeve feed
  • Heavy, solid cast iron construction
  • Very smooth running due to ground oil-quenched gear wheels
  • High true running accuracy due to hardened and ground work spindle
  • Two-stage driving motor
  • Automatic toothed wheel lubrication via oil pump
  • Threading unit
  • Lockable main switch and motor protection switch
  • Machine luminaire integrated in the drill head

Automatic spindle sleeve feed

  • For deep drilling or pocket hole drilling, the coupler of the automatic spindle sleeve feed can be opened or closed at any time by actuating the spindle feed switch

Features:

Integrated drill drift

  • Easy tool change due to ejection mechanism

Spindle sleeve fine feed

  • Via handwheel

Chuck guard

  • Best possible protection of the user
  • Height-adjustable
  • Micro switch

Drilling table

  • Largely dimensioned
  • Solid
  • Precisely worked
  • Transversally running T-slots
  • Heavily ribbed at the rear side
  • ± 90° Rotation of 360° through it's own axis and about the column

Casting column

  • Thick-walled
  • High smooth running and stability
  • Column diameter 200 mm

Table height adjustment

  • Motor driven
  • Traverse speed 450 mm/min.

Coolant equipment

  • Coolant tank integrated in the base plate
  • Tank capacity 5 litres
  • Delivery volume 2 l/min.

Chip filter

  • cleans the coolant from rough components
  • according to the machine directive

Base plate

  • Usable as a working surface for extra high workpieces due to the  rotatable drilling table
  • Solid
  • Parallel running T-slots
  • Precisely machined surface

Heavy, solid cast iron construction
950 kg
Smooth running and stable

Delivery Information

  • Quick-action drill chuck 1 - 16 mm
  • Morse taper MT 4/B16
  • T-slots
