• Micro-Tec Lathe Opti D240X500 | BL3425001
1 1

Optimum

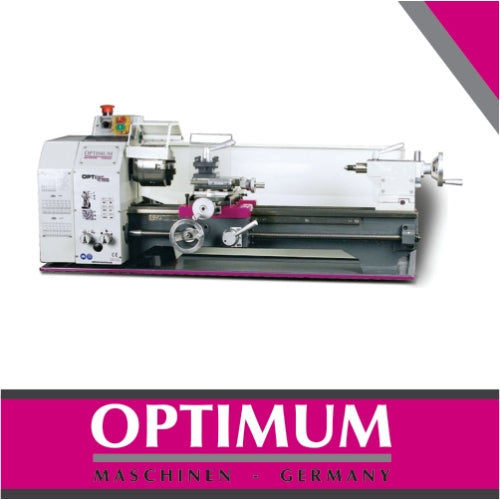

Optimum Lathe Opti D240X500 | BL3425001

Optimum Lathe Opti D240X500 | BL3425001
R 40,969.00 ZAR
R 40,969.00 ZAR
Sale Sold out
VAT included.

SKU:UPP-BL3425001

Availability : Low stock: 1 left
Best Selling Products Booster Cables Lathes New Arrivals Power Tool Combo Sets
View Product details
product-img
Optimum Lathe Opti D240X500 | BL3425001
R 40,969.00 ZAR
R 40,969.00 ZAR
VAT included.

Lead screw lathe with feed gear for demanding users

Lathes with Vario and conventional drive

Technical Specifications

Connection 230 V / 1 Ph ~50 Hz
Driving motor spindle 750 W
Spindle taper MT 4
Spindle hole
Spindle seat Short taper
Quadruple tool holder Height max. 13 mm
Centre height 125 mm
Centre width 550 mm
Turning Ø over lathe bed 250 mm
Bed width 135 mm
Spindle speed 125 - 2,000 min-1
Number of steps 6 steps
Travel top slide 70 mm
Travel cross slide 110 mm
Longitudinal feed in the range of 0.07 - 0.4 mm/U
Pitch - Metric in the range of 0.2 - 4 mm mm/U
Pitch - Inch in the range of 56 - 8 Gg/1
Tailstock seat MT 2
Tailstock - sleeve travel 65 mm
Dimensions (L x W x H) 1,250 x 585 x 475 mm
Net weight 125 kg

Description

  • Lead screw lathes with feed gear for demanding users
  • Precise manufacturing
  • Powerful, maintenance free motor
  • Heavily ribbed prism bed made of grey cast iron, inductively hardened and precision ground
  • Hardened and ground bed guideways
  • Guaranteed true running accuracy of the spindle nose better than 0.009 mm
  • True running accuracy of the lathe chuck better than 0.04 mm
  • Automatic longitudinal/leading spindle drive
  • With leading spindle for threading or automatic longitudinal turning
  • Right-/left-handed rotation switchable on
  • Leading spindle run on two porous bearings
  • Handwheels on the slide with adjustable precision scaling of 0.04/0.01 mm
  • Change gear kit for thread cutting
  • Thrust bearing
  • Emergency-stop push button
  • Fully equipped machine, the user can immediately start to work productively

TU 2506 V

  • Infinitely variable speed control for brushless motor
  • Smooth and high performance DC drive with
    excellent control characteristics
  • High-precision tool chuck for higher speeds
  • Speed change easily adjustable via potentiometer
  • Digital speed display

Features:


Slide

  • Quadruplicate tool holder
  • All guideways adjustable via V-ledges free of play
  • Rolled trapezoid spindles
  • Chip protection at the top slide
  • Milling machine BF20V mountable
  • Top slide adjustable on cross slide

Tailstock

  • Adjustable by ± 5 mm for taper turning
  • Tailstock spindle sleeve and handwheel with adjustable precision scaling
    of 0.02 mm
  • Rapid and easy adjustment of the tailstock by means of a clamping lever

Main spindle

  • Hardened and with readjustable precision tapper roller bearings
  • Two taper roller bearing of P5 quality
  • Short taper
  • Hardened spindle nose with a spindle hole of Ø 26 mm

Feed gear

  • Smooth running
  • Rounded toothed wheels
  • Running in the oil bath

TU 2506V
Powerful Brushless drive

  • Particularly smooth running
  • Nearly constant torque over the entire speed range
  • High power output

Delivery Information

  • 3-jaw lathe chuck Ø 125 mm
  • Fixed center MT 2 / MT 4
  • HSS lathe chisel
  • Quadruple tool holder
  • Change gear kit
  • Operating tool
