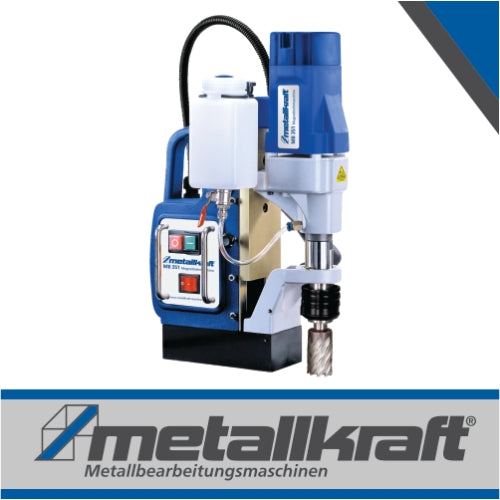

Metalkraft Magnetic Base Drilling Machine 35mm | MB351

Metalkraft Magnetic Base Drilling Machine 35mm | MB351
R 14,349.00 ZAR
R 14,349.00 ZAR
Sale Sold out
VAT included.

SKU:UPP-MB351

Availability : Low stock: 6 left at the External Warehouse!
Best Selling Products Magnetic Base Core Drills New Arrivals
View Product details
product-img
Metalkraft Magnetic Base Drilling Machine 35mm | MB351
R 14,349.00 ZAR
R 14,349.00 ZAR
VAT included.

Magnetic Drilling Machine

Technical Specifications

Max. drill Ø / Core drilling 35 mm
Max. drilling depth / Core drilling 50 mm
Max. drill Ø / Full drilling adapter and drill chuck 13 mm
Max. drilling depth / Full drilling adapter and drill chuck 140 mm
Spindle chuck M 27
Weldon shaft holder 19 mm
Speed under load 330 rpm
Motor output 1.1 kW
Electrical connections 230 V
Phase(s) 1 Ph
Kind of current ~
Mains frequency 50 Hz
Magnetic holding force 15000 N
Magnetic foot dimensions 165 x 80 mm
Max. dimension 450 x 330 x 260 mm
Weight 12.6 kg
Sound pressure level 91.5 dB(A)
Sound power level 102.5 dB(A)
Uncertainty of measurement K 3 dB(A)
Vibration

Description

  • High-quality magnetic core drilling machines for versatile use. Drilling large diameters economically and rapidly.
  • For core drills with 19 mm Weldon shaft
  • Stable drilling guidance thanks to long and especially deep-mounted spindle sleeve guidance
  • Device is earthed and double isolated, hence ideal for building sites
  • High magnetic holding force
  • Highest-quality design
  • The coolant is routed through the drill
  • With quick-release chuck for conveniently replacing the core drills
  • Conversion from core to full drilling in just a few actions
  • Safe and reliable function

Features:

  • One speed
  • With quick-release chuck
  • With 1100 Watt motor
  • Quick-release chuck
  • Conversion from core to full drilling with just a few actions

Delivery Information

  • Coolant tank and coolant line
  • Protection device
  • Operating tool
  • Plastic carrying case
  • Chain
  • MB 754 also with clearing cotter
