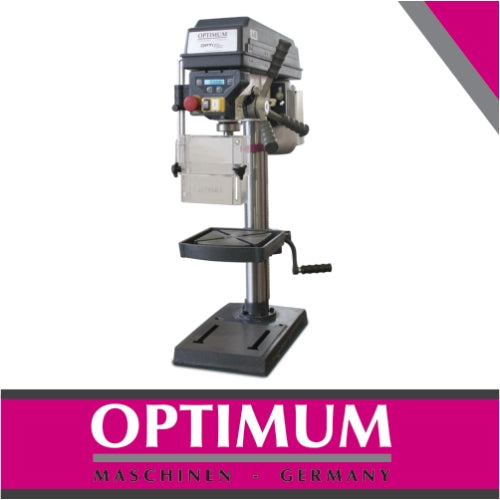

Optimum Optidrill D17Pro 230V/1Ph Drilling | OPTI D17 PRO
R 14,369.00 ZAR
R 14,369.00 ZAR
VAT included.

OPTIdrill D 17Pro

Drill Press

Drilling machines with V-belt

Technical Specification

Dimensions and weights
Column diameter 60 mm
Length 565 mm
Width / depth 275 mm
height 840 mm
Weight approx. 41.5 kg
Drilling performance
Drilling performance steel (S235JR) 16 mm
Continuous drilling performance steel (S235JR) 12 mm
Drilling table
Workspace length 235 mm
Workspace width 220 mm
T-groove size 12 mm
rotation 360 °
Angle 45 °
Max. Distance spindle - drilling table 325 mm
Electric Data
Drive motor output 0.5 kW
Supply voltage 230V
Mains frequency 50 Hz
Machine base
Max. Distance spindle - machine base 530 mm
Work area length 220 mm
Work area width 230 mm
Machine base T-groove size 16 mm
Machine base T-groove number 2
Machine base T-groove spacing 148 mm
Speed ​​range
Speed ​​range 500 - 2520 min¯¹
Number of gears 5 stages
Spindle
Quill stroke 65 mm
Chuck chuck MT 2
Reach 152 mm
VPE 1

Description

  • Industrial engine
  • Easy to use safety switch according to IP 54
  • Digital drilling depth and speed indicator integrated in the housing
  • Separate emergency stop impact switch
  • Precision Spindle bore
  • Safety electronics in 24 V DC
  • Guaranteed concentricity less than 0.02 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High quality keyless chuck
  • Depth stop
  • Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
  • V-belt cover with safety switch
  • One piece cast aluminum die-cast quill lever with softgrip handles
  • Large, height-adjustable protective screen with safety switch
  • Heavy version of the entire machine

Scope of Delivery

  • Keyless chuck 1 - 16 mm
  • Morse cone MK 2 / B16
  • T-nuts
