Optimum Optidrill D33Pro 400V/3Ph Drilling Machine | OPTI D33 PRO

Optimum Optidrill D33Pro 400V/3Ph Drilling Machine | OPTI D33 PRO
R 33,349.00 ZAR
R 33,349.00 ZAR
Sale Sold out
VAT included.

SKU:UPP-OPTI D33 PRO
Drill Presses
View Product details
product-img
Optimum Optidrill D33Pro 400V/3Ph Drilling Machine | OPTI D33 PRO
R 33,349.00 ZAR
R 33,349.00 ZAR
VAT included.

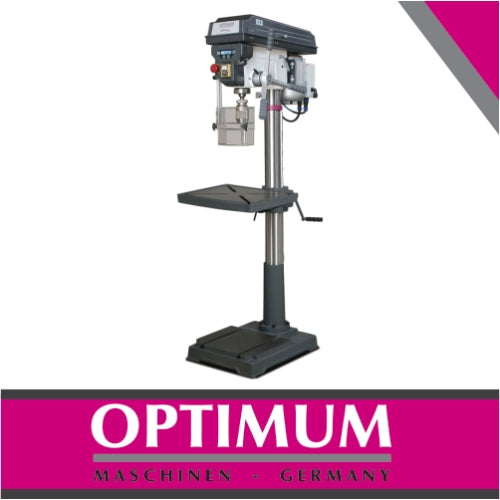

OPTIdrill D 33Pro

Drill Press

Drilling machines with V-belt

Technical Specification

Dimensions and weights
Column diameter 92 mm
Length 755 mm
Width / depth 440 mm
height 1705 mm
Weight approx. 137 kg
Drilling performance
Drilling performance steel (S235JR) 30 mm
Continuous drilling performance steel (S235JR) 25 mm
Drilling table
Workspace length 475 mm
Workspace width 425 mm
T-groove size 14 mm
rotation 360 °
Angle 45 °
Max. Distance spindle - drilling table 695 mm
Electric Data
Drive motor output 1.1 kW
Supply voltage 400V
Mains frequency 50 Hz
Machine base
Max. Distance spindle - machine base 1180 mm
Work area length 410 mm
Work area width 325 mm
Machine base T-groove size 16 mm
Machine base T-groove number 2
Machine base T-groove spacing 250 mm
Speed ​​range
Speed ​​range 120 - 1810 min¯¹
Number of gears 9 stages
Spindle
Quill stroke 120 mm
Chuck chuck MT4
Reach 254 mm
VPE 1

Description

  • Industrial engine
  • Easy to use safety switch according to IP 54
  • Digital drilling depth and speed indicator integrated in the housing
  • Separate emergency stop impact switch
  • Precision Spindle bore
  • Safety electronics in 24 V DC
  • Guaranteed concentricity less than 0.02 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High quality keyless chuck
  • Depth stop
  • Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
  • V-belt cover with safety switch
  • One piece cast aluminum die-cast quill lever with softgrip handles
  • Large, height-adjustable protective screen with safety switch
  • Heavy version of the entire machine
  • D 33Pro
    • Massive, large base plate with T-slots, strongly ribbed on the back

Scope of Delivery

  • Keyless chuck 1 - 16 mm
  • Morse cone MK 4 / B16
  • T-nuts
  • Set Special including Machine vice BMS 150
