Milescrat Compact Sub Base Router Attachement | 1225

Milescraft CompactSubBase Router Attachment | 0821225.

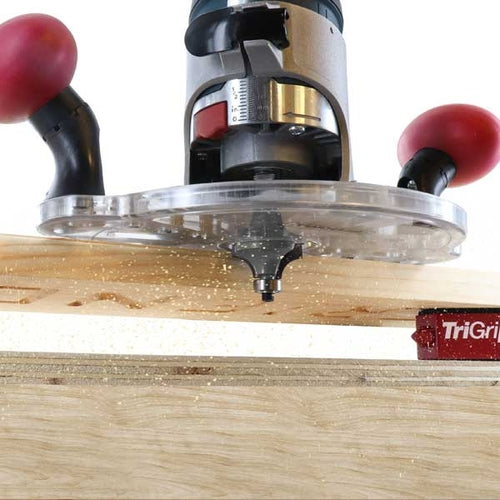

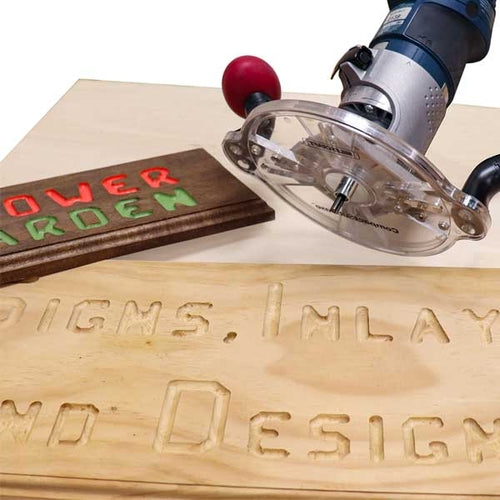

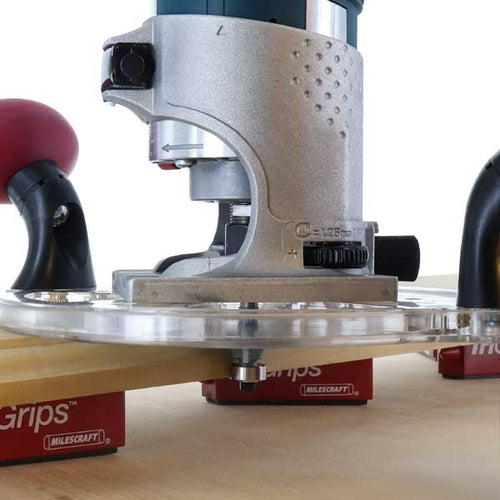

The CompactSubBase™ is ideal for edge routing, template routing, mortise routing and more. With a 6-3/4″ (170mm) diameter and integral handles, it provides improved stability and control over the small base plates provided on compact routers. This attachment is compatible with all compact and trim routers, making it the perfect accessory for your routing applications.

CompactSubBase™

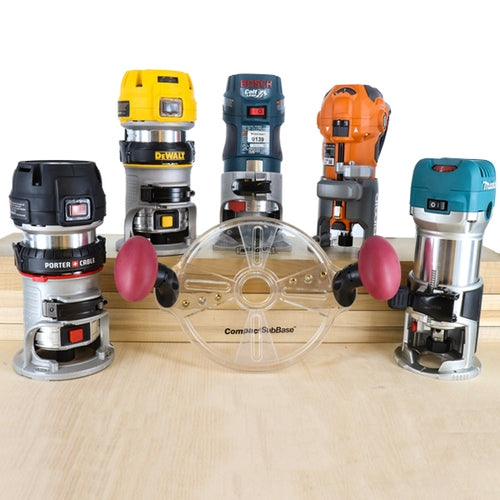

• Compatible with all trim and compact routers
• The base is compatible with standard 1-3/16″ (30.2mm) diameter bushings

Adjustable Mounting Inserts

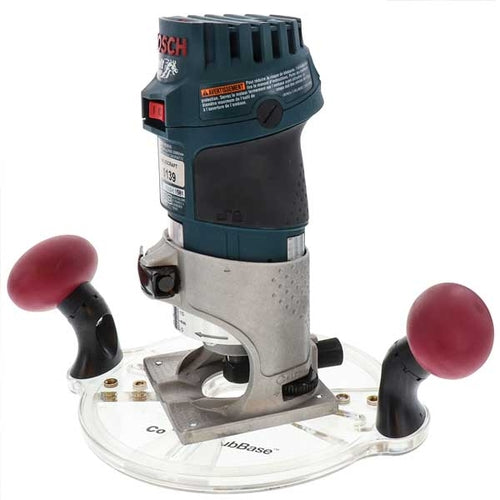

• Universal mounting inserts used to mount your router to the base

Comfort Grip Handles

• 360° rotational comfort grip handles, for maximum comfort while routing

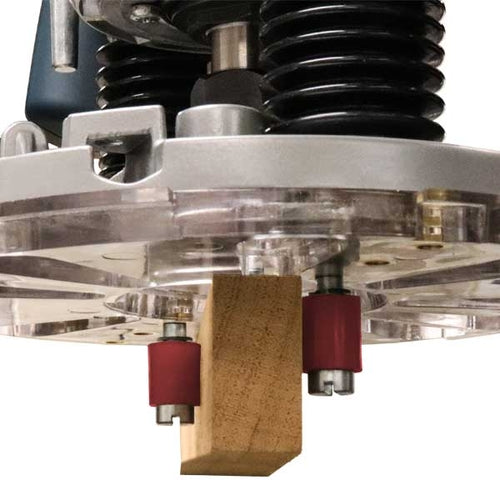

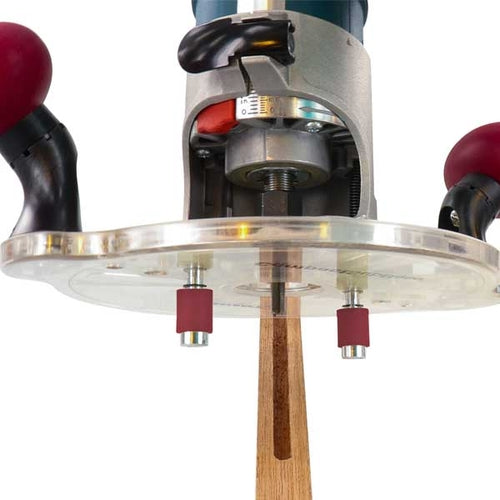

Mortise Pins

• Two mortise pins included, for cutting mortises in your workpiece
• There are two mortise pin mounting locations, depending on the thickness of your material

Technical Data:

Base Diameter: 6-3/4" (170mm)
Center Hole: 1-3/16" (30.2mm) diameter
Centering Pin: Designed to fit 1/4", 6mm and 8mm collets

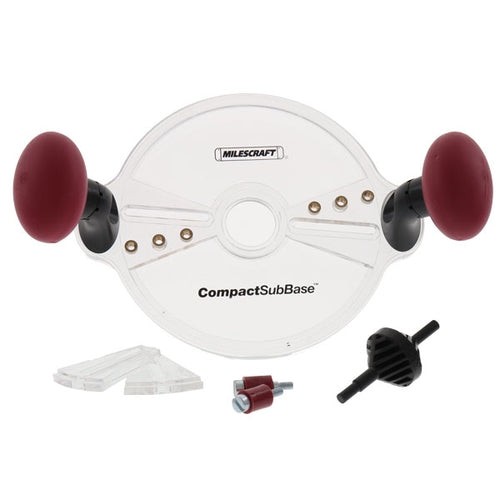

Includes: CompactSubBase™, Base Cover, Adjustable Mounting Inserts (2), Handles (2), Centering Pin (1), Mortise Pins (2), Mounting Hardware and Manual
Material: Durable polycarbonate
Weight: 1 lb.
