Milescraft DrillFence, Metal Edge Guide for DrillMatePRO (1348) | 1349

Milescraft DrillFence, Metal Edge Guide for DrillMatePRO (1348) | 1349.

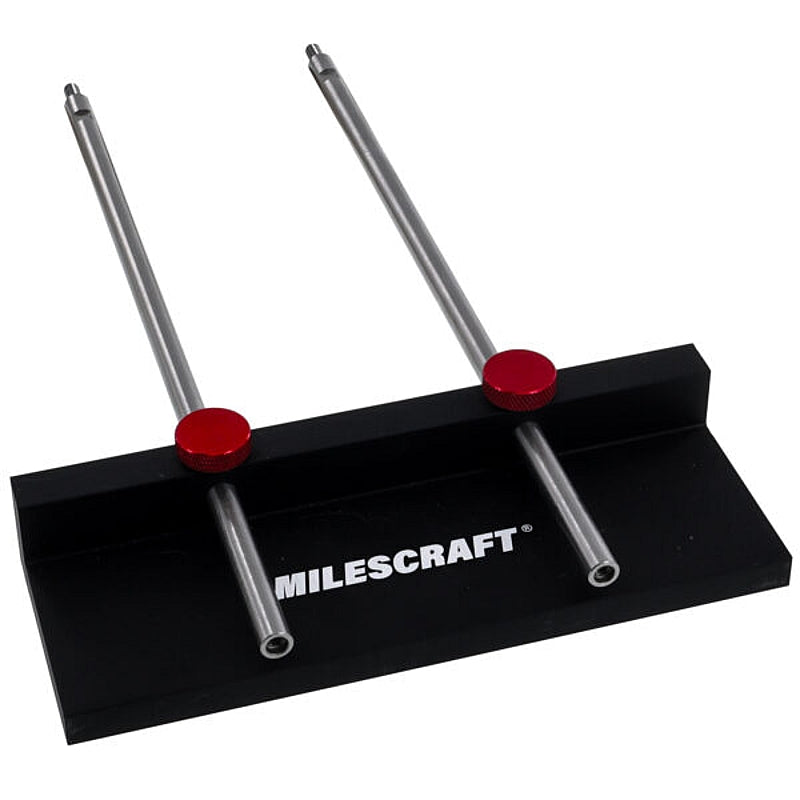

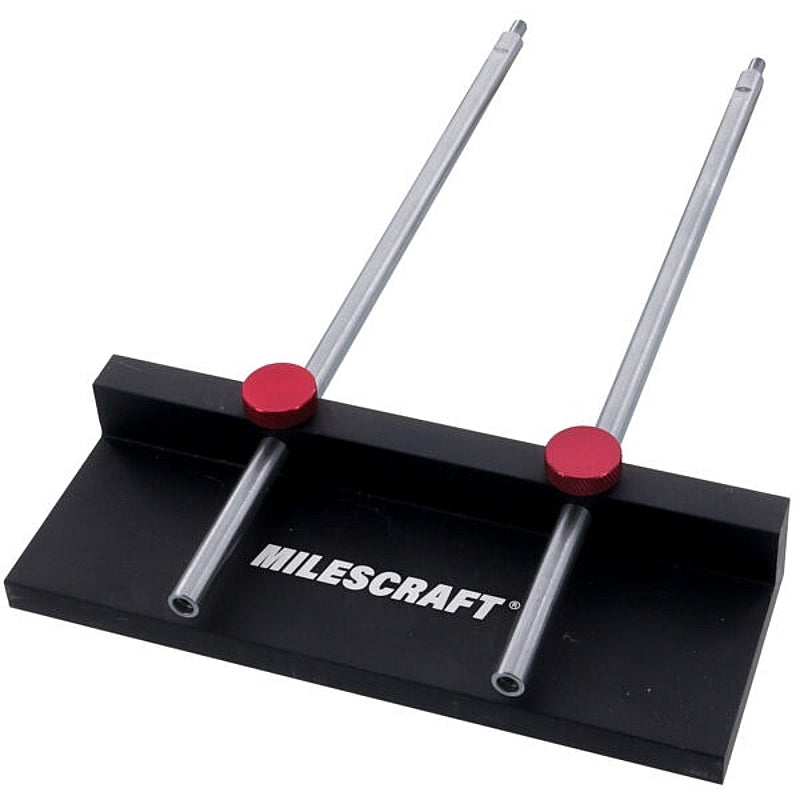

The Milescraft DrillFence™ is a purpose-built metal edge guide developed exclusively for use with the 1348 DrillMatePRO™. Designed to enhance accuracy and consistency, it allows users to drill a series of holes at the same, repeatable distance from the edge of a workpiece.

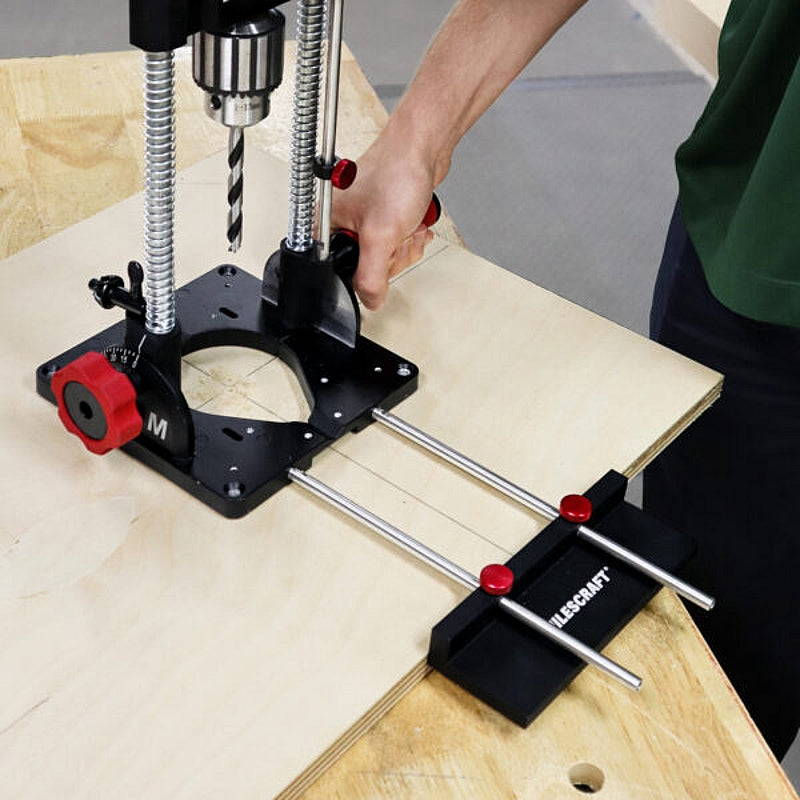

Moreover, the all-metal construction significantly reduces flex during operation, while the wide edge guide maintains solid contact with the workpiece to prevent movement while drilling. This design ensures precise alignment, particularly when working along board edges.

In addition, the DrillFence™ supports drilling distances from 1-7/16" to 12-5/8" (37 mm to 320 mm) from the edge, offering excellent versatility. For applications involving wide boards, the system allows optional extension rods to be added end-to-end, thereby expanding the drilling range as required.

Features & Benefits:

• All-Metal Construction: Reduces flexing to keep holes consistently spaced from the edge.
• Wide Metal Edge Guide: Maintains solid contact with the workpiece to prevent movement while drilling.

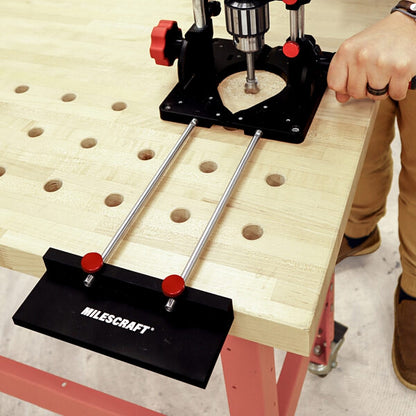

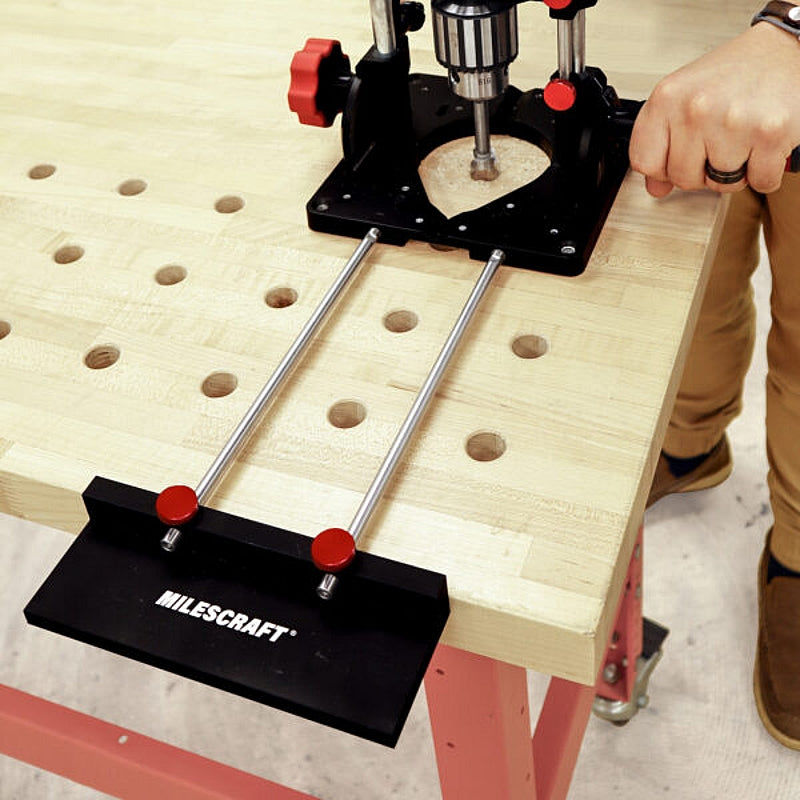

• Repeatable Edge Drilling: Allows series of holes to be drilled at a consistent distance from the edge.
• Wide Drilling Range: Supports drilling from 1-7/16" to 12-5/8" (37 mm to 320 mm) from the board edge.
• Expandable System: Compatible with optional extension rods to increase reach for wider materials.
• Exclusive Compatibility: Designed specifically for use with the Milescraft DrillMatePRO™.

Specifications:

• Code: 1349
• Barcode: Not provided
• Fence Material: Machined Aluminium
• Guide Rod Material: Stainless Steel
• Drilling Range: 1-7/16" – 12-5/8" (37 mm – 320 mm)
• Expanded Range: As required with additional extension rods
• Fence Width: 7-1/8" (180.5 mm)
• Guide Rod Thickness: 5/16" (8 mm)
• Guide Rod Length: 9-13/16" (250 mm)
• Guide Rod Thread: M5 × 0.8
• Guide Rod Spacing: 3-5/32" (80 mm)

Scope of Delivery:

• Milescraft DrillFence™ Metal Edge Guide

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
