Milescraft Hinge Mate 300 Door Mortice Kit | 1213

Milescraft Hinge Mate 300 Door Mortice Kit | 1213.

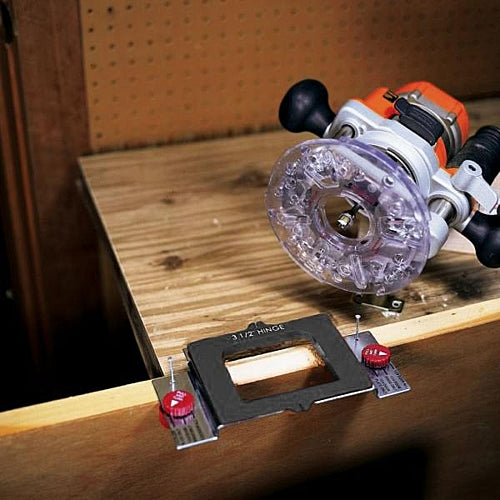

Increase security and privacy in your home by replacing doors without damaging the door or jamb with the HingeMate300™. By routing matching mortises for hinges, strike plates, and latch plates into the door and jamb, you won’t have to tear a hole in the wall just to hang a better wooden door.

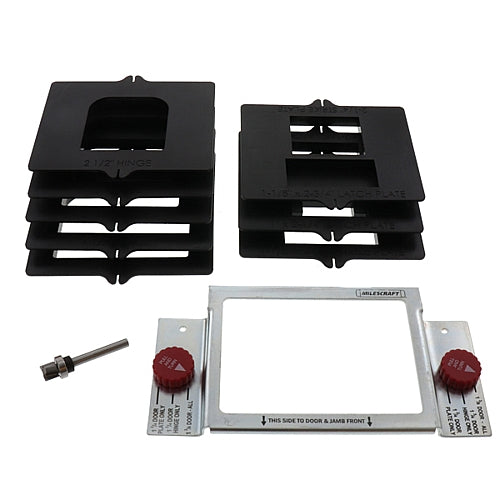

Steel Template Frame:

• Durable steel frame with adjustable cams allow for 1-3/4” and 1-3/8” door settings
• Can be mounted to both door and jamb

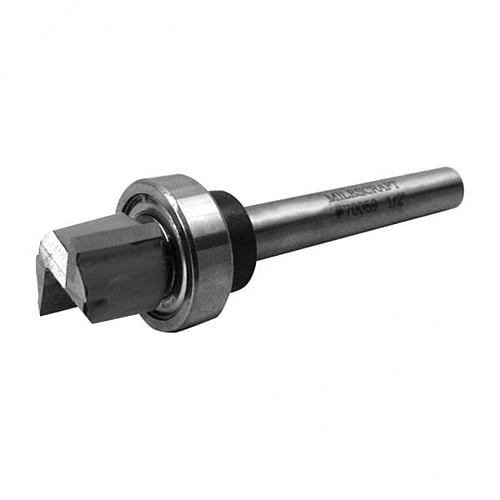

1/2” Router Bit Included:

• Tip made of durable tungsten carbide
• Router bit with ball bearing eliminates the need for a bushing

Templates:

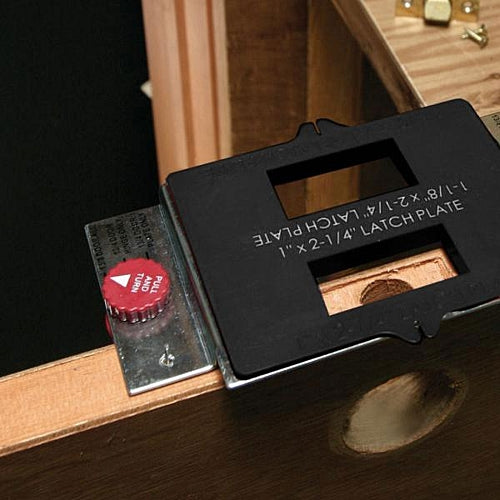

• Contains templates needed to rout hinge, strike plate, and latch plate mortises
• Rotate template to achieve 5/8” radius or 1/4″ radius

*Some chiseling required for templates with square corners. CornerChisel™ sold separately.

Technical Data:

Template Frame Material: Steel
Template Material: ABS Plastic
Includes: 1/2" router bit
Router Bit Set Screw, Hex Size: 1.5mm
Hinge Template Sizes: 2-1/2", 3", 3-1/2", 4", and 4-1/2"
Strike Plate Template Sizes: 1-1/8" x 2-3/4" and 1-1/2" x 2-1/4"
Latch Plate Template Sizes: 1" x 2-1/4", 1-1/8" x 2 1/4", and 1-1/8" x 2-3/4"
Screw Size: #6 Phillip Pan Head Screw
Weight: 1.84 lbs
