Milescraft HingeJig Self-Clamping Door Hinge & Latch Jig | 1226

Milescraft HingeJig Self-Clamping Door Hinge & Latch Jig | 1226.

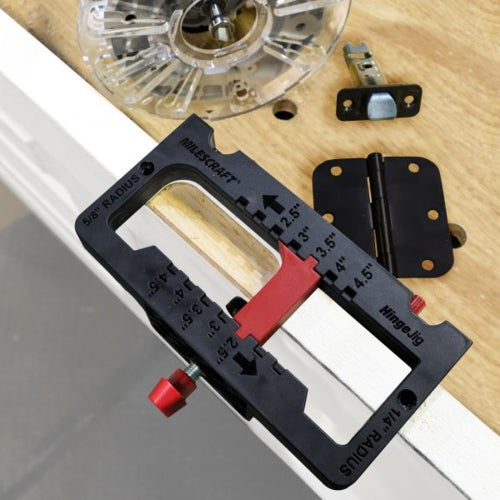

The Milescraft HingeJig™ is an innovative tool for installing door hinges and latch plates. With its self-clamping design, you can securely position the jig without screws or nails, protecting your doors from damage. This jig accommodates doors with a thickness of 1-3/8” (35mm) to 1-3/4” (44mm) and can rout hinge mortises for sizes ranging from 2-1/2” (64mm) to 4-1/2” (114mm). The built-in depth setting gauge ensures consistent results, while its padded clamp design prevents scratches. Additionally, the HingeJig™ includes templates for common latch plate sizes and a custom router bit with a ball bearing guide for smooth, clean cuts.

Features & Benefits:

• Self-Clamping Design: Prevents damage to doors by eliminating the need for screws or nails.
• Fits All Standard Doors: Adjustable settings support door thicknesses of 1-3/8” (35mm) and 1-3/4” (44mm).
• Versatile Hinge Sizes: Compatible with hinge sizes ranging from 2-1/2” (64mm) to 4-1/2” (114mm).
• Multiple Corner Radii: Rout 1/4” (6mm), 5/8” (16mm), or square corners with precision (chisel required for square corners).
• Latch Plate Templates: Includes templates for 1” x 2-1/4” (25mm x 57mm), 1-1/8” x 2-1/4” (29mm x 57mm), and 1-1/8” x 2-3/4” (29mm x 70mm).

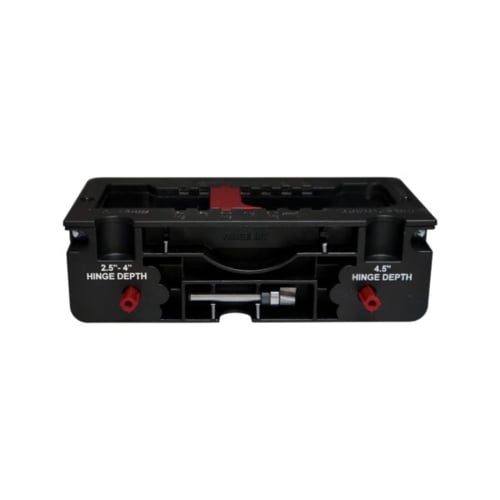

• Built-In Depth Gauge: Simplifies setting the router bit depth for consistent mortises.
• Custom Router Bit: Equipped with a 12mm cutting head and 1/2” (13mm) ball bearing guide.
• Integrated Storage: Keeps essential components like the router bit and optional self-centering hinge bit accessible.

Specifications:

Compatible Door Thickness: 1-3/8” (35mm) and 1-3/4” (44mm)
Latch Sizes: 1” x 2-1/4” (25mm x 57mm), 1-1/8” x 2-1/4” (29mm x 57mm), and 1-1/8” x 2-3/4” (29mm x 70mm)
Door Hinge Sizes: 2-1/2” (64mm), 3” (76mm), 3-1/2” (89mm), 4” (102mm), and 4-1/2” (114mm)
Hinge Corner Radius Sizes: 1/4” (6mm), 5/8” (16mm), or square (chisel required)
Door Mounting: Padded self-clamping with no hardware required
Adjustable Backset Plugs: Configurable for 1-3/8” (35mm) and 1-3/4” (44mm) latch routing

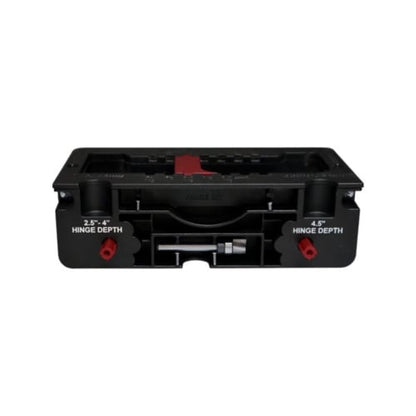

Storage: Built-in compartments for router bit and self-centering hinge bit (not included)
Guided Router Bit: 12mm cutting head with 1/2” (13mm) ball bearing

Scope of Delivery:

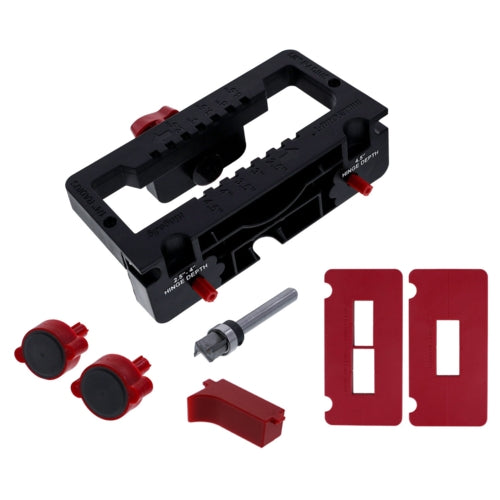

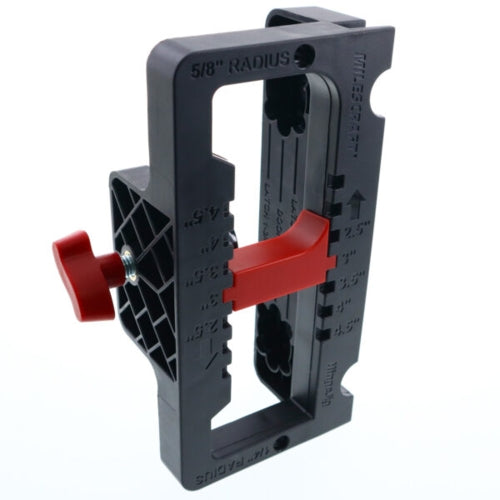

• Jig Main Body
• Built-in Clamp
• Adjustable Hinge Spacer
• 12mm Router Bit with Bearing
• 2x Adjustable Backset Plugs

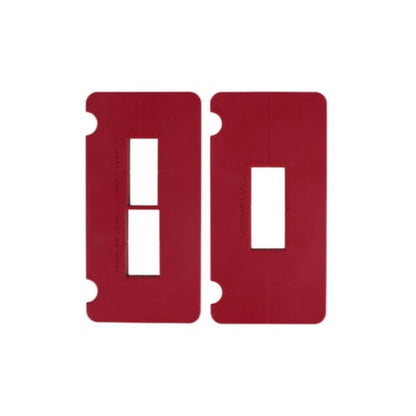

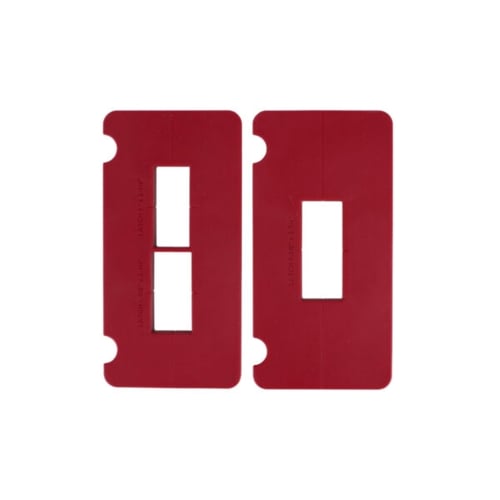

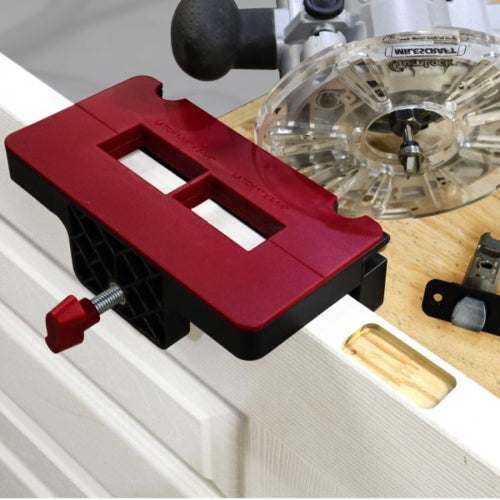

• 2x Latch Templates
