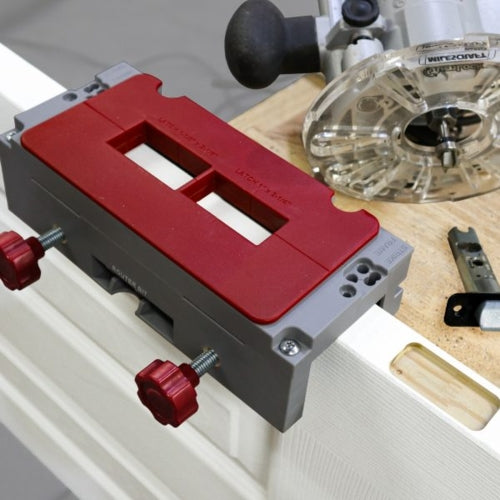

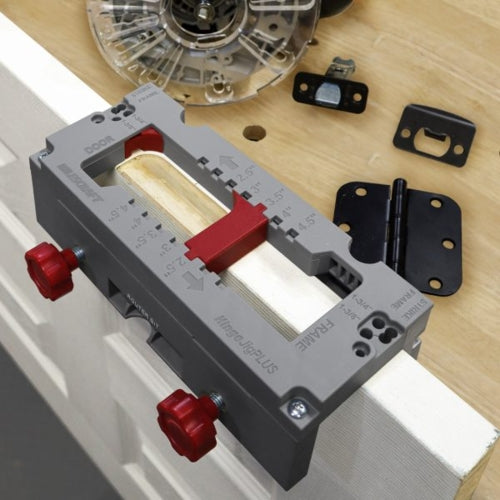

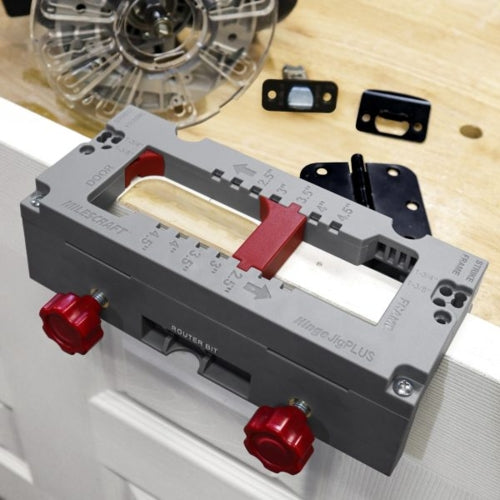

The Milescraft HingeJigPLUS is a versatile and efficient tool designed for precise door and frame installations. Whether you're installing door hinges, latches, or strike plates, this self-clamping jig ensures accuracy and ease of use. The padded, dual self-clamping system eliminates the need for screws or nails, preventing damage to your doors. Its adjustable settings accommodate standard 1-3/8" (35mm) and 1-3/4" (44mm) door thicknesses, while the built-in depth gauge simplifies router bit adjustments.

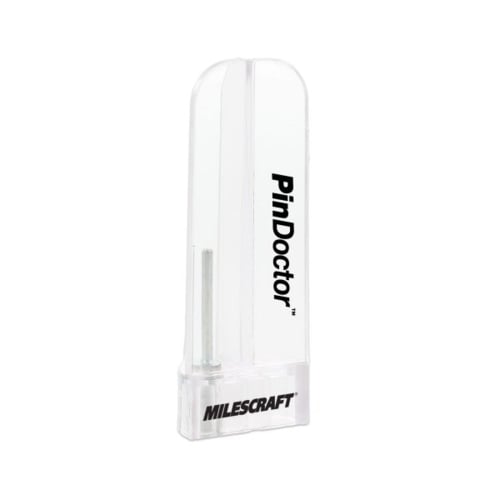

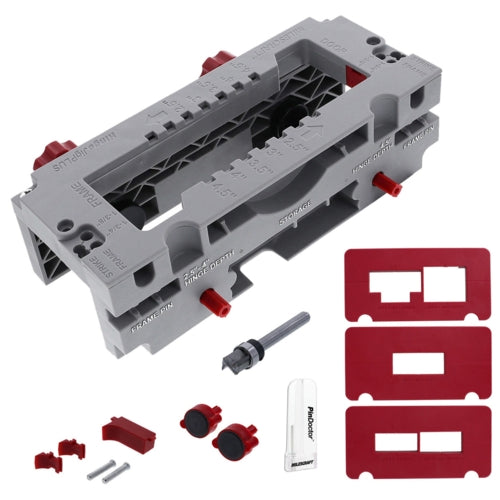

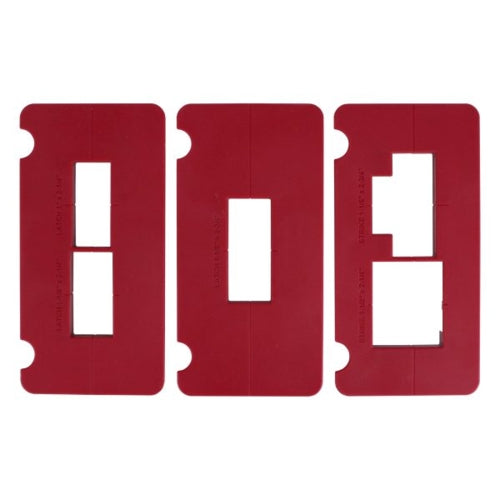

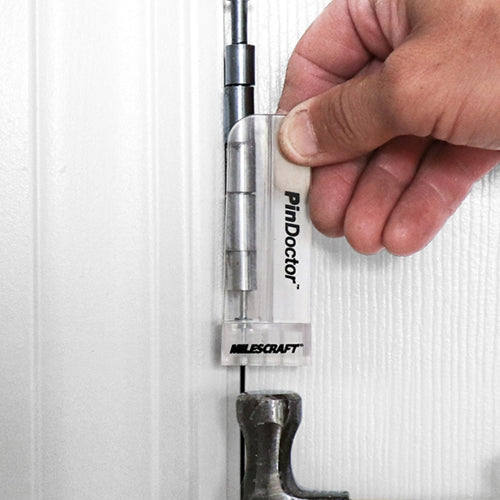

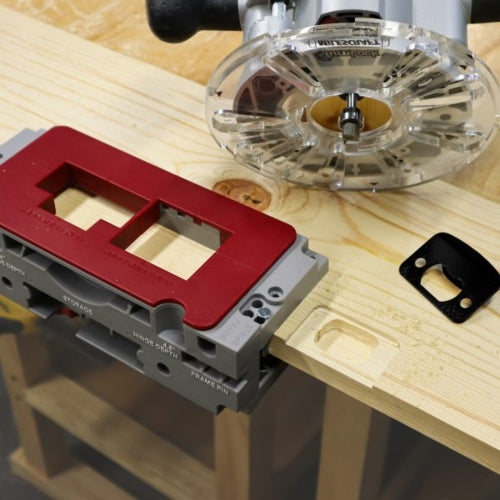

Engineered for compatibility with North American hardware, the HingeJigPLUS comes with templates for routing hinge mortises, latch plates, and strike plates, as well as a custom guided router bit. Additionally, the bonus PinDoctor™ hinge pin removal tool assists in seamlessly removing old doors. With built-in storage for essential components, this jig combines functionality with convenience, making it ideal for both DIY enthusiasts and professionals.
Compatible Door Thickness: 1-3/8" (35mm) and 1-3/4" (44mm)
Door Hinge Sizes: 2-1/2" (64mm), 3" (76mm), 3-1/2" (89mm), 4" (102mm), and 4-1/2" (114mm)
Door Latch Sizes: 1" x 2-1/4" (25mm x 57mm), 1-1/8" x 2-1/4" (29mm x 57mm), and 1-1/8" x 2-3/4" (29mm x 70mm)
Strike Plate Sizes: 1-1/2" x 2-1/4" (38mm x 57mm) and 1-1/8" x 2-3/4" (29mm x 70mm)
Hinge Corner Radius Sizes: 1/4" (6mm), 5/8" (16mm), or square (chisel required)
Door Mounting: Padded dual self-clamping, no hardware required

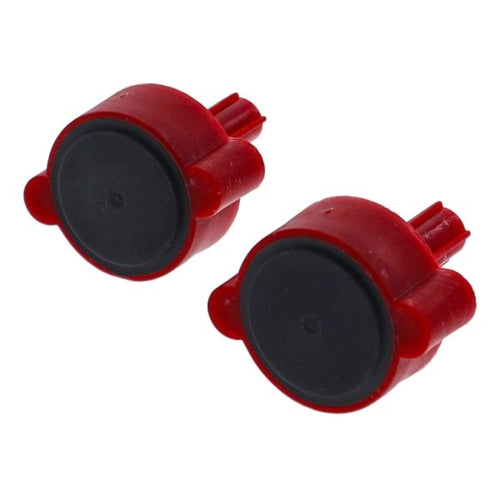

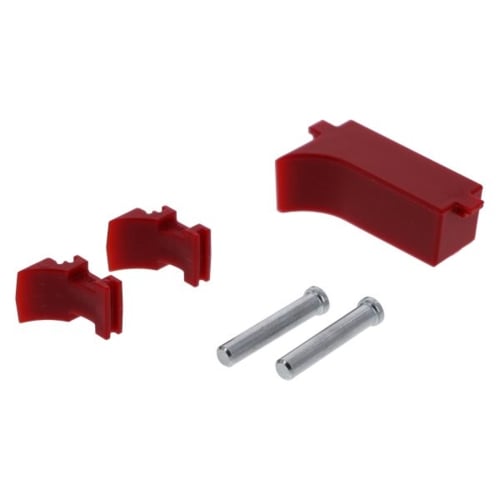

Adjustable Backset Plugs: Configurable for 1-3/8" (35mm) and 1-3/4" (44mm) latch routing

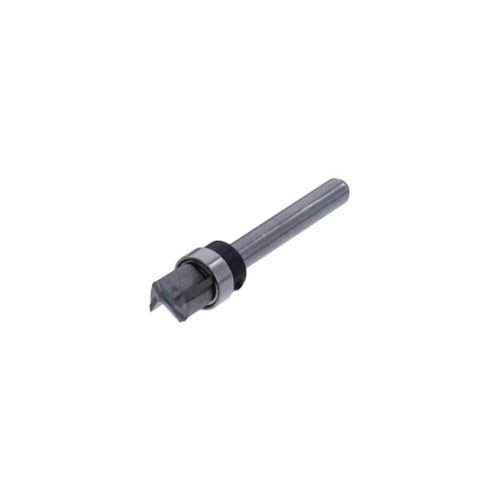

Guided Router Bit: 12mm cutting head with 1/2" (13mm) ball bearing

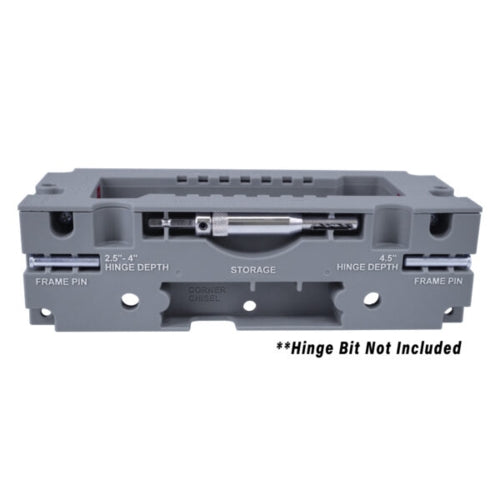

Storage: Built-in compartments for router bit and self-centering hinge bit (not included)
