Milescraft LockMatePLUS Professional Lock & Knob Installation Jig | 1338

Milescraft LockMatePLUS Professional Lock & Knob Installation Jig | 1338.

The Milescraft LockMatePLUS™ is a professional-grade tool designed to enhance the efficiency and accuracy of door lock and knob installations. Its innovative self-clamping mechanism eliminates the need for screws, protecting doors from damage while providing a secure hold. Equipped with cobalt alloy bi-metal hole saws, it offers exceptional cutting precision through both solid and hollow core doors made of wood or metal. The LockMatePLUS™ adjusts easily for standard door thicknesses and backset sizes, ensuring compatibility with most locks and knobs. The stepped drill guide, featuring a durable metal bushing, prevents wear and extends the tool's lifespan. With its included deadbolt locator and extra-long pilot bit, users can achieve perfect spacing and reduce tear-out for professional-grade results.

Features & Benefits:

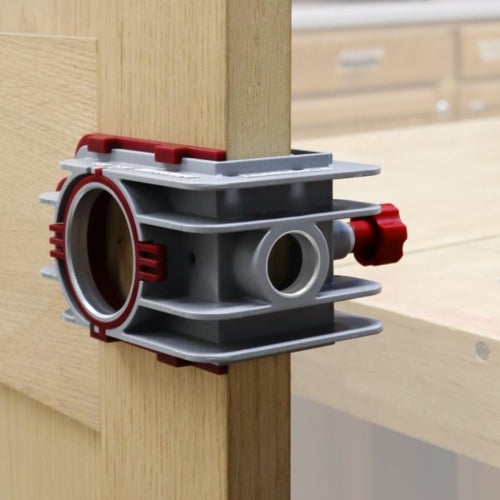

• Self-Clamping Design: Attaches securely to doors without screws, preventing damage and simplifying setup.

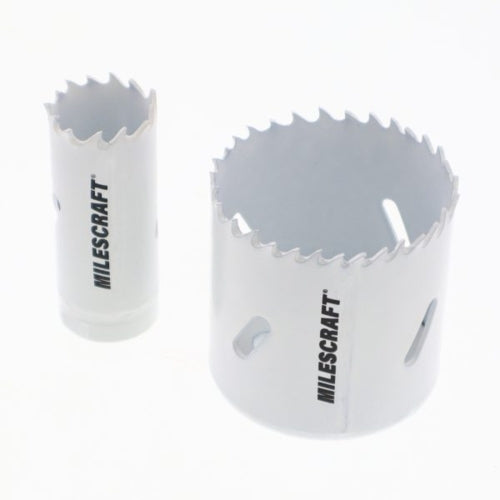

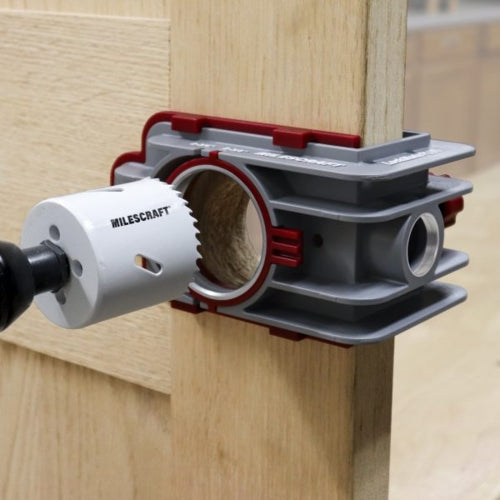

• Advanced Cutting Tools: Includes 2-1/8” (54mm) and 1” (25mm) cobalt alloy bi-metal hole saws for precise cuts.
• Multi-Material Capability: Cuts through wood and metal, whether solid or hollow core.
• Wide Compatibility: Fits standard door thicknesses of 1-3/8” (35mm) and 1-3/4” (44mm).
• Durable Anti-Wear Design: Stepped drill guide with metal bushing extends tool life.
• Adjustable Backset Settings: Supports 2-3/8” (60mm) and 2-3/4” (70mm) backset options.

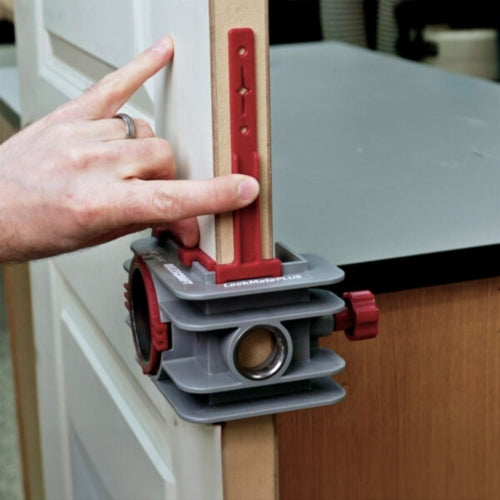

• Perfect Spacing: Deadbolt locator ensures accurate positioning relative to knobs or handles.
• Reduced Tear-Out: Extra-long ¼” (6.35mm) pilot bit exits first, guiding clean cuts from the opposite side.

Specifications:

Door Mounting: Self-Clamping
Hole Saw Diameter: 2-1/8” (54mm) and 1” (25mm)
Compatible Door Thickness: 1-3/8” (35mm) and 1-3/4” (44mm)
Adjustable Backset Settings: 2-3/8” (60mm) and 2-3/4” (70mm)
Pilot Bit with Arbor: ¼” (6.35mm) Drill Bit
Main Drill Guide: Metal Step-down Guide Bushing

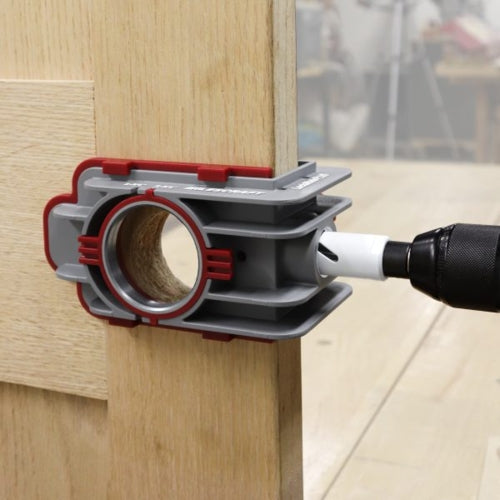

Cross Bore Guide: Metal Guide Bushing

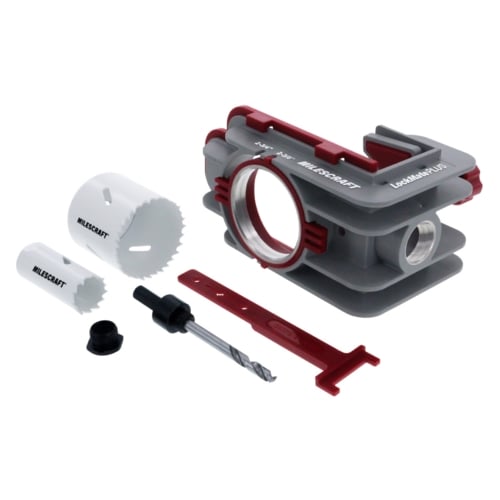

Scope of Delivery:

• Jig Body
• 2x Bi-Metal Hole Saws
• Door Thickness Spacer
• Adjustable Main Drilling Guide
• ¼” Pilot Bit with Arbor
• Hole Saw Adapter
• Adapter Washer
• Dead Bolt Locator

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
