Milescraft Metric Joint Mate Dowel Jig (Tool Only) | 1382

Milescraft Metric Joint Mate Dowel Jig (Tool Only) | 1382.

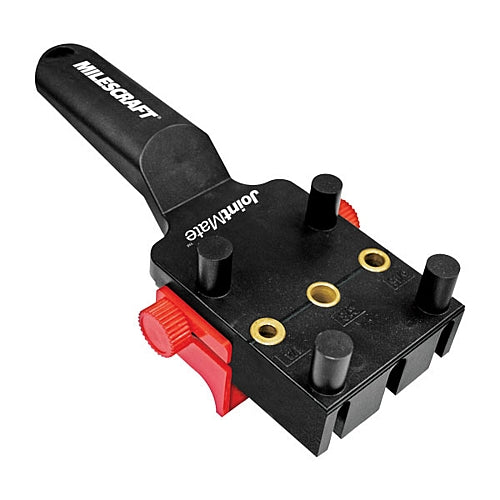

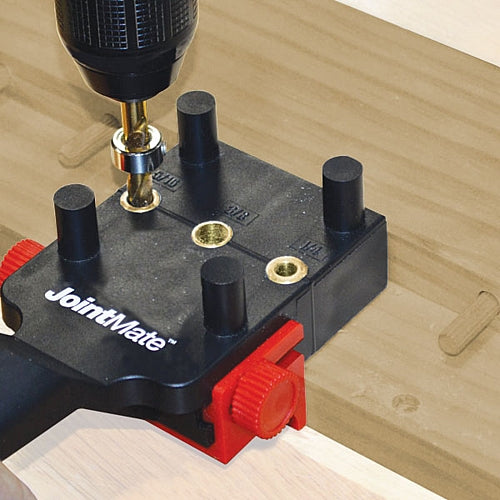

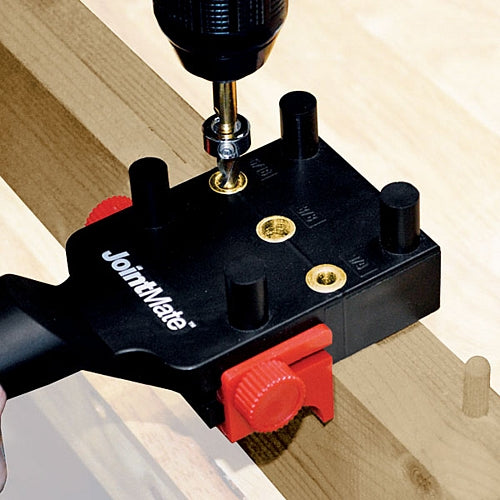

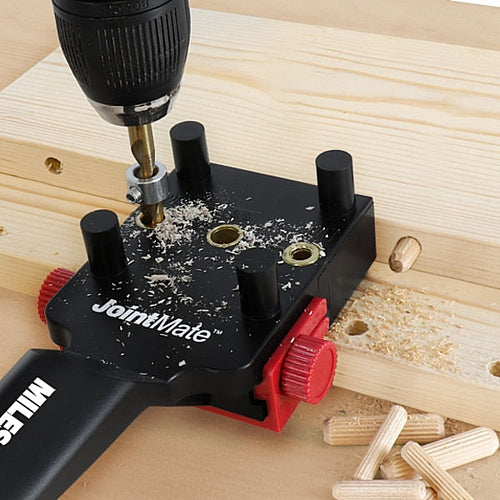

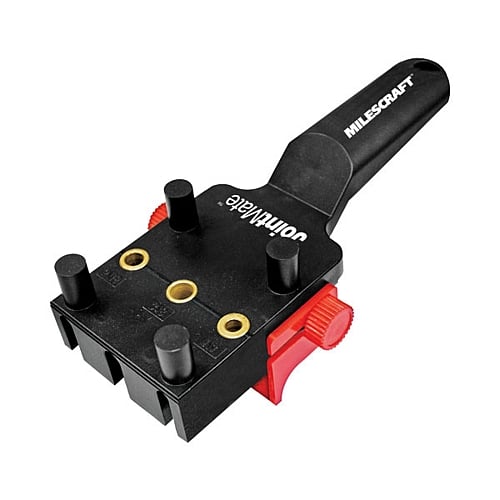

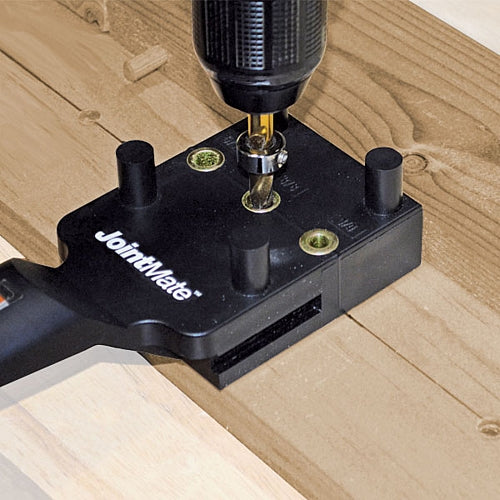

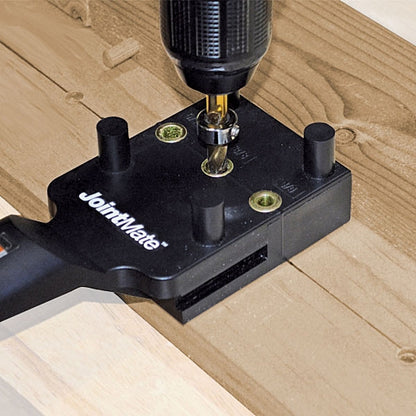

Perform one-handed alignment and skip the hassle of measuring and marking when drilling corner or edge joints with JointMate. JointMate allows for quick and accurately doweled corner, edge or surface joints. With minimal set-up, and no exposed or covered mechanical fasteners, JointMate makes doweling easy.

Self-Centering Guide Posts:

• Allow for accurate, one-handed alignment for maximum joint strength and precise dowel alignment

Insert Molded Hardened Steel Bushings:

• Ensure accurate alignment when drilling for perfectly positioned dowels
• For longer doweling life

Adjustable Guide Fence:

• Easily adjust to the depth of the board so that each hole will be precise from one to the next
• Can be removed without removing the guide knobs
• Compatible with 1/2″ to 1-1/2” thick lumber

Technical Data:

Bushing Sizes: 1/4", 5/16", 3/8"
Minimum Board Width (not thickness) for 1/4" & 5/16" bushing: 2"
Minimum Board Width (not thickness) for 3/8" bushing: 3-1/4"
Closest distance for dowel from board end (for 1/4" and 5/16" bushing): 1-1/8"
Closest distance for dowel from board end (for 3/8"): 1-5/8"
Bushing Material: Metal
JointMate Body Material: ABS Plastic
