Milescraft Metric Joint Mate Dowel Jig Kit | 1383

Milescraft Metric Joint Mate Dowel Jig Kit | 1383.

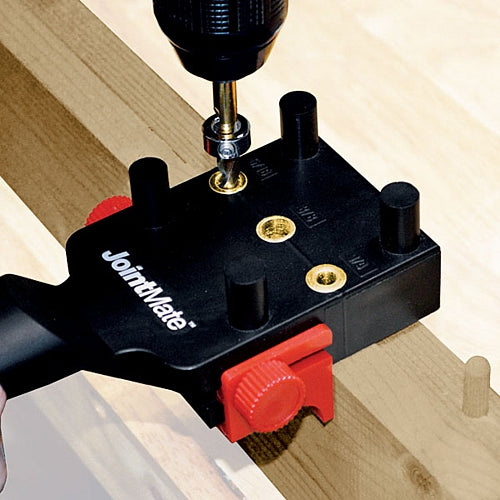

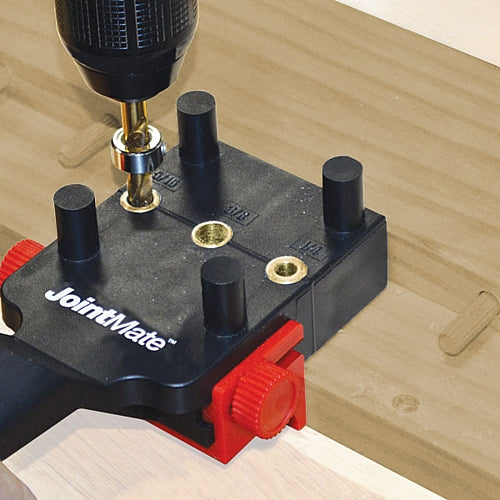

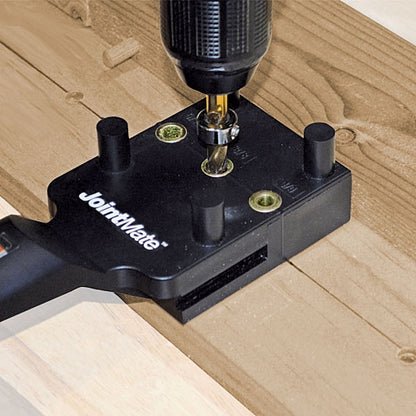

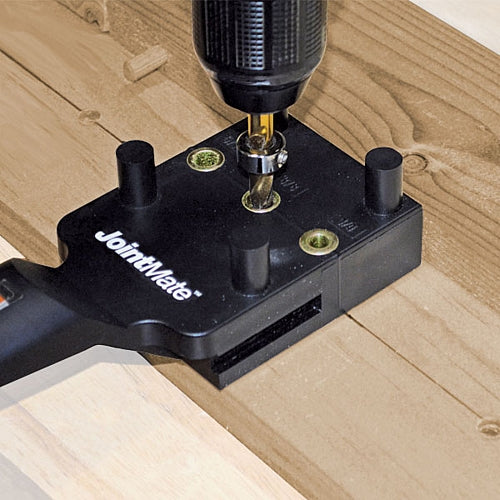

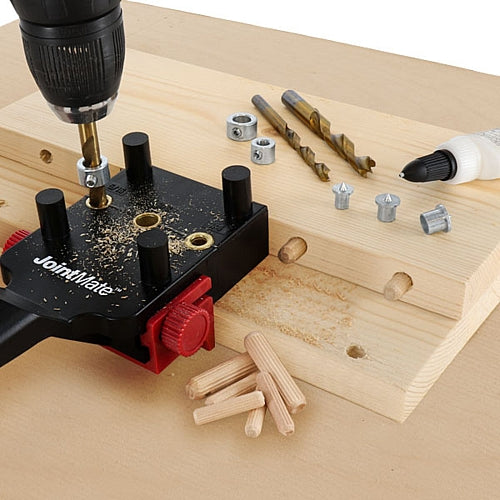

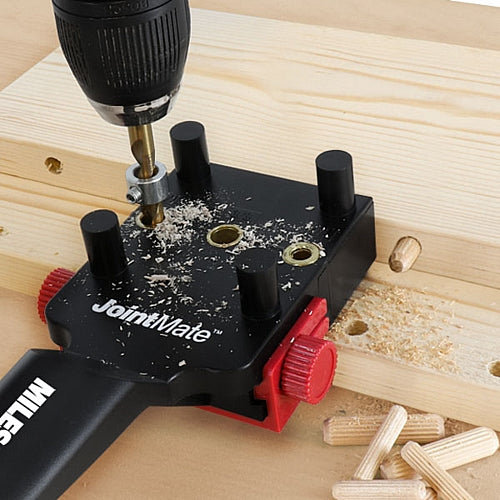

DowelJigKit contains everything you need to get started creating strong and accurate doweled joints. The self-centering dowel jig and adjustable fence allow for precise dowel alignment and maximum joint strength. Use with wood boards from 1/2″ to 1-1/2” thick. Now you can perform one-handed alignment and skip the hassle of measuring and marking when drilling corner or edge joints.

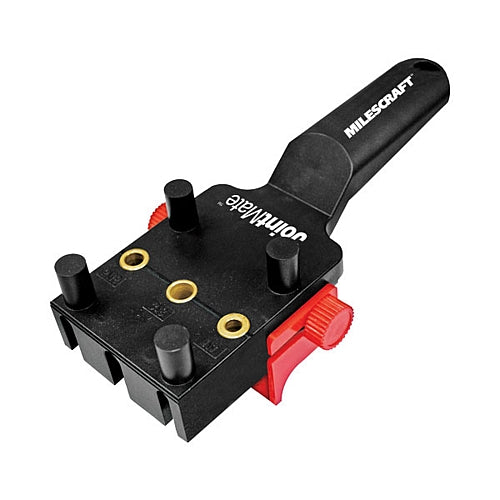

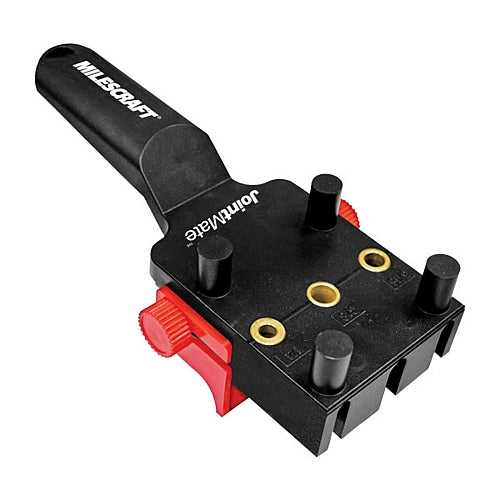

Self-Centering Guide Posts

• Allow for accurate, one-handed alignment for maximum joint strength and precise dowel alignment

Insert Molded Hardened Steel Bushings

• Ensure accurate alignment when drilling for perfectly positioned dowels
• For longer doweling life

Adjustable Guide Fence

• Easily adjust to the depth of the board so that each hole will be precise from one to the next
• Can be removed without removing the guide knobs
• Compatible with 1/2″ to 1-1/2” thick lumber

Steel Dowel/Tenon Centers

•  For durable and accurate location marking of dowel holes or in the second board being joined

Fluted Hardwood Dowel Pins

• Chamfered ends add strength and endurance to your joined surfaces
• Includes 3 sizes – 1/4”, 5/16”, 3/8”

Brad Point Drill Bits

• Bits ensure pinpoint accuracy
• Includes 3 sizes – 1/4”, 5/16”, 3/8”

Steel Drill Stops

• For durable performance
• Includes 3 sizes – 1/4”, 5/16”, 3/8”

Technical Data:

Drill Bushings, Stops, Bits, and Pin Sizes: 1/4", 5/16", 3/8"
Minimum Board Width (not thickness) for 1/4" & 5/16" bushing: 2"
Minimum Board Width (not thickness) for 3/8" bushing: 3-1/4"
Closest distance for dowel from board end (for 1/4" and 5/16" bushing): 1-1/8"
Closest distance for dowel from board end (for 3/8"): 1-5/8"
JointMate Body Material: ABS Plastic

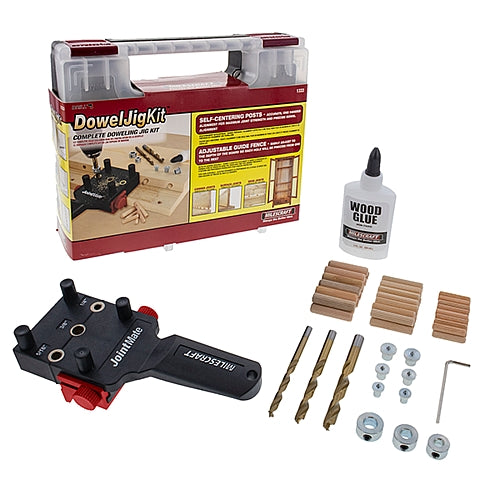

Scope of Delivery (82 piece kit):

• JointMate,
• (62) Dowel Pins,
• (6) Dowel Centers,
• (3) Brad Point Bits,
• (3) Drill Stops,
• Allen Wrench,
• Wood Glue,
• Heavy-Duty Storage Case

https://youtu.be/3ArntoBYjLY
