Milescraft Pocket Jig 400 - Pocket Hole Jig Kit (12-38mm Thickness) | 1327

Milescraft Pocket Jig 400 - Pocket Hole Jig Kit (12-38mm Thickness) | 1327.

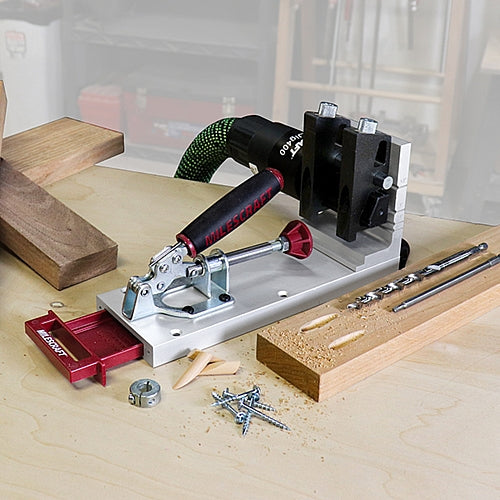

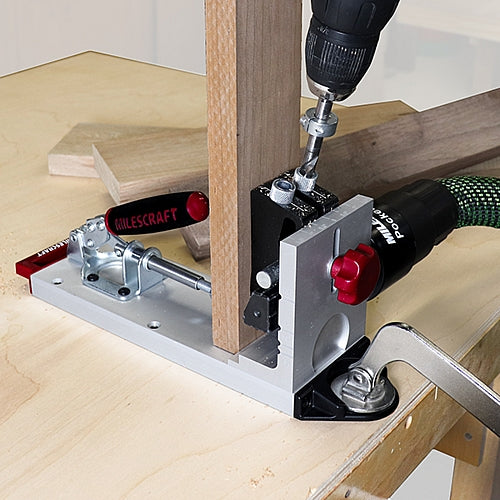

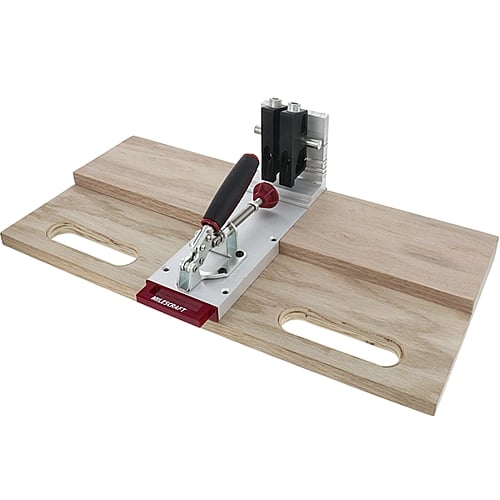

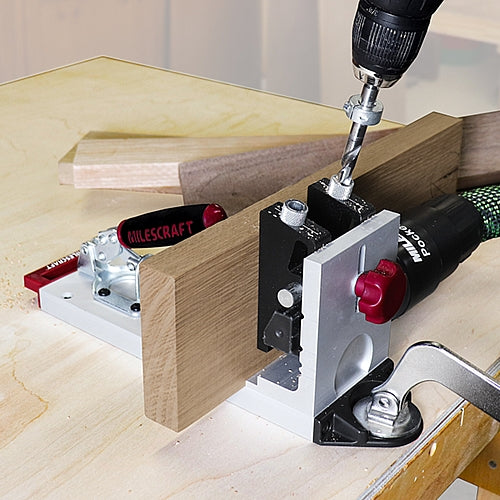

Creating professional quality pocket hole results has never been easier with the Milescraft PocketJig400™.

The durable metal construction of the PocketJig400™ is built to last. Solid steel bushings adjust both vertically and horizontally to fit your. To secure workpieces, the fine-adjust clamping pad quickly adapts to your board thickness.

A convenient storage drawer contains markings for all common board thicknesses to make setting the depth stop simple and easy.  For mobile or repair jobs, the clamping wall of the PocketJig400™ is removable, turning it into a hand-held jig that fits and clamps almost anywhere.

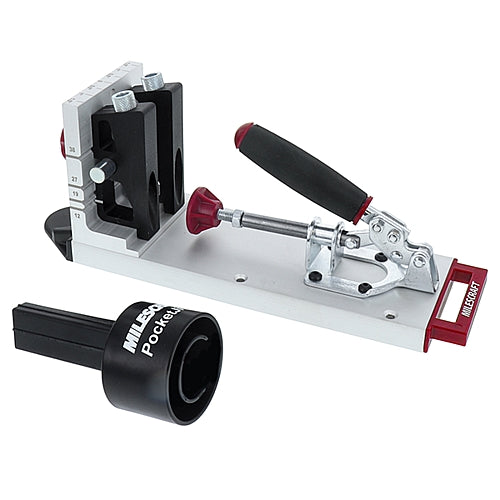

All-Metal Construction

• Increased rigidity reduces the flex for more precise results

Durable Drill Guides

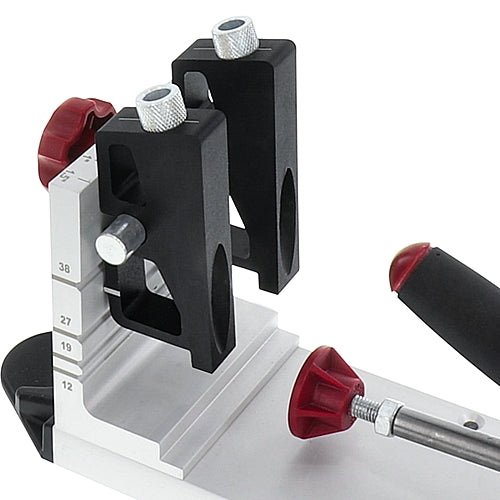

• Height and width adjustable bushing blocks contain two, 3/8″ steel drill guides that can be positioned for drilling boards from 1/2” up to 1-1/2” thick and holes from ¾” to 3” apart

Dial In The Pressure

• Steel toggle clamp with micro-adjust clamp-head dials in perfect clamping pressure for different board thicknesses

Store Your Stuff

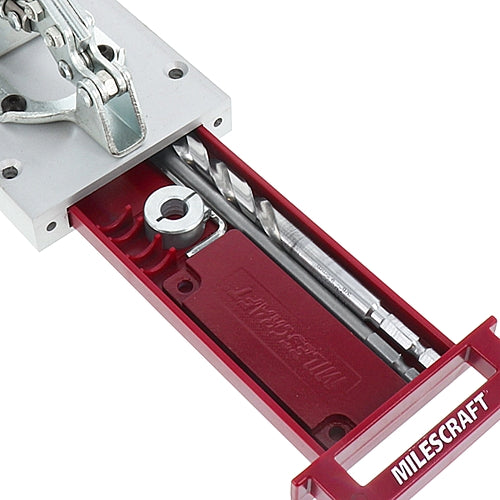

• Convenient storage drawer holds bits, drivers, depth stops, and more and contains markings for all common board thicknesses to make setting the depth stop simple and easy

Portable Pocket Hole

• L-Base can be removed from main body and used for mobile pocket hole projects and repairs

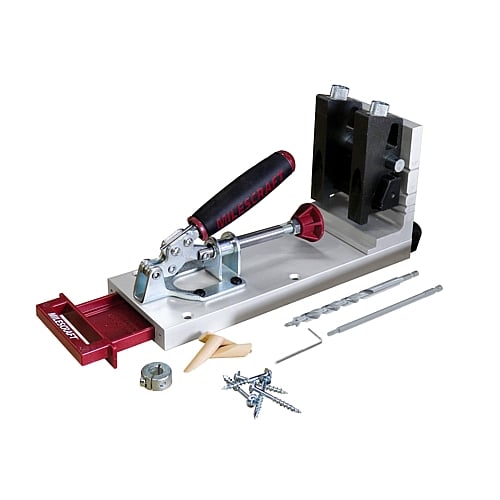

Accessories Included

• Kit comes complete with 3/8” Pocket Hole Bit, T20 Magnetic Driver, 3/8” Split-Ring Depth Stop, 60 Pocket Hole Screws, 10 Pocket Plugs, and 3mm Hex Key.

Technical Data:

Main Body Material: Aluminum
Drill Guide Material: Hardened Steel
Drill Guide Sizing: 3/8”
Board Size Range: 1/2” to 1-1/2”
Hole Width: 3/4” to 3”

Scope of Delivery:

• Main Jig Body with Toggle Clamp,
• Removeable L-shaped Clamping Wall,
• 2x Solid Steel Drill Guides,
• 3/8” Pocket Hole Bit,
• 6” T20 Magnetic Driver,
• 3/8” Split-Ring Depth Stop,
• 10x 1” Coarse Pocket Screws,
• 10x 1.25” Coarse Pocket Screws,
• 10x 1.25” Fine Pocket Screws,
• 10x 1.5” Coarse Pocket Screws,
• 10x 2” Coarse Pocket Screws,
• 10x 2.5” Coarse Pocket Screws,
• 10x 3/8” Pocket Plugs, and
• 3mm Hex Key.
