Milescraft Pocket Jig 200 - Pocket Hole Jig (12-38mm Thickness) | 1325

Milescraft PocketJig200 Pocket Hole Jig Kit | 0821325.

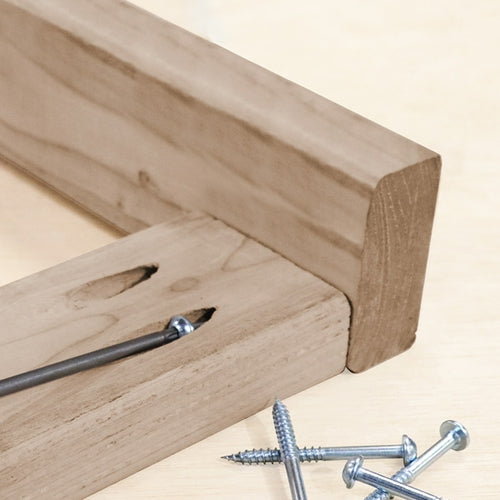

The Milescraft PocketJig200™ pocket hole jig allows you to connect your workpieces in a quick and timely manner. Whether you want to build storage projects, cabinets, shelves, or bookcases, this kit does it all. Allowing you to create corner joints, T-Joints, Framing Joints, Miter Joints, and do repairs. With built-in settings for board thicknesses, there is no need to manually measure. Just set this pocket jig to your desired setting, set the depth of your bit, and start drilling.

PocketJig200™ Pocket Hole Jig Kit – Designed To Make Repairs Simple

• Spring-loaded sled adjust button allows the jig to be set to do repairs of any nature around your home or your shop

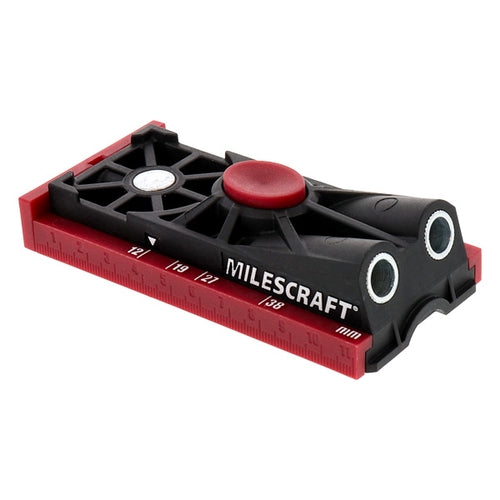

Built-In Imperial And Metric Scales

• The built-in scales allow you to easily measure the thickness of your workpiece

Board Thickness Settings

• There are four common board thickness settings built into the pocket jig: 1/2″, 3/4″, 1″ and 1-1/2″ (12, 19, 27, 38mm)
• Easy readout arrow to help define your board thickness setting
• Easily adjust to your board thickness setting with the single sled design and sled adjust button

Hardened Steel Drill Bushings

• For precise and accurate pocket holes every time using the Milescraft PocketBit™
• Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

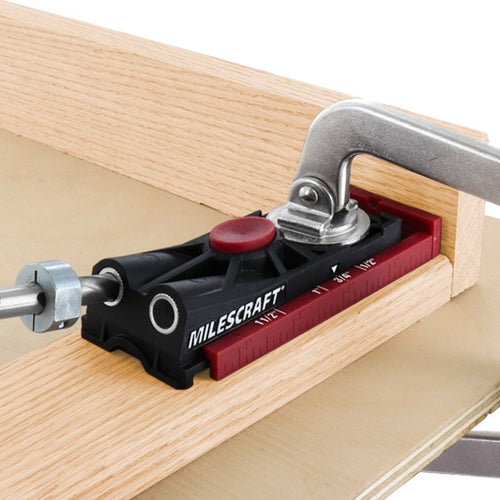

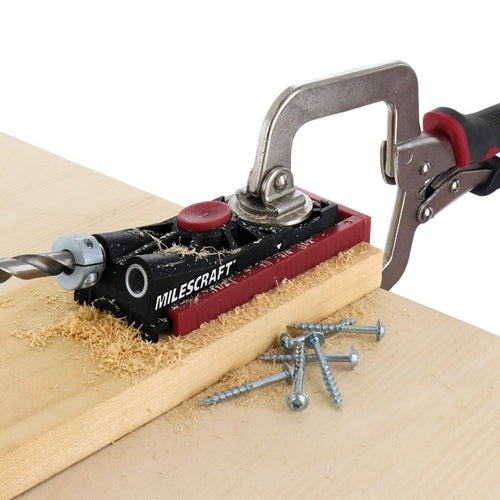

Recessed Clamp Pocket With Magnet

• Helps to keep the clamp in the same position as you move to different locations
• With the stronger rare earth magnet, you can easily clamp the jig from one location to another
• For speed and accuracy, use the Milescraft FaceClamps™

Convenient Built-In Depth Setting

• Easily set your bit for the correct drilling depth

3/8″ HSS Step Drill Bit

• Made from high-speed steel the PocketBit with a 1/4″ hex shank is designed to reduce clogging and provide smooth and precise holes

3/8″ Anti-Roll, Split Design Stop Collar

• The split design prevents slipping of the set screw when tightened and prevents the bit from rolling
• Includes hex key for tightening

Quick Change Compatible Connector

• With the Milescraft Connector, you can quickly change from drilling to driving
• Accepts all 1/4″ hex bits
• Quickly and easily change from drilling to driving

3″ And 6″ Magnetic T20 Torx® Drivers

• For maximum torque settings without stripping
• To allow pocket screws to align with maximum precision

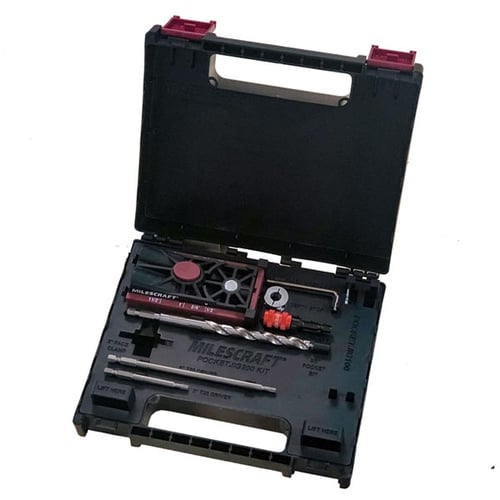

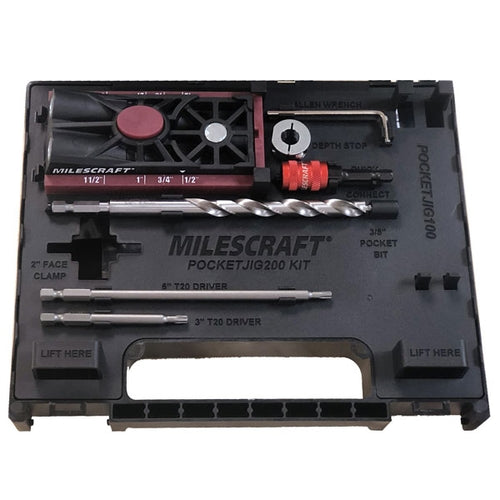

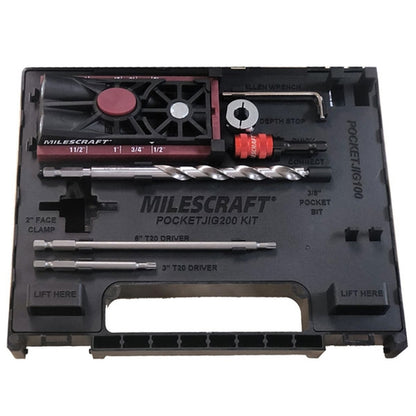

Rugged Storage Case

• With designated places for components, you will never have to go digging through your toolbox for your pocket hole jig again
• Storage compartment for 2″ FaceClamp™
• Storage slot for PocketJig100

Material: Reinforced Nylon:

Drill Guide Bushing Spacing: 1"
Clamping Method: Works with any clamp
For use with: Wood Materials for 1/2" to 1.5 thick (12-38mm)
Drilling Angle: 15°
Screw and Driver Style: T20 Torx
Screws: 10 of each: 1” (25mm), 1.25” (32mm) coarse and fine, 1.5” (38mm), 2” (51mm), 2.5” (64mm)
Drivers: 3" T20 Magnetic Head Driver and 6" T20 Magnetic Head Driver
Pocket Plugs: 10 plugs
Connector: Accepts all 1/4" hex bits
Drill Bit: 3/8" (9.5mm) HSS Pocket Bit with 1/4" shank

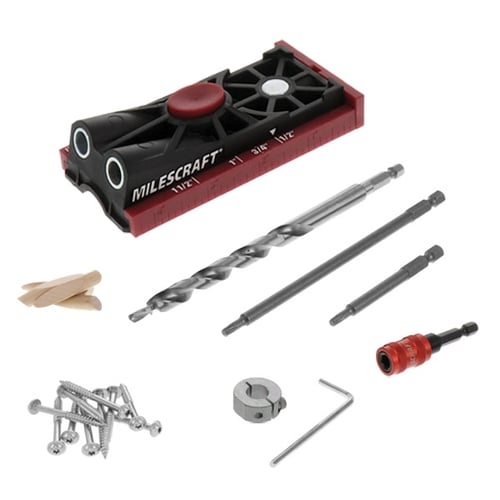

Includes:

• Double Barrel Pocket Hole Jig,
• Quick Connect,
• 3" & 6" T-Star Driver Bits,
• 3/8" PocketBit™,
• 60 Piece T20 Pocket Hole Screws,
• Pocket Plugs,
• 3/8" Split Design Stop Collar with Hex Key
• Instruction Manual
