Milescraft SaddleSquare3D, 45/90 Degree Saddle Square | 8464

Milescraft SaddleSquare3D, 45/90 Degree Saddle Square | 8464.

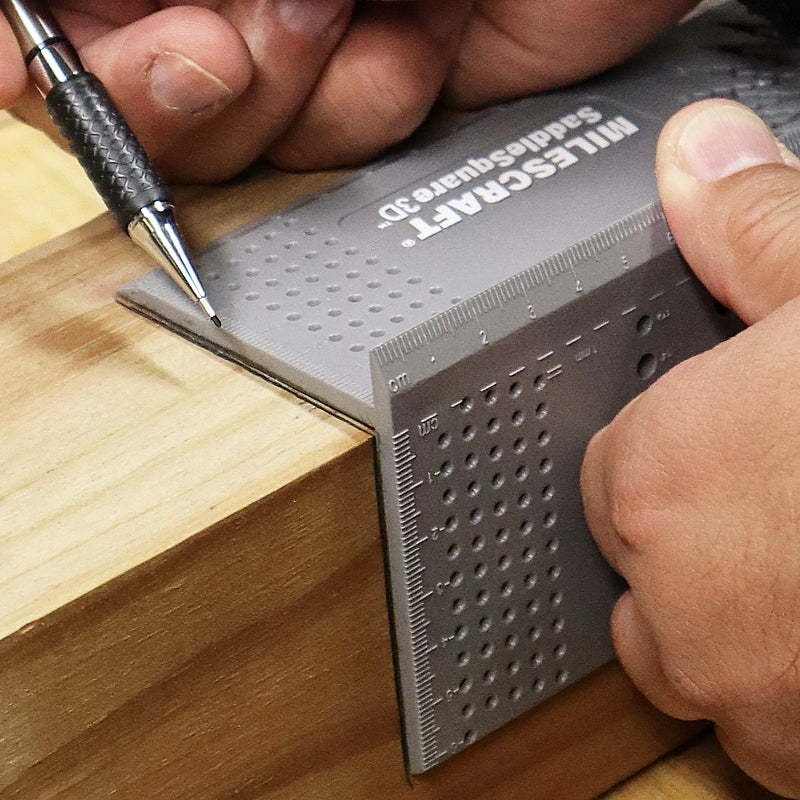

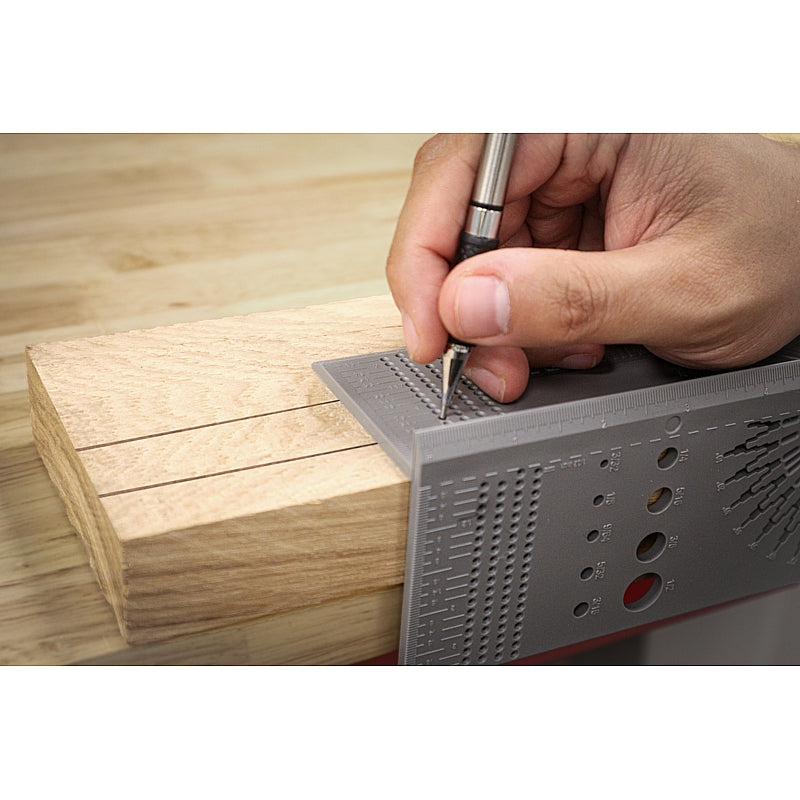

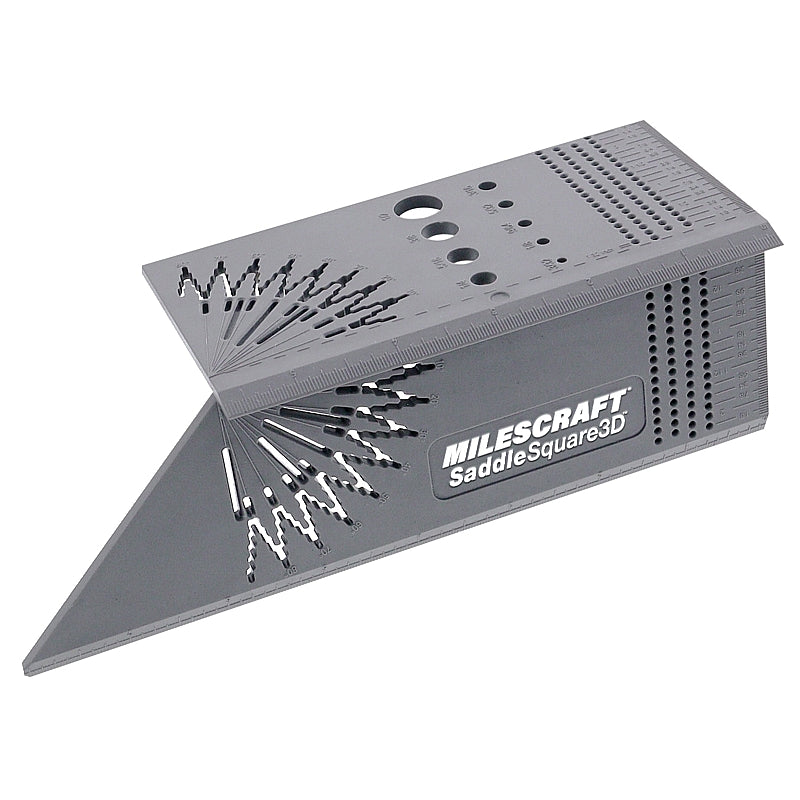

The Milescraft SaddleSquare3D™ is a pocket-sized workshop companion that makes transferring layout lines quick, accurate, and repeatable. Designed for use with a 0.9 mm mechanical pencil, this lightweight tool allows you to mark multiple faces of a workpiece with ease. It functions as two saddle squares in one: use one side to transfer precise 90-degree lines between adjacent faces, then flip it over to mark accurate 45-degree mitre lines. Additionally, the patent-pending angle guide lets you mark exact whole angles from 2 degrees to 83 degrees using evenly spaced guiding channels, ensuring consistent and reliable layout work.

Furthermore, the SaddleSquare3D™ includes four integrated rulers with finely spaced markings, aligned with physical scribing guides. These guides eliminate freehand marking by physically guiding the pencil for accurate line placement. A built-in drill bit sizing gauge also helps identify worn or unreadable imperial drill bits, making this tool a practical all-in-one solution for everyday layout tasks.

Features & Benefits:

• Dual Saddle Square Design: Transfers accurate 90-degree and 45-degree lines between adjacent board faces.

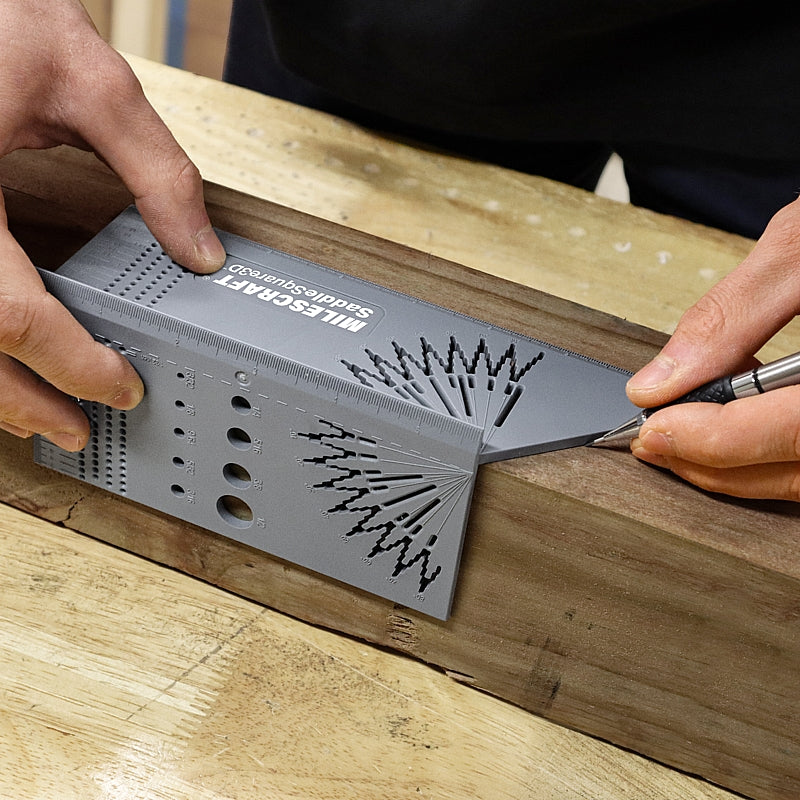

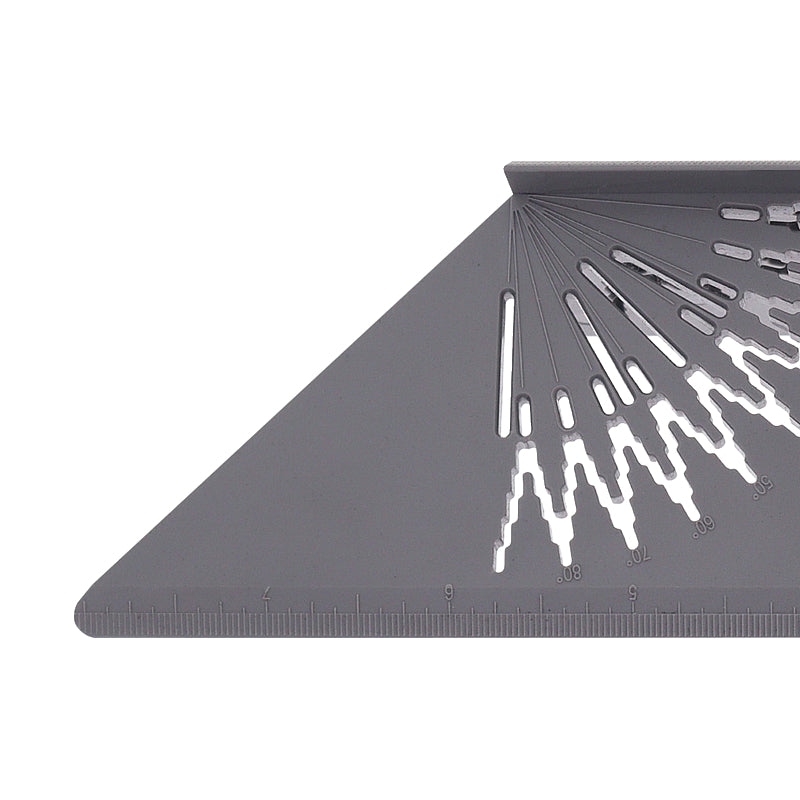

• Exact Angle Marking: Patent-pending guide allows precise marking of whole angles from 2° to 83°.
• Integrated Precision Rules: Four rulers with 1/32″ (0.8 mm) spacing support detailed layout work.

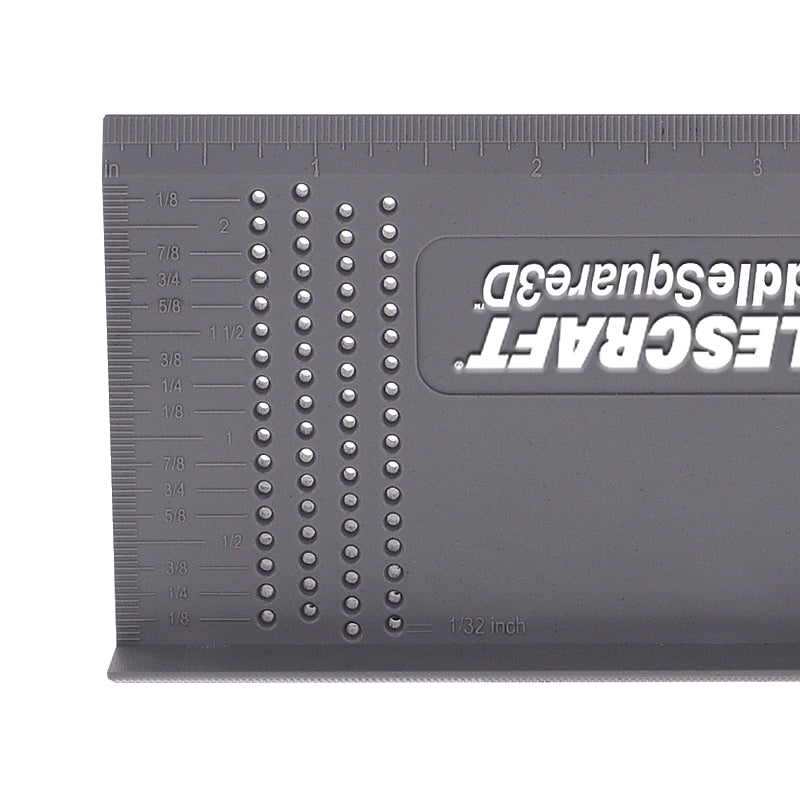

• Physical Scribing Guides: Pencil-guided holes ensure consistent, evenly spaced marking without freehand errors.

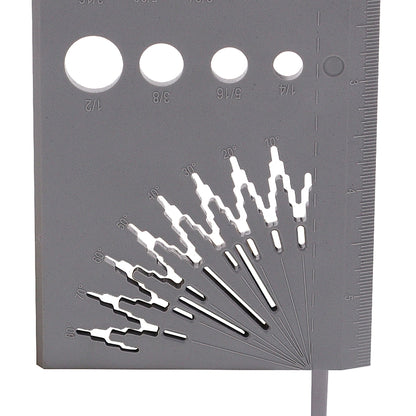

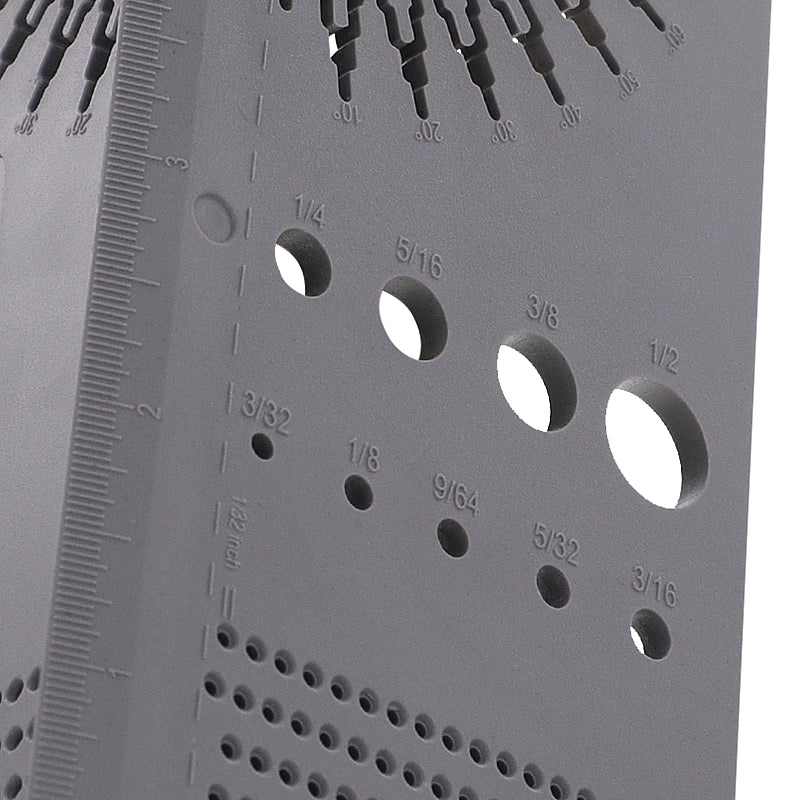

• Drill Bit Sizing Gauge: Quickly identifies common imperial drill bit sizes with worn markings.
• Compact and Lightweight: Easily fits in a pocket or shop apron for convenient access.

Specifications:

• Code: 8464
• Barcode: N/A
• Angle Functions: 45° and 90° saddle square
• Angle Marking Range: 2° to 83°
• Rule Spacing: 1/32″ (0.8 mm)
• Pencil Compatibility: 0.9 mm mechanical pencil
• Additional Feature: Integrated imperial drill bit sizing gauge

Scope of Delivery:

• 1 x Milescraft SaddleSquare3D™ layout tool

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
