Milescraft Tool Stand for Rotary Tools - Drill Press | 1097

Milescraft ToolStand Drill Press | 0821097.

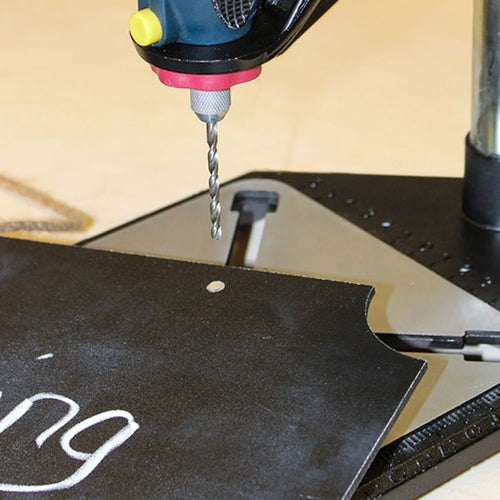

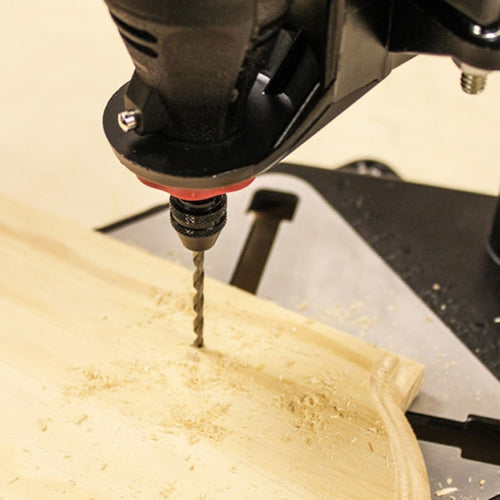

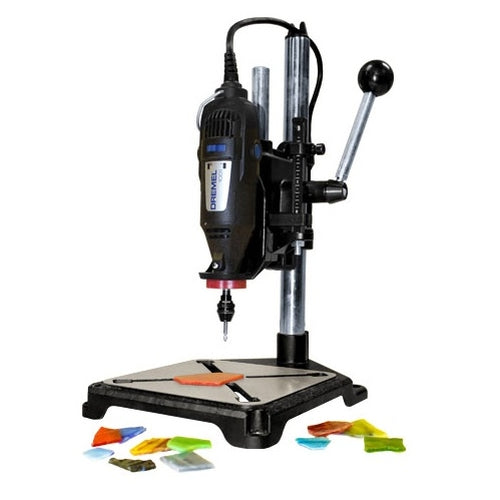

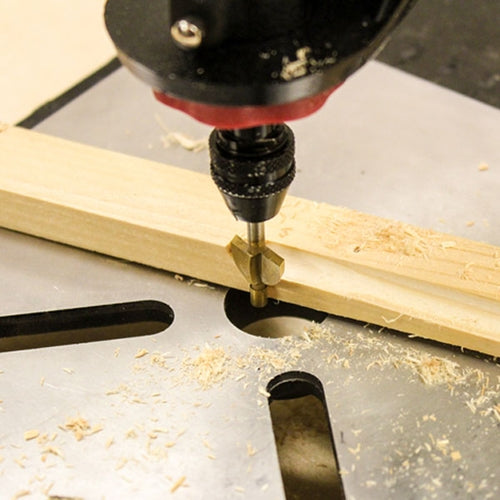

Elevate Your Rotary Tool’s Performance to “Machine Tool” Standards with the ToolStand™! Transform a handheld rotary device into a precision drilling machine with the rotary tool stand.  This stand is compatible with most Dremel-style rotary tools.  The ToolStand™ acts as a drill press to cut perfectly perpendicular holes while a depth-stop gauge makes repetition a cinch.

The Milescraft ToolStand™ is compatible with most Dremel style rotary tools including Dremel models 100, 200, 275, 285, 300, 395, 398, 400XPR, 800, 2305, 3000, 4000, 4200, 4300, 7760, 8100, 8200, and 8220. This product is also compatible with other brands and models of rotary tools that have a removable nose cap compatible with the included ¾” x 12  and 17 x 1.5mm collet nuts.

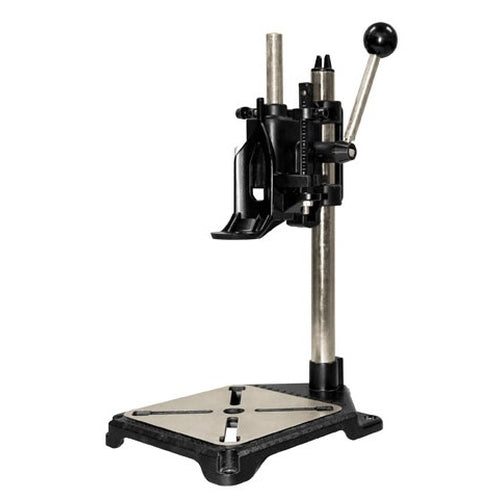

Head Assembly

• The solid metal head securely holds most rotary tools in place
• Spring-loaded rack and pinion gearing move the tool smoothly and accurately through drilling depths set using the integrated depth scale

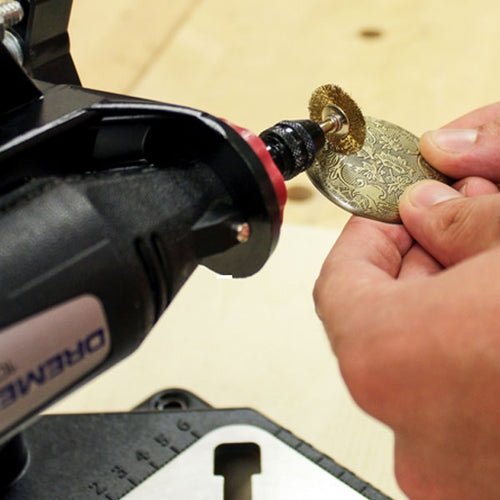

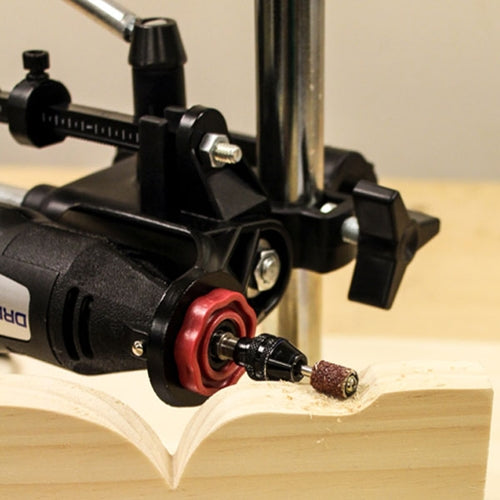

• The integral depth stop ensures repeatability of cut, and the tool can be locked in place for continuous milling

Support Column

• The steel 13-1/2″ support column fits securely into a steel base plate
• Cord clip prevents the cord from interfering while working
• Maximum travel of 7″

Tool Stand Base

• The base can rest unattached on a bench or be easily clamped or mounted
• Formed steel 9.5″ x 7″ base
• Surface and mounting platforms have been planed to ensure a level work surface
• Includes rubber feet to prevent movement

Technical Data:

Material: Steel
Maximum Travel: 7"
Table Dimensions: 3" x 6"
Base Dimensions: 9.5" x 7"
Throat Depth: 4"
Stroke: 2.5"
Diameter of Head Opening: 3/4"
Collet Nuts Included: 3/4" x 12 Collet Nut and 17 x 1.5M Collet Nut
Weight: 3.94 lbs
