Milescraft TrackSawSquare, Edge Square for TrackSawGuide (1409) | 1410

Milescraft TrackSawSquare, Edge Square for TrackSawGuide (1409) | 1410.

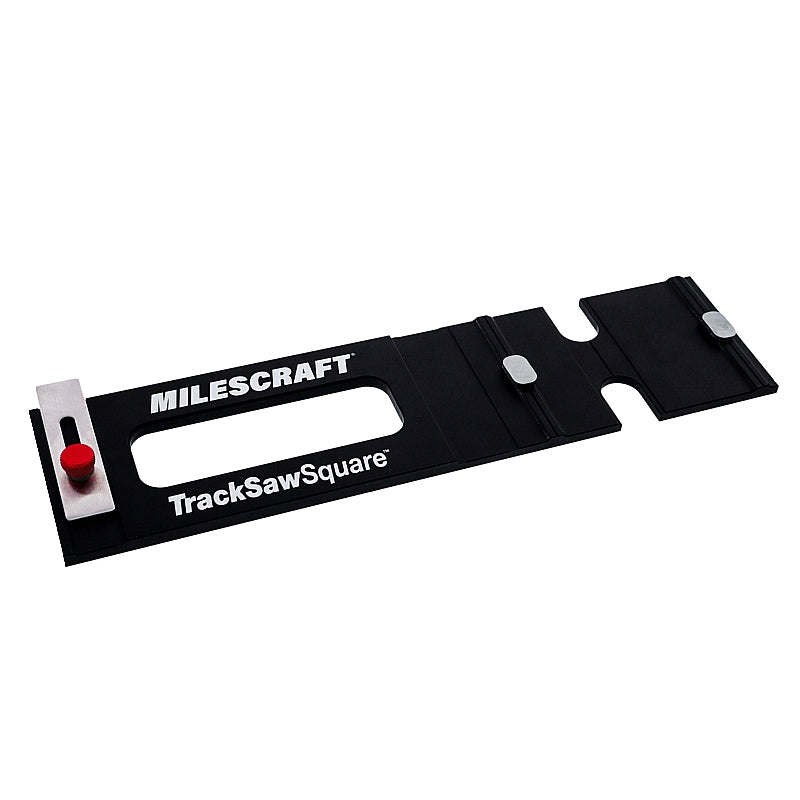

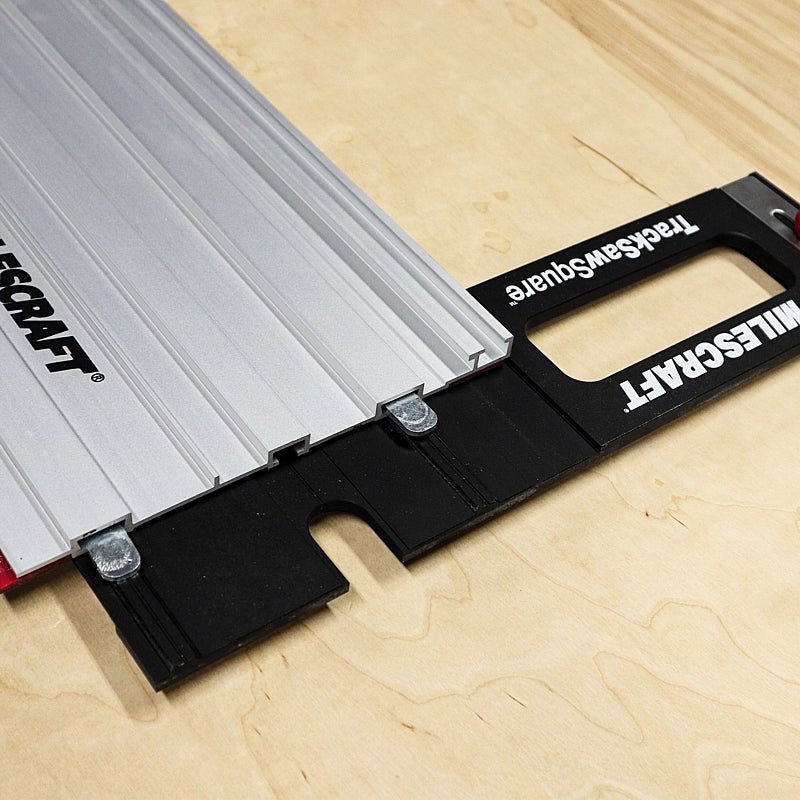

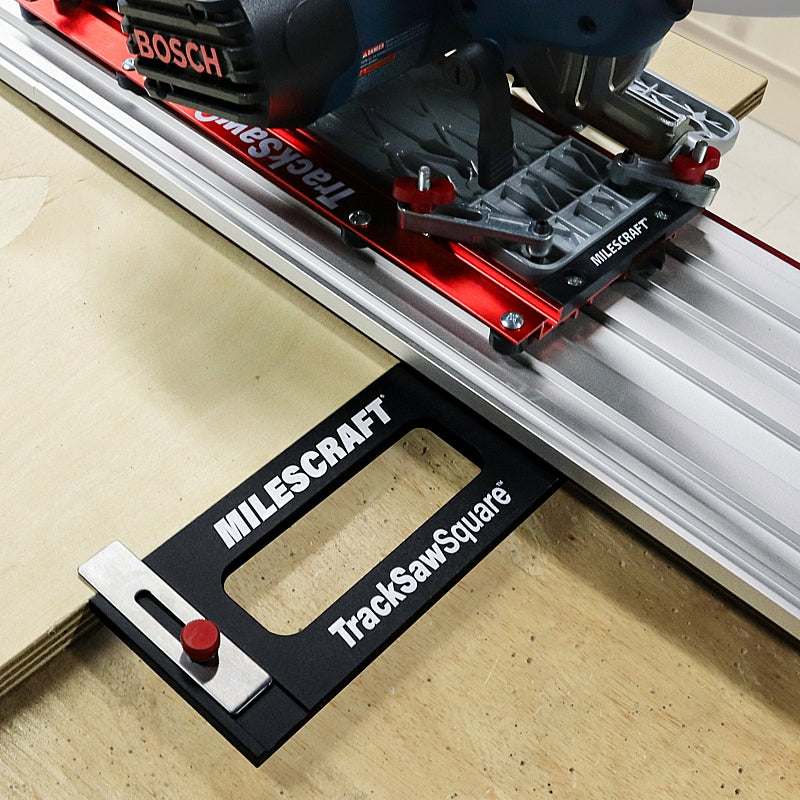

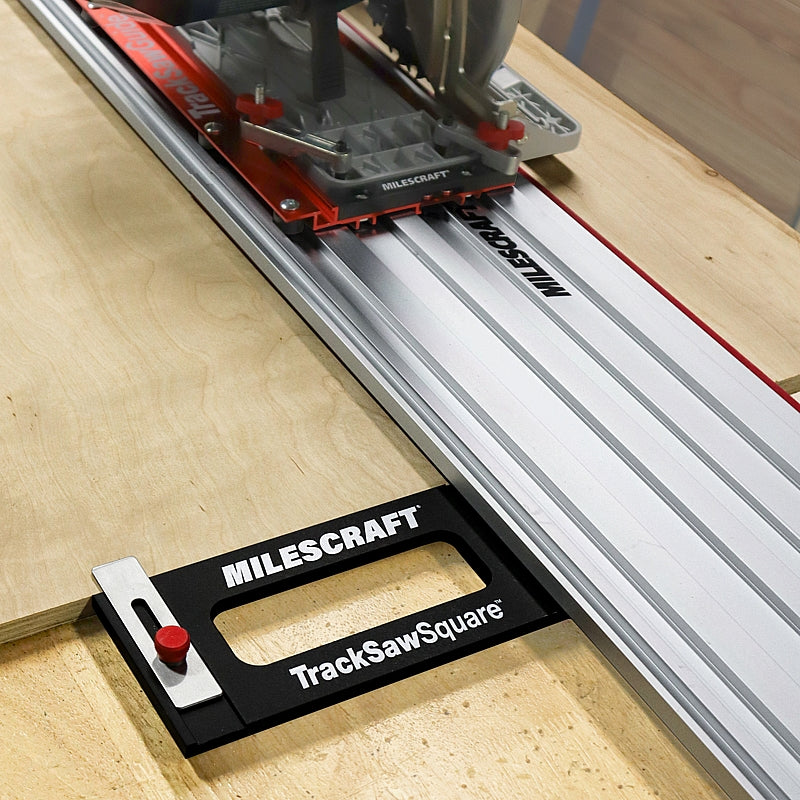

The Milescraft TrackSawSquare™ increases both speed and accuracy when producing square 90° cuts with a track saw setup. It connects quickly to the underside of the proprietary Milescraft guide rail and, through trapezoid alignment ridges, pulls itself into perfect square alignment against the edge of the workpiece.

As a result, a single measurement mark allows full boards to be ripped straight and true from one end to the other. Moreover, the symmetrical design enables use on either end of the track saw system, providing added flexibility during setup. The low-profile body supports surface-mounted use on boards ½" (12.7 mm) thick and thicker, while the integrated anti-tip stabiliser helps prevent tipping by catching the edge of the workpiece during cutting.

Features & Benefits:

• Perfect 90° Alignment: Self-centering design pulls the guide rail square to 90° from the edge of the workpiece.
• Low-Profile Construction: Thin design reduces weight and allows use on boards ½" (12.7 mm) thick and above.
• Anti-Tip Stabiliser: Built-in stabiliser bar supports the workpiece and reduces tipping during cuts.

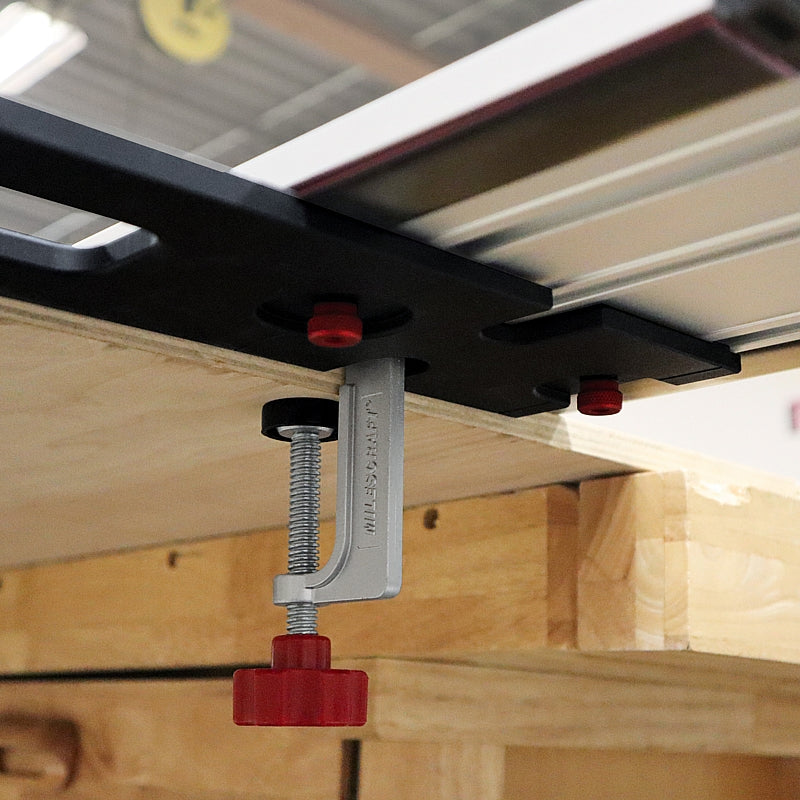

• Clamp Compatibility: Recessed notches allow use alongside Milescraft TrackClamps™.
• Symmetrical Design: Enables use on either end of the track saw setup.
• Exclusive Compatibility: Designed specifically for the 1408 and 1409 Milescraft® GuideRails™ and TrackSawGuide™ .

Specifications:

• Code: 1410
• Barcode: Not provided
• Material: Machined aluminium
• Length: 13-3/8" (340 mm)
• Width: 3-1/2" (89 mm)
• T-Bolt Thread: M6 × 1 × 12
• T-Bolt Head: 12.5 mm × 20 mm
• Compatible Tracks: 1408 GuideRails™, 1409 TrackSawGuide™, Kreg® Accu-Cut™
• Compatible Clamps: 4021 TrackClamps™ and 4025 CompactTrackClamps™

Scope of Delivery:

• Milescraft TrackSawSquare™ Edge Square

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
