Mini drain electronic 0.2-20lt/hr

Mini
Drain 20 electronic drain

Model GAV MD20

Remove the condensate

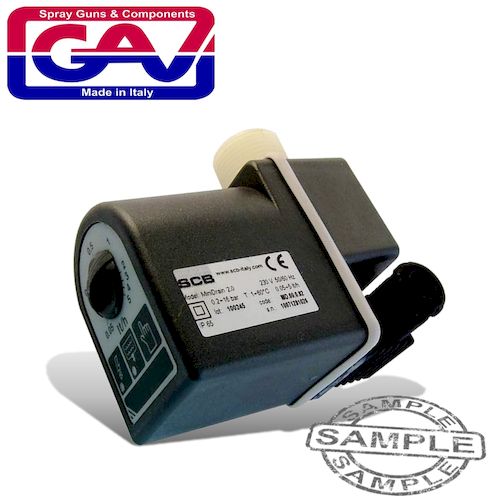

The MiniDrain consists of a servo-assisted solenoid valve that opens upon the command of an electronic circuit according to
drain capacity. Drain capacity is preset by means of a knob located on the control panel.

Regulation is extremely user's
friendly thanks to a scale setting in liters of condensate/hour to avoid any inappropriate calibration or a useless
waste of compressed air. Valve delivery remains even, independently from the pressure inside the system thanks to an
automatic flow regulator.

It is equipped with a test button for function check and two LED, one for 'voltage on' and the other for 'valve draining'.

• Timed electronic drain: 0.2 to 20 l/h capacity
• Suitable for intermediate compressors (200 m³/h max delivery)
• Suitable for small dryers (400 m³/h max)

Made in Italy
