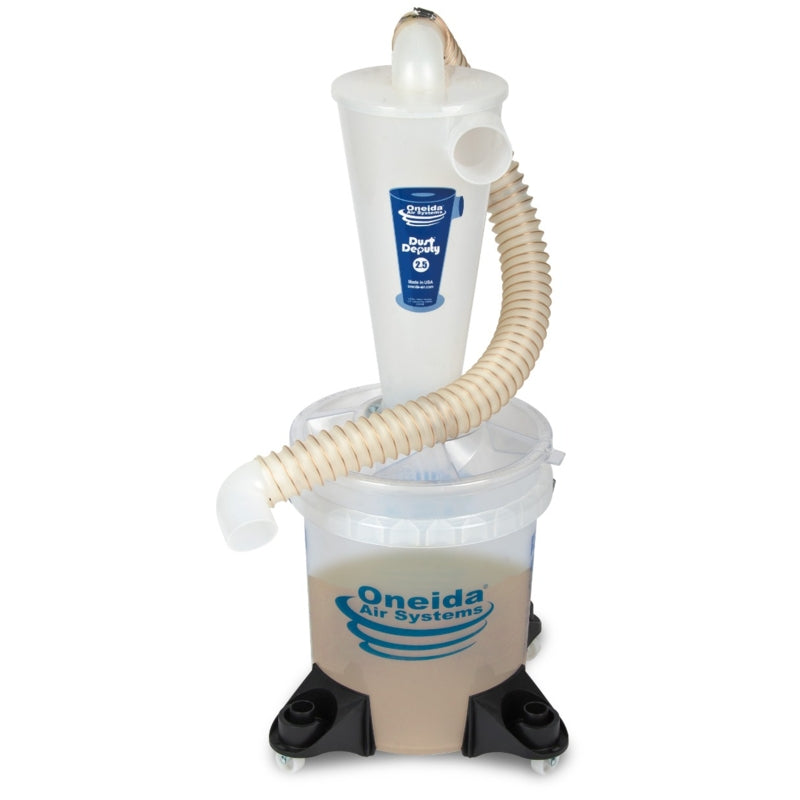

Oneida Dust Deputy 2.5 Deluxe All-Clear Cyclone Separator Kit | AXD250004

Oneida Dust Deputy 2.5 Deluxe All-Clear Cyclone Separator Kit | AXD250004.

The Oneida Dust Deputy 2.5 Deluxe All-Clear Cyclone Separator Kit features a high-airflow design optimized for larger wet/dry vacuums. It separates up to 99.9% of dust and debris before reaching the vacuum filter, preventing suction loss and extending filter life. The clear, collapse-proof 5-gallon (19L) bucket allows for easy monitoring of dust levels, while the compact, stable footprint with free-rotating casters ensures mobility and stability.

Anti-static components minimize static shocks, and the reinforced, quick-release lid makes emptying fast and convenient. Female inlet and outlet ports fit standard 2.5" (64mm) cuffed hoses, and the neutral-vane inlet improves separation performance by over 20% by reducing turbulence. The kit includes caster mounts with integrated accessory storage and is backwards compatible with a 3" (76mm) mounting flange for easy upgrades.

Features & Benefits:

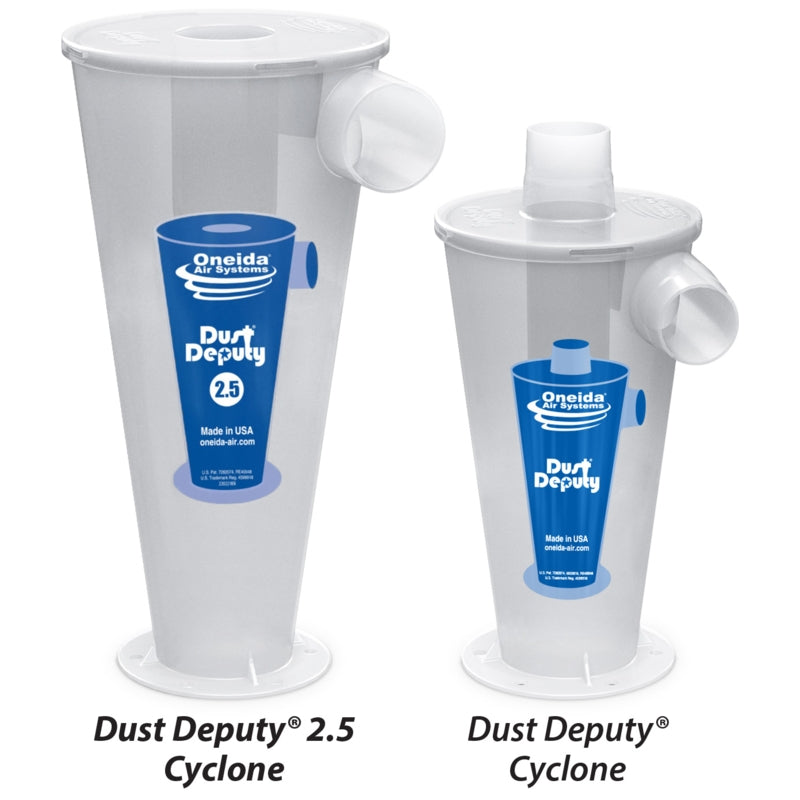

• High Airflow Design: Delivers up to twice the airflow of smaller cyclones and lid-style separators.
• Neutral-Vane Inlet: Improves separation efficiency by preventing swirling dust turbulence at the inlet.

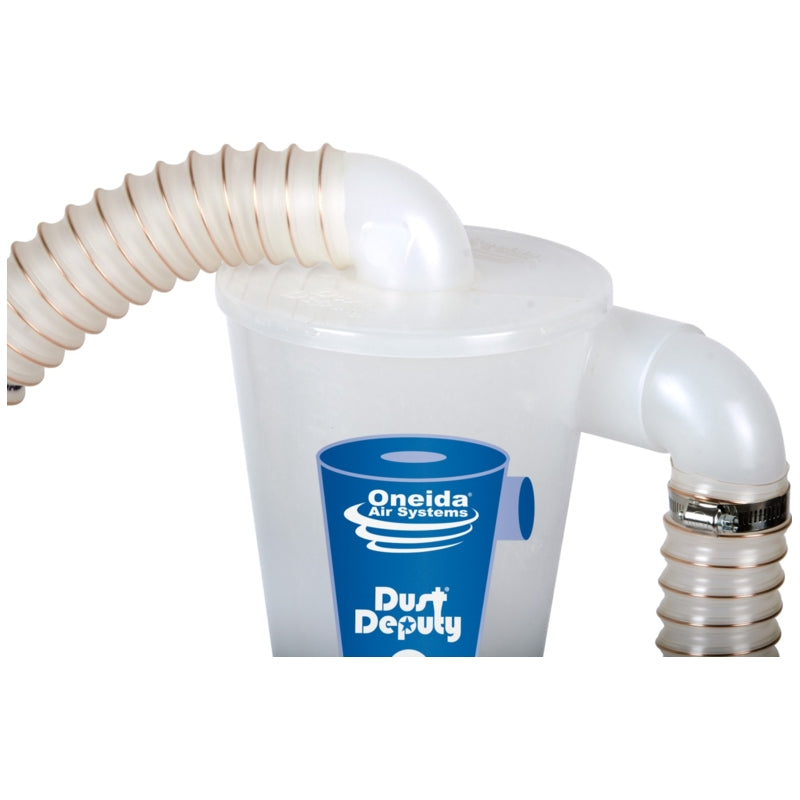

• Plug & Play Hose Connections: Female ports accept standard 2.5" (64mm) cuffed vacuum hoses.

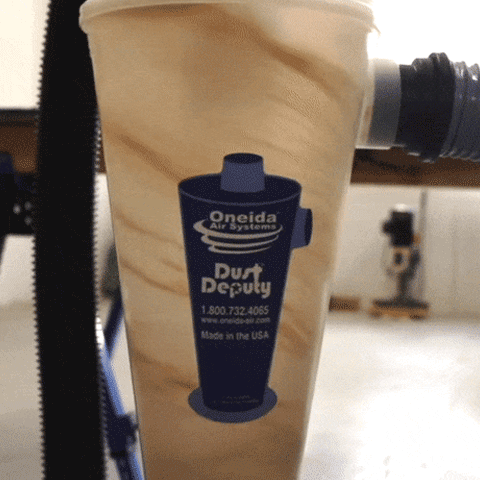

• High Visibility Components: Clear cyclone parts allow real-time monitoring of dust collection.
• Collapse-Proof Bucket: Thick, durable bucket withstands heavy vacuum pressure.
• Stable Base with Casters: Wide caster base enhances portability and stability, with on-board accessory storage.
• Anti-Static Materials: Safely dissipates static build-up and reduces risk of shocks.
• Proudly Made in USA: Designed and manufactured in the United States by skilled craftsmen.

Specifications:

Cyclonic Separation Efficiency: Removes over 99% of fine wood dusts
Waste Capacity: 5 Gallons (19L)
Inlet Size: Nominal 2.25" I.D. / 2.5" O.D. (57mm / 64mm), Actual Tapered 2.31" to 2.29" I.D. (59mm to 58mm)
Outlet Size: Nominal 2.25" I.D. (57mm), Actual Tapered 2.31" to 2.29" I.D. (59mm to 58mm)
Discharge Size: 3" I.D. (76mm)
Primary Build Materials: Polypropylene, Polyethylene
Static Resistance Rating: Anti-Static
Color: Translucent
Width: 17-3/4" (451mm)
Depth: 13-1/2" (343mm)
Height: 32-1/8" (816mm)
Height to Center of Inlet: 30-1/4" (769mm)
Actual Weight: 9.75 kg

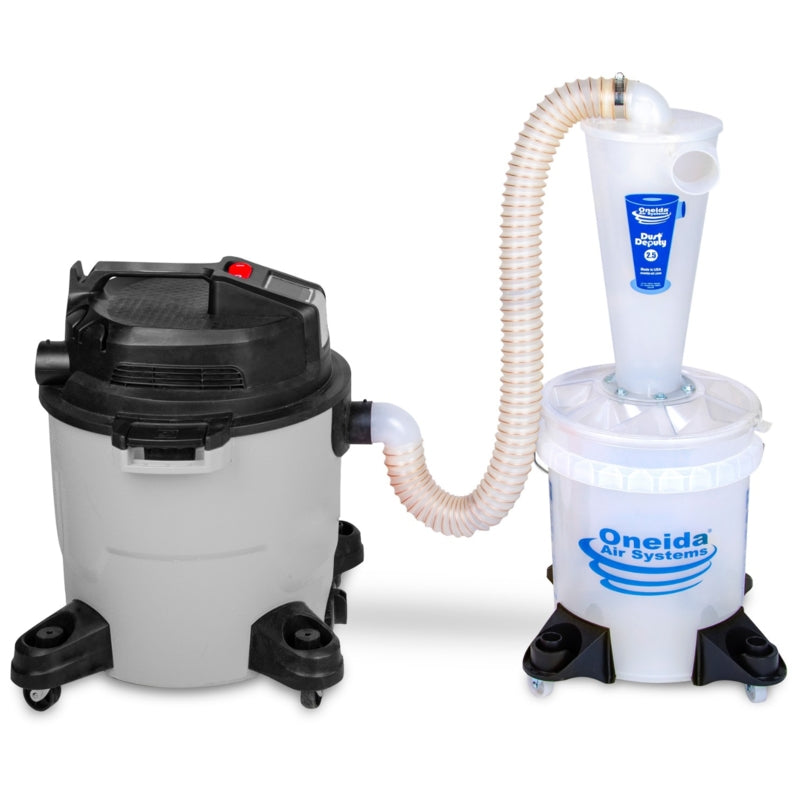

Product Compatibility: Wet/Dry Vacuums with 2.5" (64mm) hoses and inlets
Manufacturer: Oneida Air Systems
Warranty Information: 1 Year Limited Warranty

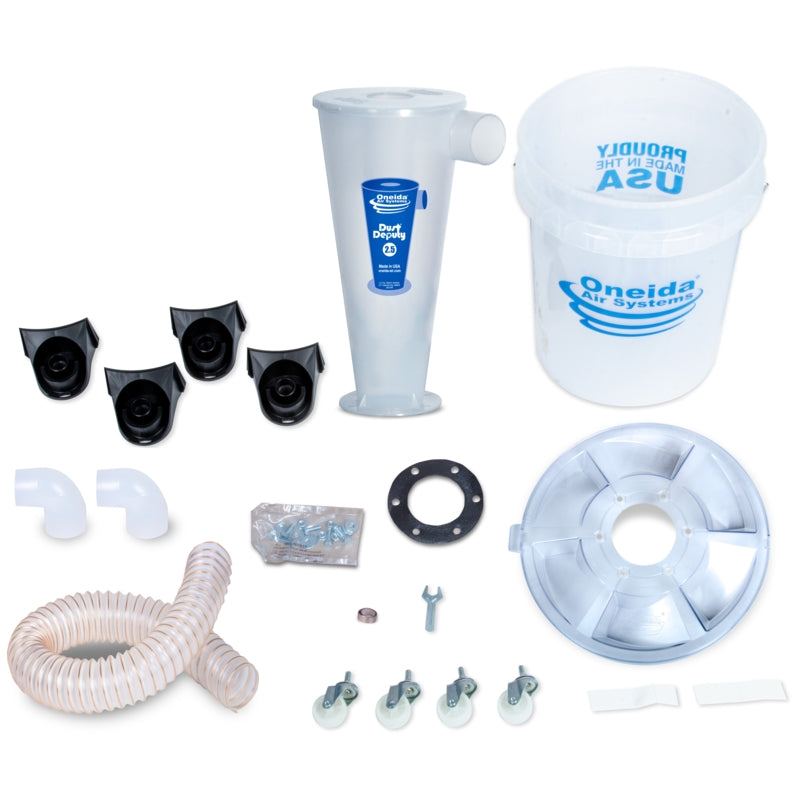

Scope of Delivery:

• 1 x Anti-Static Dust Deputy Cyclone Pre-Separator

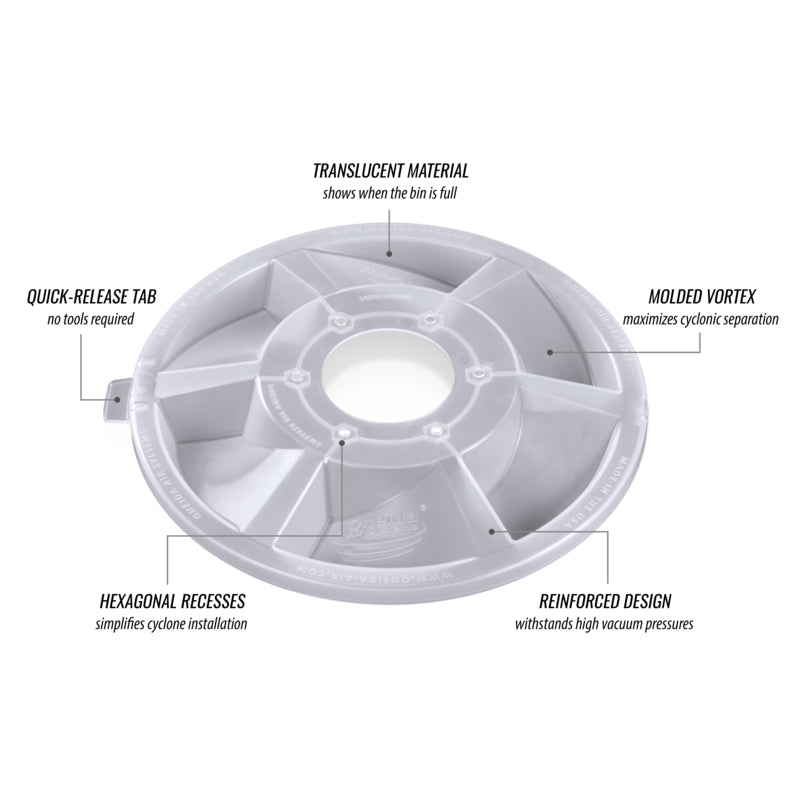

• 1 x Quick-Release Bucket Lid with Cyclonic Design
• 1 x Clear Collapse-Proof 5-Gallon Dust Bucket
• 4 x Caster Mounts with On-Board Accessory Storage
• 4 x Free-Rotating Caster Wheels
• 1 x Vacuum Connection Tether Kit
• 1 x 2" x 3' Wire-Reinforced Vacuum Connection Hose
• 2 x Tapered Hose Elbow Adapters
• Pre-cut Neoprene Foam Gasket
• Hardware

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
