Oneida Dust Deputy 2.5 Deluxe Cyclone Separator Kit, 17 Gal. | AXD250017

Oneida Dust Deputy 2.5 Deluxe Cyclone Separator Kit, 17 Gal. | AXD250017.

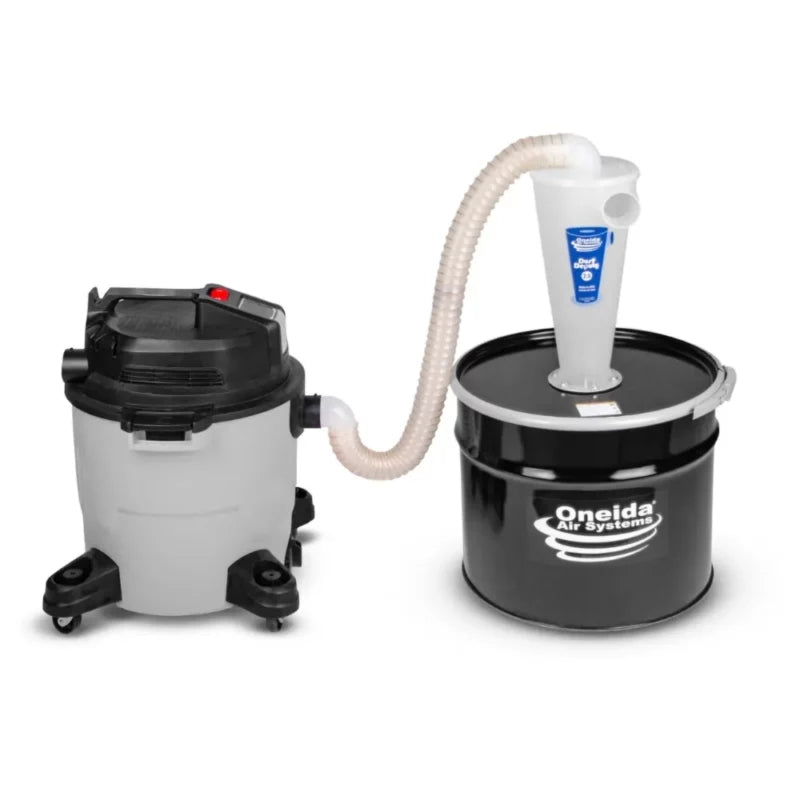

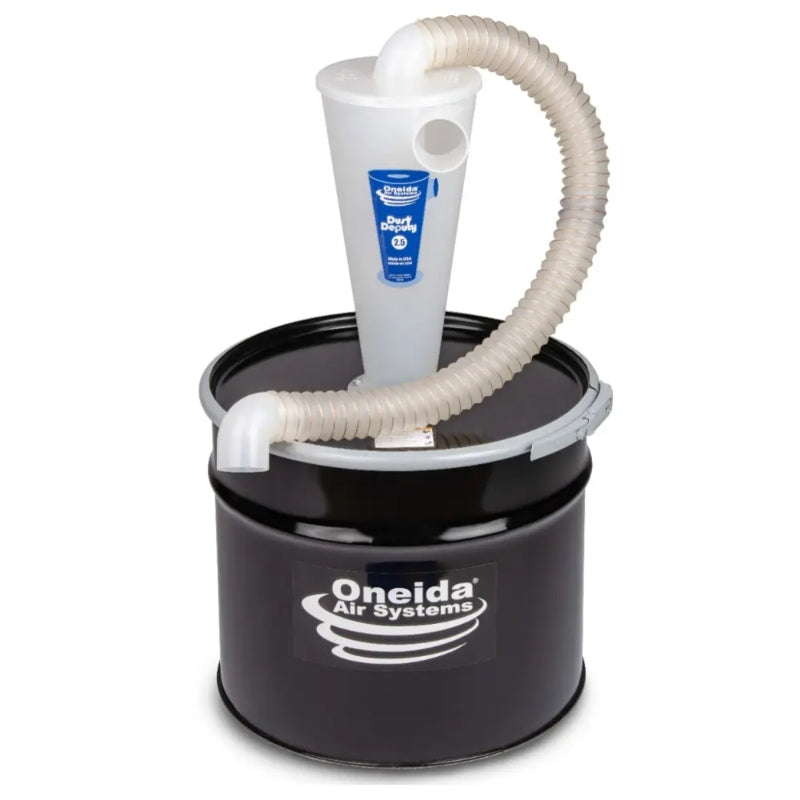

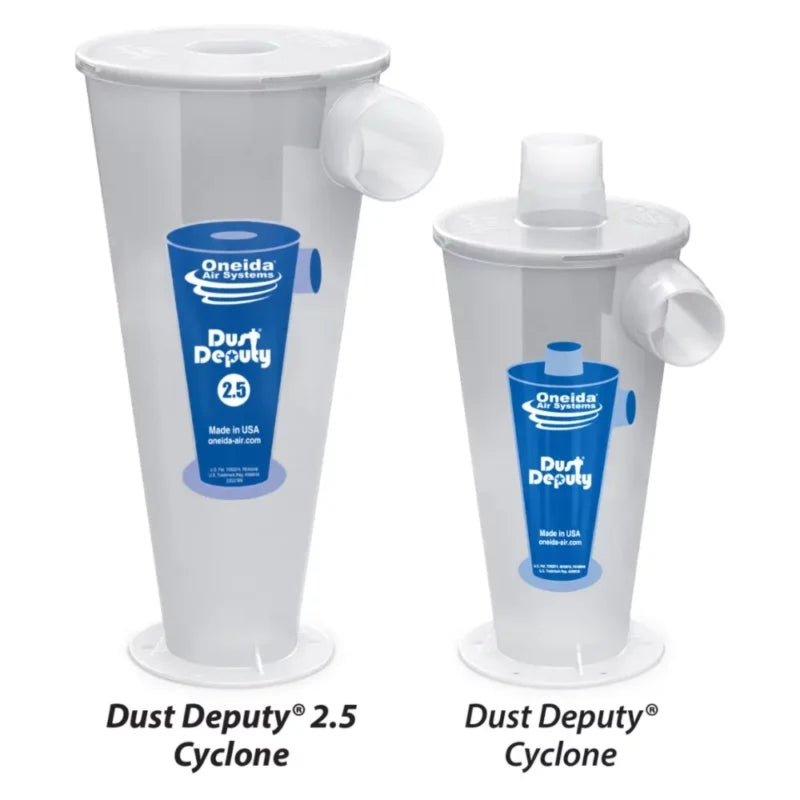

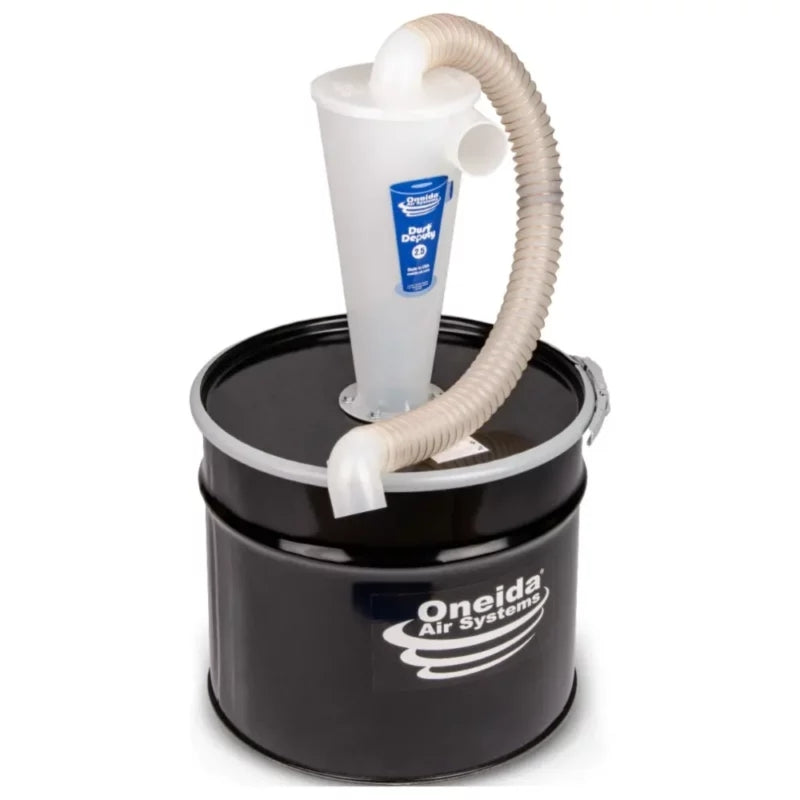

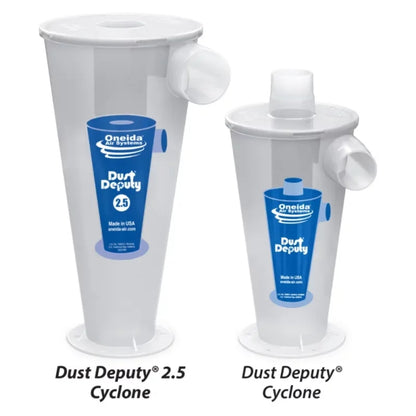

The Oneida Dust Deputy 2.5 Deluxe Cyclone Separator Kit offers woodworkers and DIY enthusiasts an effective and affordable solution for dust control. By using centrifugal force, the Dust Deputy separates dust and debris from the airstream, preventing clogged filters and suction loss. This larger cyclone is optimised for powerful wet/dry vacuums, delivering up to double the airflow of smaller separators, while the neutral-vane inlet improves separation performance by over 20%.

The kit is designed for plug-and-play installation with female inlet and outlet ports that accept 2.5″ cuffed hoses. Anti-static materials safely convey static build-up, reducing the risk of harmful discharges and static cling. Proudly made in the USA, this cyclone ensures reliable and durable performance, helping you maintain a cleaner, safer workshop environment.

Features & Benefits:

• High Airflow Design: Accommodates powerful wet/dry vacuums, delivering up to twice the airflow and reducing pressure drop.
• Neutral-Vane Inlet: Improves separation performance by over 20% by directing the airstream and preventing turbulence.

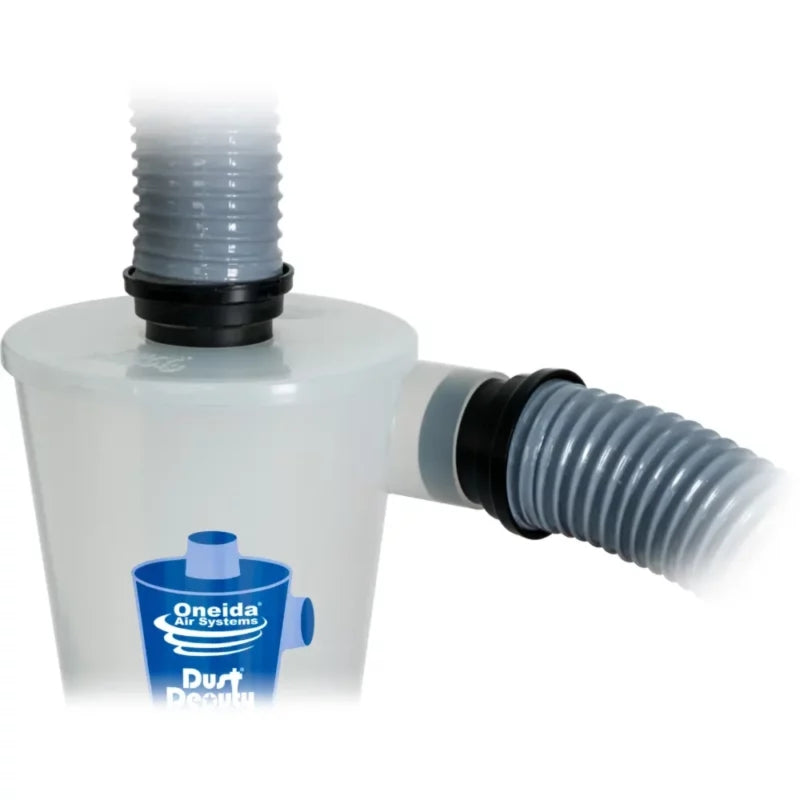

• Plug & Play Hose Connections: Female inlet and outlet ports fit standard 2.5″ cuffed hoses for simple installation.
• Anti-Static Materials: Safely convey static electricity to prevent harmful discharges and static cling.
• Durable Build: Constructed from steel and polypropylene with a 22-gauge drum body for long-lasting performance.
• Proudly Made in the USA: Designed, tested, and manufactured by craftsmen for craftsmen with full quality assurance.

Specifications:

SKU: AXD250017
Cyclonic Separation Efficiency: Removes over 99% of fine wood dusts
Waste Capacity: 17 Gallons (64.3 litres)
Inlet Size: Nominal 2.25″ I.D. / 2.5″ O.D. (58mm / 63.5mm), Actual Tapered 2.31″ to 2.29″ I.D. (58.7–58.1mm)
Outlet Size: Nominal 2.25″ I.D. (58mm), Actual Tapered 2.31″ to 2.29″ I.D. (58.7–58.1mm)
Discharge Size: 3″ I.D. (76.2mm)
Primary Build Materials: Steel, Polypropylene
Thickness: 22 Gauge (Drum Body)
Static Resistance Rating: Anti-Static
Color: Clear
Width: 20-1/2″ (521mm)
Depth: 20-1/2″ (521mm)
Height: 31-1/8″ (791mm)
Height to Center of Inlet: 29-3/8″ (746mm)
Actual Weight: 24 kg
Product Compatibility: Wet/Dry Vacuums with 2.5″ hoses and inlets
Manufacturer: Oneida Air Systems
Warranty Information: 1 Year Limited Warranty

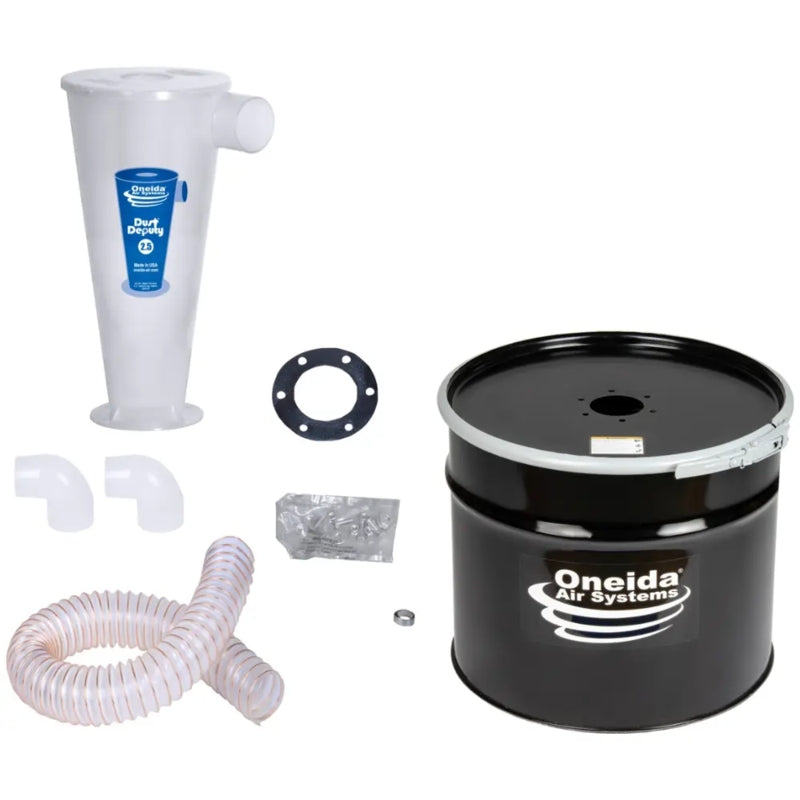

Scope of Delivery:

• 1 x Anti-Static Dust Deputy 2.5 Cyclone Pre-Separator
• 1 x Steel 17-Gallon Dust Bin with Locking Lever Clamp
• 1 x 2″ × 3′ Wire-Reinforced Vacuum Connection Hose
• 2 x Tapered Hose Elbow Adapters
• 1 x Pre-cut Neoprene Foam Gasket and Hardware

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
