Oneida Dust Deputy 2.5 DIY Cyclone Separator | AXD251004

Oneida Dust Deputy 2.5 DIY Cyclone Separator | AXD251004.

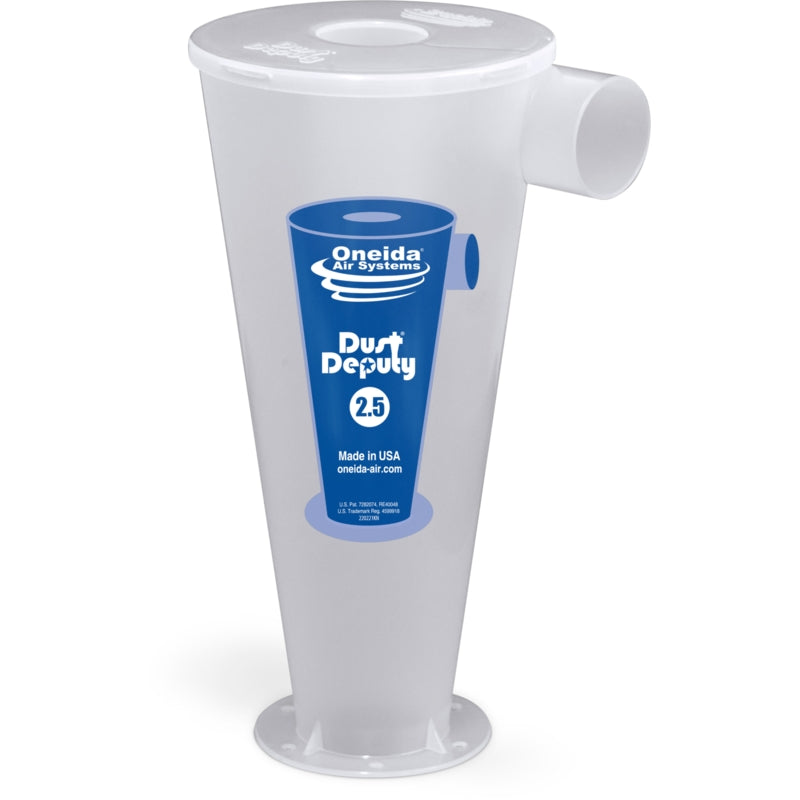

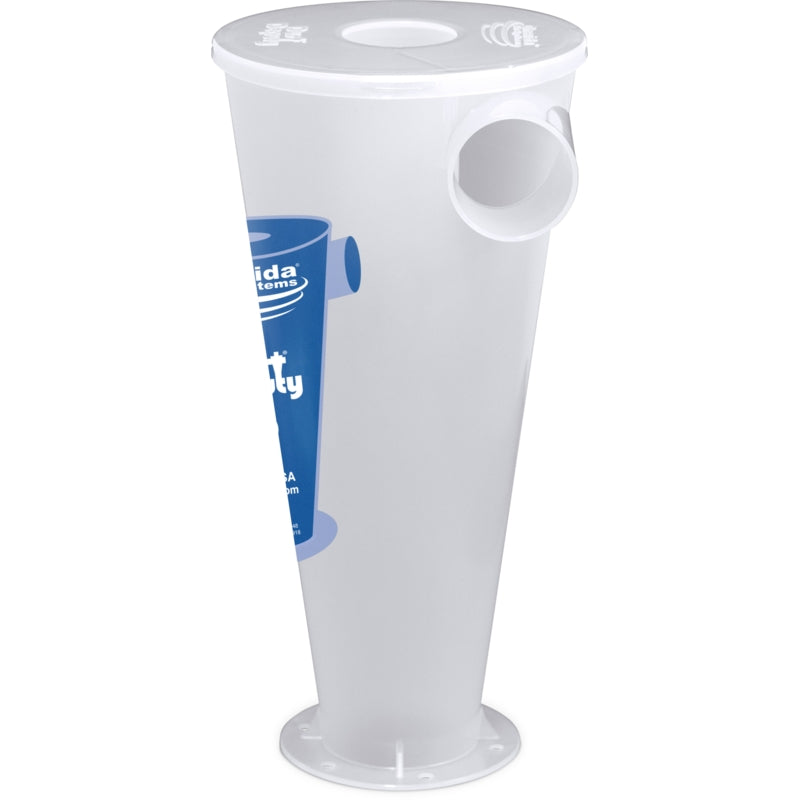

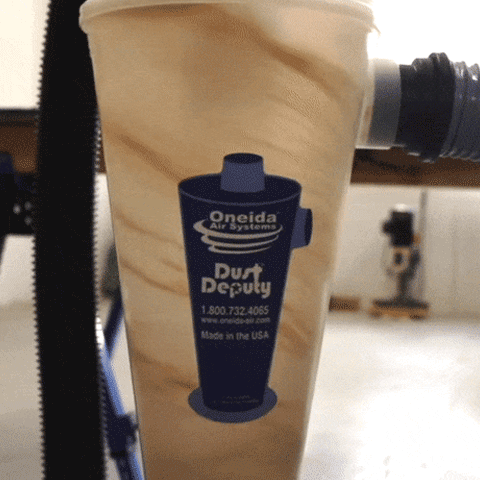

The Oneida Dust Deputy 2.5 DIY Cyclone Separator features a larger, high-airflow design optimized for today's wet/dry vacuums. It uses centrifugal force to separate up to 99.9% of dust and debris from the airstream before it reaches the vacuum filter, preventing suction loss and filter clogging. This ensures your vacuum maintains peak performance while saving time and money on replacement filters.

Clear, anti-static components improve visibility and reduce static shocks. The cyclone is backwards compatible with a 3" (76mm) mounting flange, allowing easy upgrades to existing setups. Female inlet and outlet ports fit standard 2.5" (64mm) cuffed hoses, enabling simple plug-and-play installation with any reinforced airtight container. A neutral-vane inlet directs airflow efficiently, improving overall separation by over 20% compared to cyclones without this feature.

Features & Benefits:

• High Efficiency Separation: Removes over 99% of fine dusts and debris before reaching the vacuum filter.

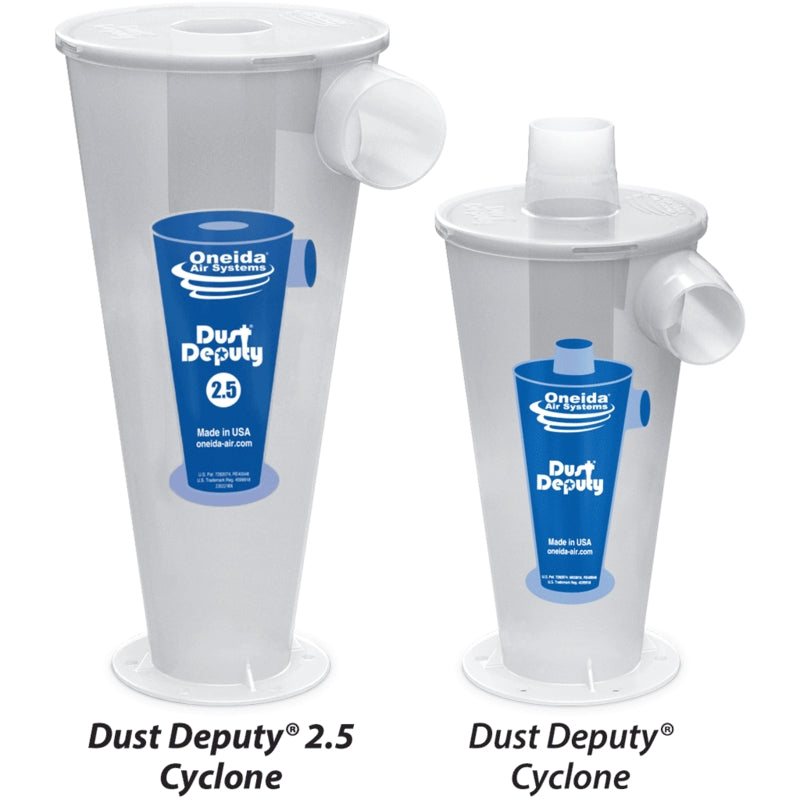

• Optimized Airflow: Larger design delivers up to twice the airflow of smaller cyclones and lid-style separators.
• Backwards Compatible: 3" (76mm) mounting flange allows quick upgrade of existing systems.
• Neutral-Vane Inlet: Improves separation performance by preventing turbulence at the inlet.

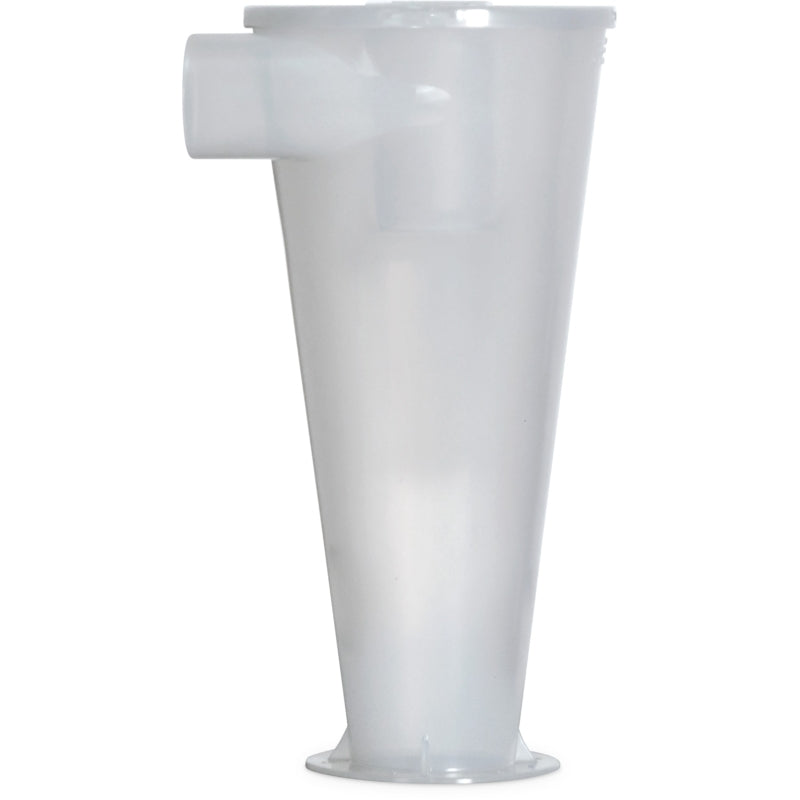

• Clear, Anti-Static Materials: Provides visibility of collected dust and reduces static electricity buildup.

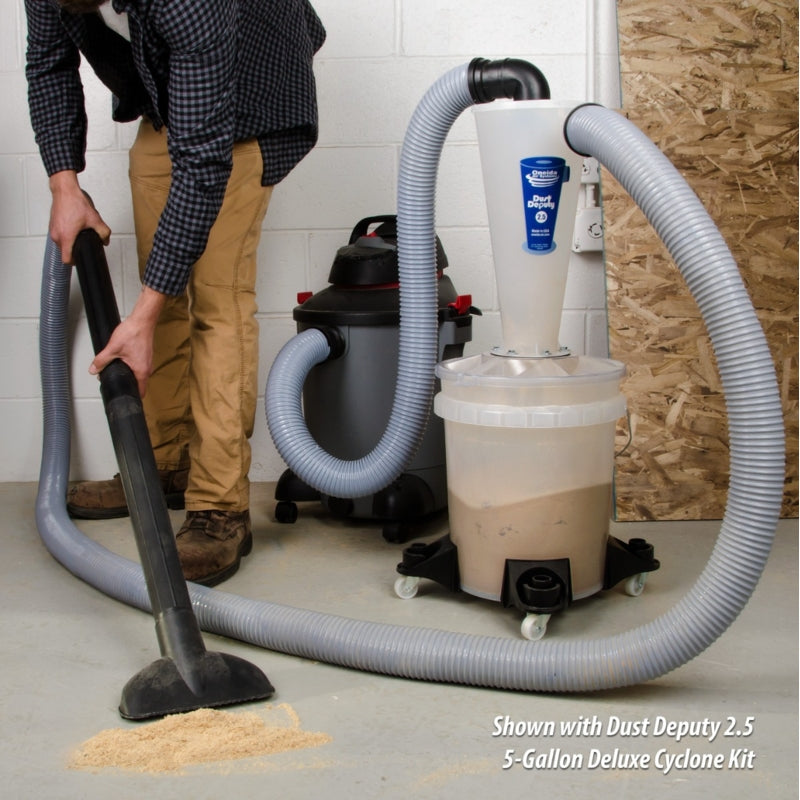

• Flexible DIY Installation: Can mount to any shape or size airtight container with included hardware.

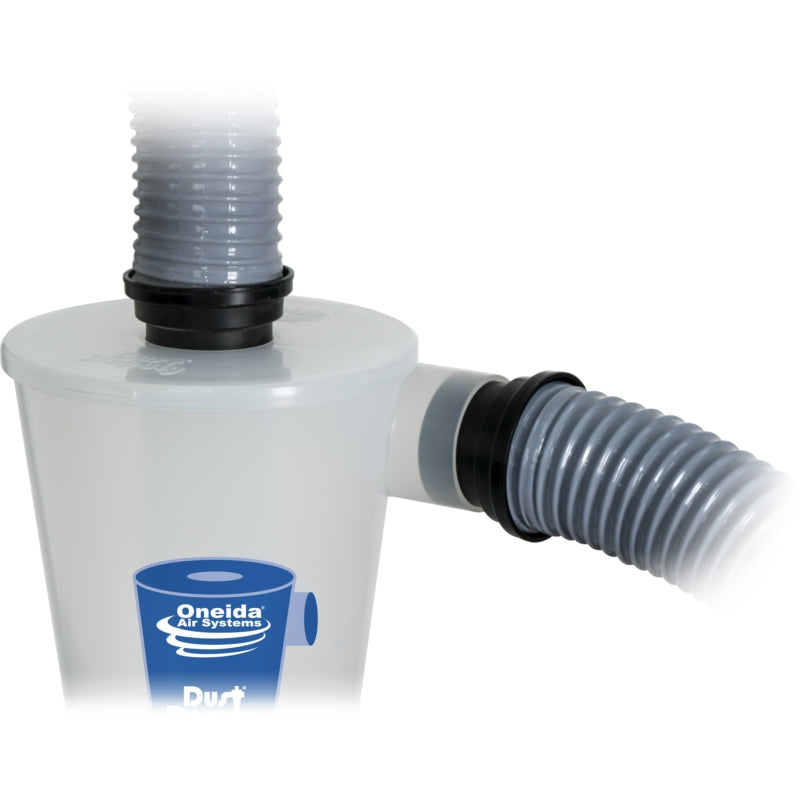

• Plug & Play Hose Connections: Female ports readily accept 2.5" (64mm) cuffed vacuum hoses.

Specifications:

Cyclonic Separation Efficiency: Removes over 99% of fine wood dusts
Waste Capacity: Customizable

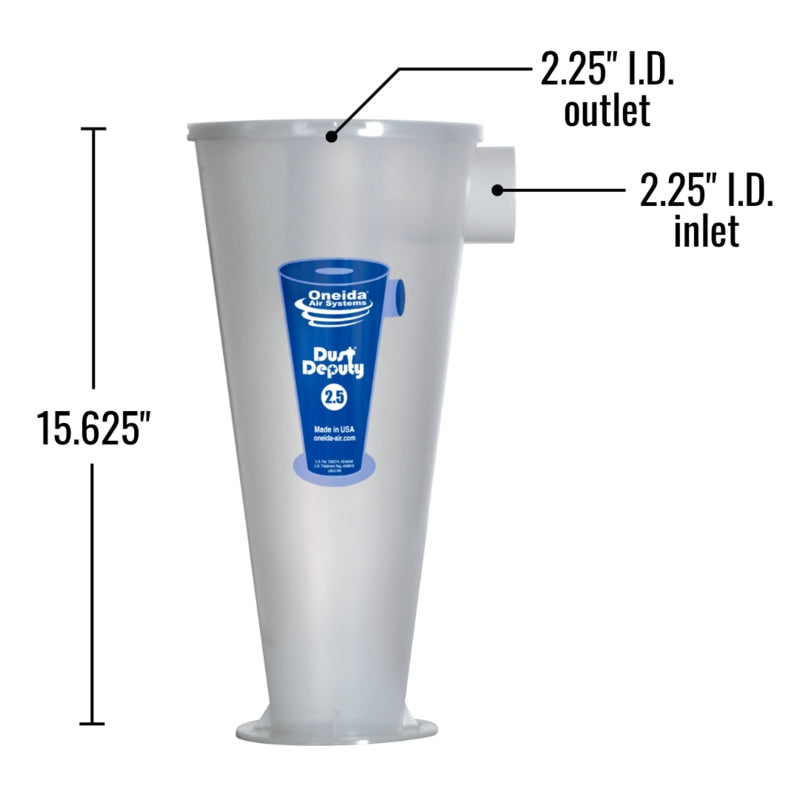

Inlet Size: Nominal 2.25" I.D. / 2.5" O.D. (57mm / 64mm), Actual Tapered 2.31" to 2.29" I.D. (59mm to 58mm)
Outlet Size: Nominal 2.25" I.D. (57mm), Actual Tapered 2.31" to 2.29" I.D. (59mm to 58mm)
Discharge Size: 3" I.D. (76mm)
Primary Build Materials: Polypropylene
Static Resistance Rating: Anti-Static
Color: Translucent
Width: 7.625" (194mm)
Depth: 8.5" (216mm)
Height: 15.625" (397mm)
Height to Center of Inlet: 13.75" (349mm)
Actual Weight: 2.5 kg
Product Compatibility: Wet/Dry Vacuums with 2.5" (64mm) hoses and inlets

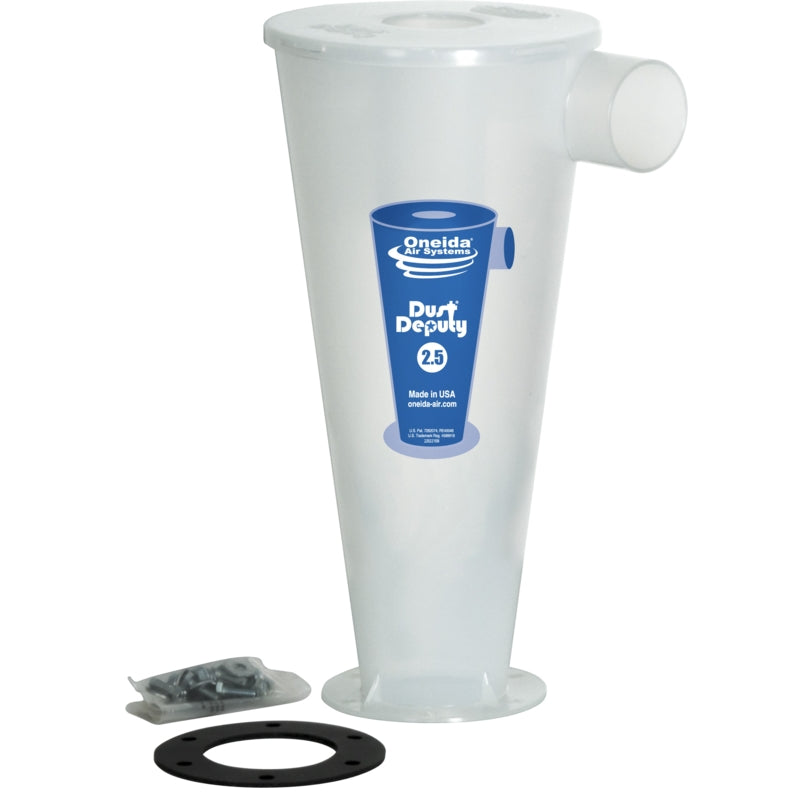

Contents: Cyclone, Mounting Hardware, Pre-cut Neoprene Foam Gasket
Manufacturer: Oneida Air Systems
Warranty Information: 1 Year Limited Warranty

Scope of Delivery:

• 1 x Anti-Static Dust Deputy 2.5 DIY Cyclone Separator
• 1 x Pre-cut Neoprene Foam Gasket
• Mounting Hardware

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
