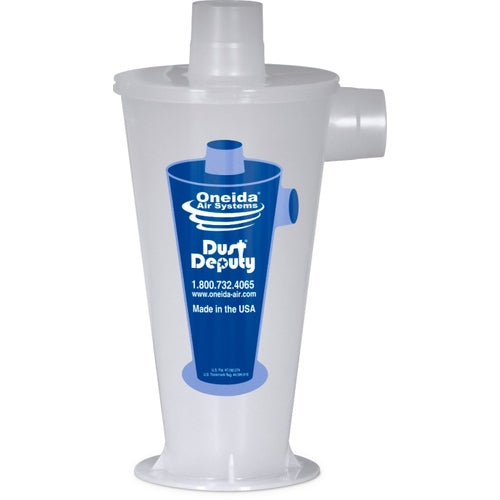

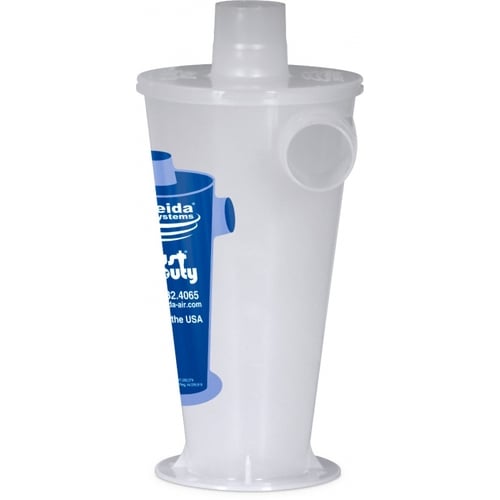

Oneida Dust Deputy DIY Cyclone Separator | AXD001004

Oneida Dust Deputy DIY Cyclone Separator | AXD001004.

Build Your Own Two-Stage Vacuum System.

The original and still the best! Now 20% more efficient with Neutral Vane Technology, our Dust Deputy® DIY (Do-It-Yourself) cyclone lets you build the dust control system that works best for you. You supply the waste container, the hardware, the hose, etc. while we provide our award-winning cyclone separator! With the DIY cyclone you're limited only by your imagination!

Injection molded from a translucent anti-static resin, the patented design of Oneida Air Systems' Dust Deputy cyclone uses centrifugal force to capture and remove 99% of dust and debris from the air-stream before it reaches your vacuum's filter, eliminating clogged filters and suction loss!

How Does the Dust Deputy Work?

The Dust Deputy will save you significant time and money on expensive replacement vacuum filters and dust bags, and keeps your wet/dry vac operating at peak performance! This simple and efficient design can be adapted for use with any make, size, or model shop vacuum and features tapered 2.0" ports that fit the cuffed 2.5” hoses that come standard with most shop vacuums.

Features:

• Upgrades any make/model shop vacuum with 1.5" to 2.5" hose fittings.
• Neutral-vane technology improves separation efficiency by 20%.
• Mounts to any size and type of reinforced, airtight container.
• Anti-static components significantly reduce the likelihood of static shocks.

Works With Nearly Any Type of Material:

• Wood Dust
• Drywall Dust
• Concrete Dust
• Clay/Silica Dust
• Blasting Soda
• Cooled Ash & Soot
• Water
• Metal Shavings
• Baking Flour
• Grass & Leaves
• Pet/Animal Hair
• Pharmaceutical Waste
• and much more!

Please Note: If used with a 5 gallon bucket, the bucket must be a minimum of 90 mils thick (0.09") or else it may collapse under vacuum pressure. Big box store buckets are not thick enough for use with the Dust Deputy

Technical Data:

Cyclonic Separation Efficiency: Removes over 99% of fine wood dusts
Airflow Rating: Minimum 50 CFM
Waste Capacity: Customizable
Inlet Size: 2" O.D. (Tapered) / 1-3/4" I.D.
Outlet Size: 2" O.D. (Tapered) / 1-3/4" I.D.
Discharge Size: 3" I.D.
Primary Build Materials: Polypropylene
Static Resistance Rating: Anti-Static
Color: Clear
Width: 8"
Depth: 6.75"
Height: 13.5"
Height to Center of Inlet: 9.75"

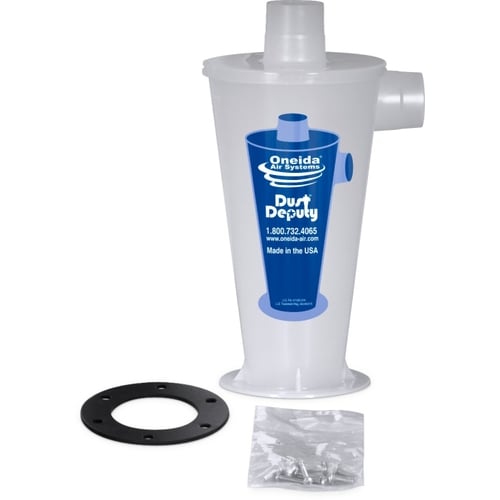

Contents: Cyclone, Mounting Hardware, Foam Gasket
Manufacturer: Oneida Air Systems
Manufacturer Statement: Made in USA
