Oneida Super Dust Deputy 4/5 Cyclone Separator | AXD002045

Oneida Super Dust Deputy 4/5 Cyclone Separator | AXD002045.

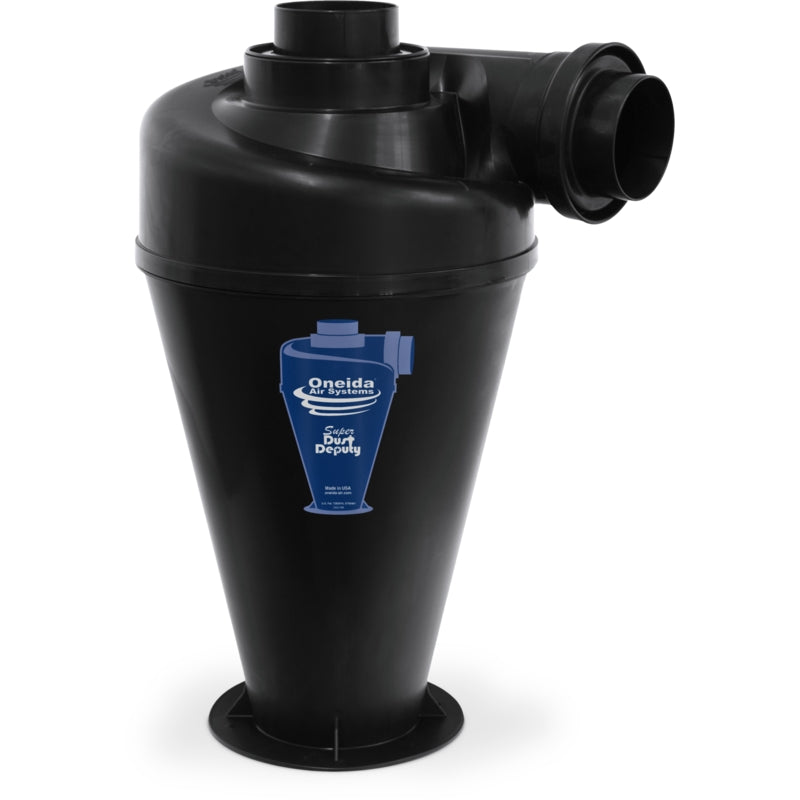

The Oneida Super Dust Deputy 4/5 Cyclone Separator is designed to improve the performance of 0.5–3HP single-stage dust collectors. By separating up to 99.9% of fine dust and debris from the incoming airstream, it prevents clogged filters, reduces suction loss, and protects your dust collector from damage caused by large wood chunks or hardware. This system prolongs the lifespan of your filter while keeping your workshop cleaner and safer.

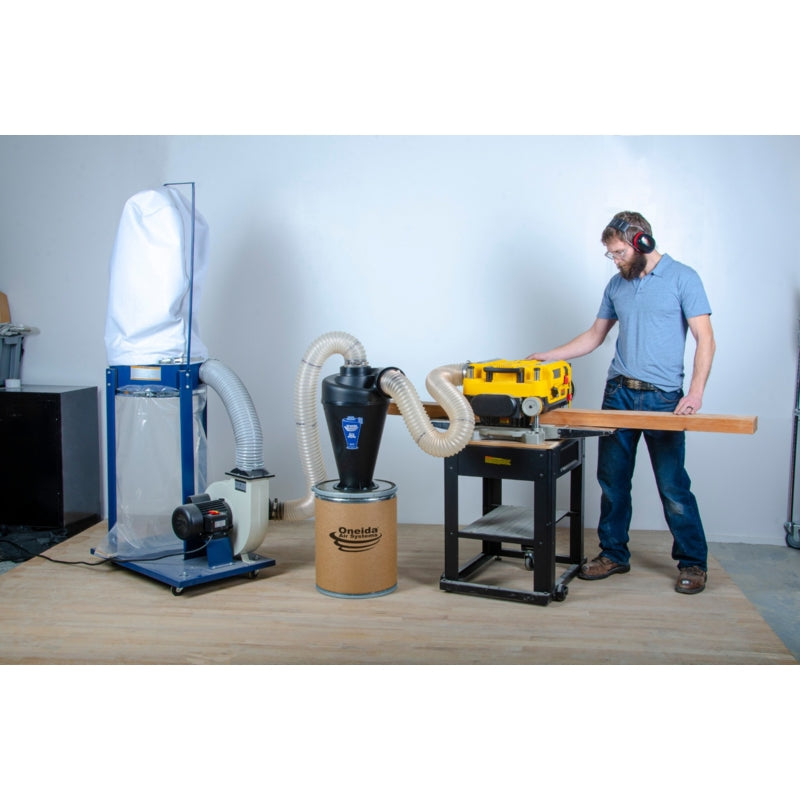

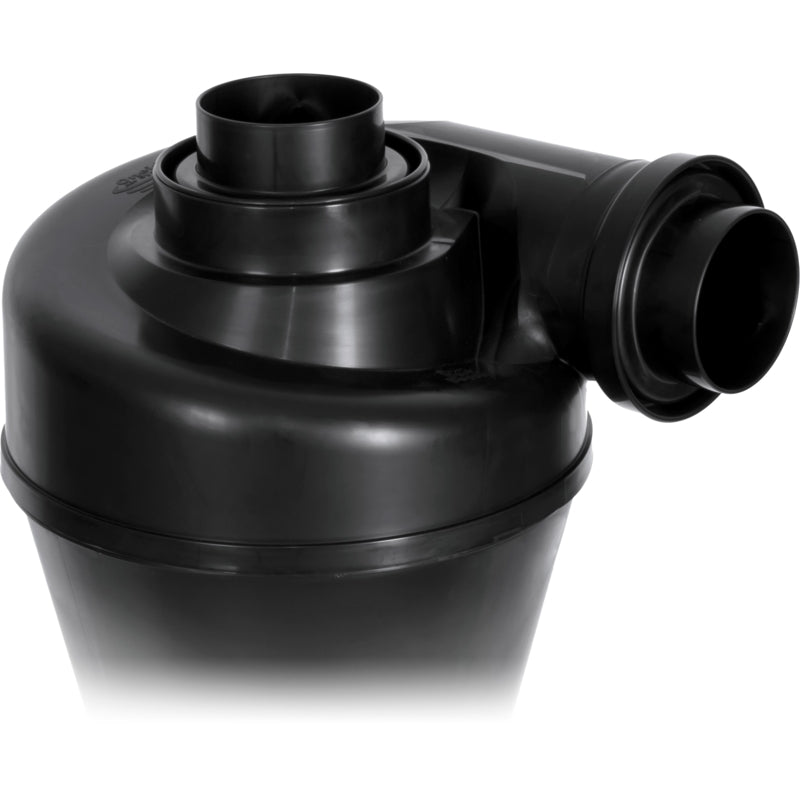

Engineered for compatibility with almost any make or model of dust collector, including Delta, Grizzly, Harbor Freight, and Jet, the cyclone features an integrated air ramp and neutral-vane inlet to minimize static pressure loss. Its tapered ports and included 4" reducer adapters allow easy friction-fit hose connections, while the static dissipative HDPE construction safely conveys static charges to the ground. Lightweight and compact, it installs quickly into most dust collection setups using 4"–6" ductwork and hoses.

Features & Benefits:

• High Efficiency Dust Separation: Removes over 99% of fine dust and debris before reaching your dust collector.
• Protects Collector & Filter: Prevents suction loss and filter clogging, extending filter lifespan.
• Customizable Waste Collection: Can be used with any suitable container supplied by the customer.
• Plug & Play Connections: Tapered ports and 4" reducer adapters allow fast, flexible installation.
• Static Dissipative Construction: Safely conveys static electricity to prevent harmful discharges.
• Compact & Lightweight: Designed for fast and simple setup in most hobbyist or light trade workshops.
• Robust Build: Molded from industrial, abrasion-resistant HDPE for light-duty materials.

Specifications:

Cyclonic Separation Efficiency: Removes over 99% of fine wood dusts
Horsepower Rating: 0.5hp – 3hp
Airflow Rating: Minimum 350 CFM (9.9 m³/min)
Waste Capacity: Customizable

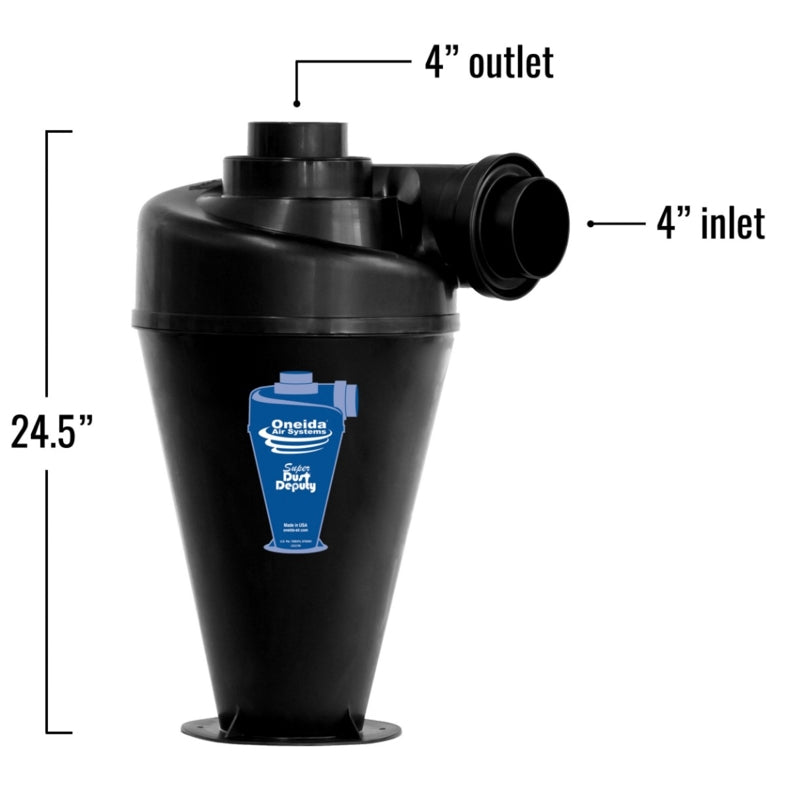

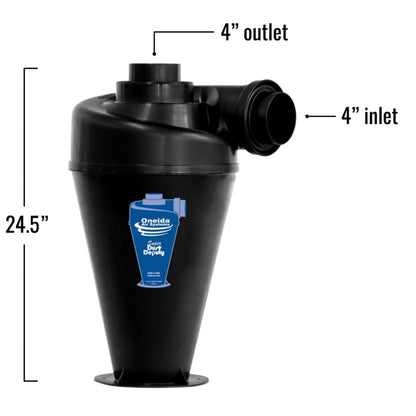

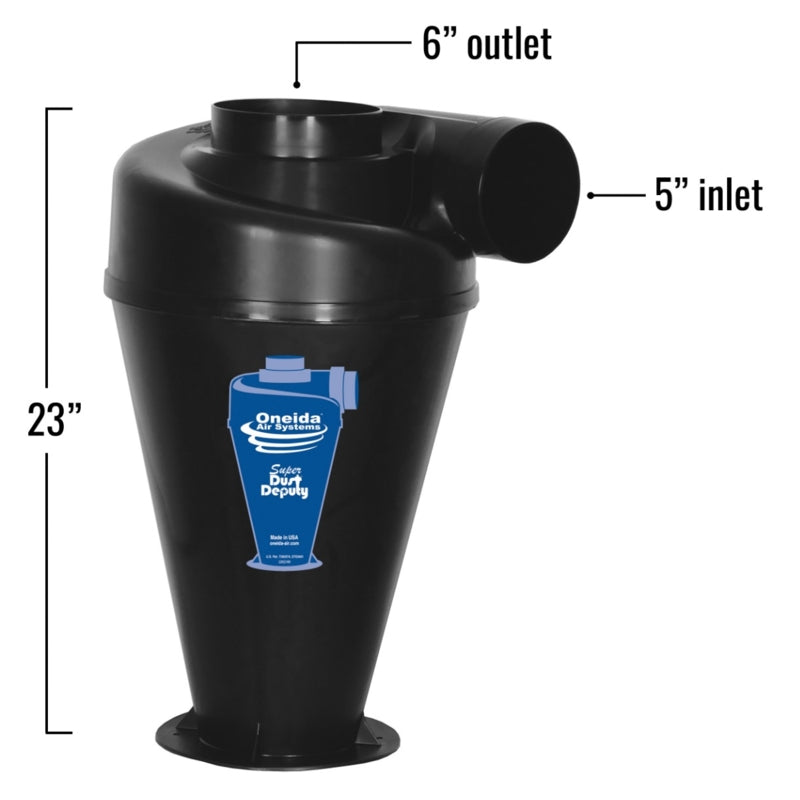

Inlet Size: Without Adapters: 5" O.D., 4-3/4" I.D. (127mm / 121mm), With Adapters: 4" O.D., 3-3/4" I.D. (102mm / 95mm)
Outlet Size: Without Adapters: 6" O.D., 5-3/4" I.D. (152mm / 146mm), With Adapters: 4" O.D., 3-3/4" I.D. (102mm / 95mm)
Discharge Size: 8-3/16" O.D., 6" I.D. (208mm / 152mm)
Primary Build Materials: Static Dissipative Polypropylene
Static Resistance Rating: Static Dissipative
Color: Black
Width: 14-1/4" (362mm)
Depth: 13-1/4" (337mm)
Height: Without Adapters: 23" (584mm), With Adapters: 24.5" (622mm)
Height to Center of Inlet: 20-3/8" (518mm)
Actual Weight: 7.7 kg
Product Compatibility: 1/2hp to 3hp Single-Stage Dust Collectors (Minimum 350 CFM)
Manufacturer: Oneida Air Systems
Warranty Information: 1 Year Limited Warranty

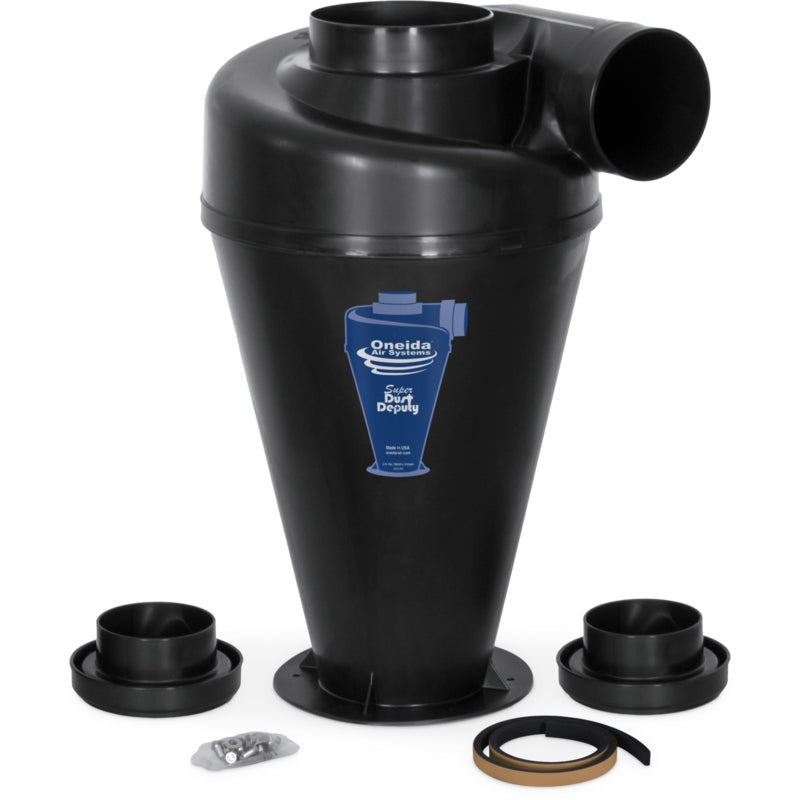

Scope of Delivery:

• 1 x Super Dust Deputy 4/5 Cyclone Separator
• 2 x 4" Reducer Adapters
• 1 x Gasket
• Hardware for lid mounting

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
