Optimum OPTIdrill DQ 14 Bench Drill, 350W (1-Ph) | DQ14

Optimum OPTIdrill DQ 14 Bench Drill, 350W (1-Ph) | DQ14.

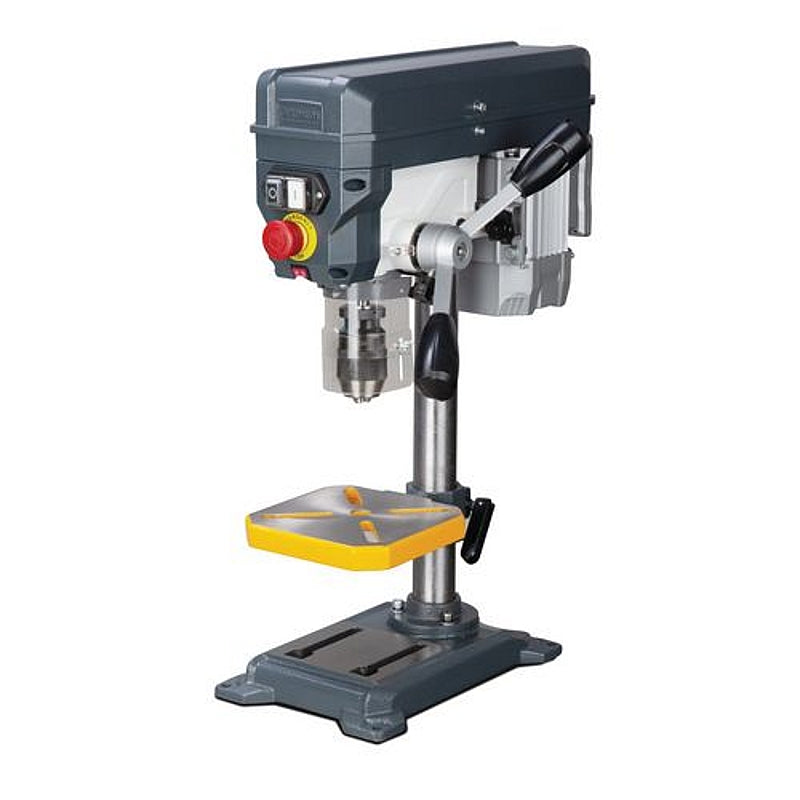

The Optimum OPTIdrill DQ 14 Bench Drill is designed to deliver precise and dependable drilling performance for workshop applications. It features a precision drilling spindle supported by pre-precision ball bearings, ensuring smooth operation and a guaranteed concentricity accuracy of less than 0.03 mm when measured in the drilling sleeve. Furthermore, the high-quality quick-action drill chuck allows for fast and convenient drill bit changes.

For greater versatility, the drilling table rotates through 360° and tilts up to ±45°, making it easier to position workpieces for a wide range of drilling tasks. In addition, the one-piece die-cast aluminium quill lever with soft-grip handles provides comfortable operation, while the clearly marked drilling depth scale enables accurate depth control.

The machine also incorporates practical safety features, including a separate emergency stop switch and 24 V DC safety electrics. Moreover, the drive system uses a high-quality GATES belt for reliable power transmission. The heavily ribbed base plate features two T-slots, providing a stable platform for securing workpieces and accessories during operation.

Features & Benefits:

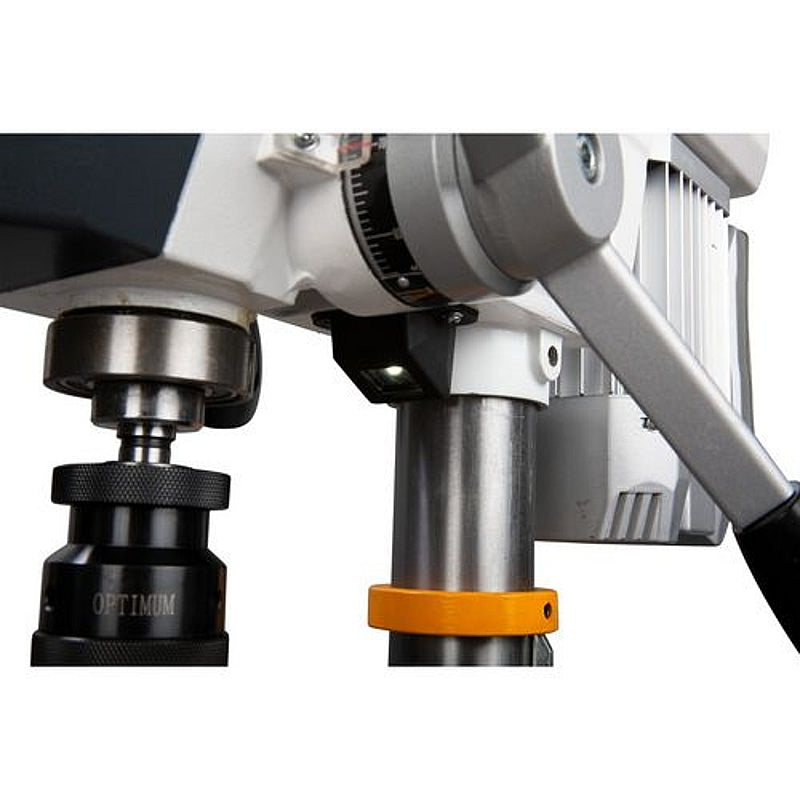

• Precision drilling spindle: Delivers accurate drilling performance with a guaranteed concentricity accuracy of less than 0.03 mm when measured in the drilling sleeve.
• Pre-precision ball bearings: Provide smooth spindle operation and reliable performance.
• Quick-action drill chuck: Allows fast and convenient drill bit changes.
• Adjustable drilling table: Rotates through 360° and tilts up to ±45° for greater drilling flexibility.

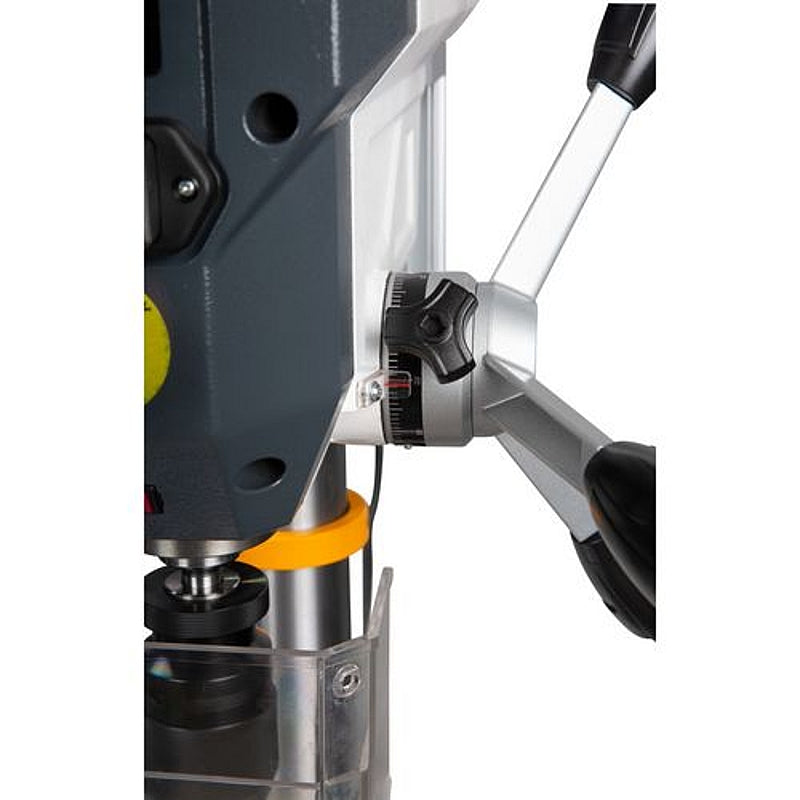

• Drilling depth scale: Enables accurate and repeatable drilling depths.
• One-piece die-cast aluminium quill lever: Features soft-grip handles for improved comfort and control.
• 24 V DC safety electrics: Enhance operational safety.
• Separate emergency stop switch: Provides quick access to stop the machine when required.

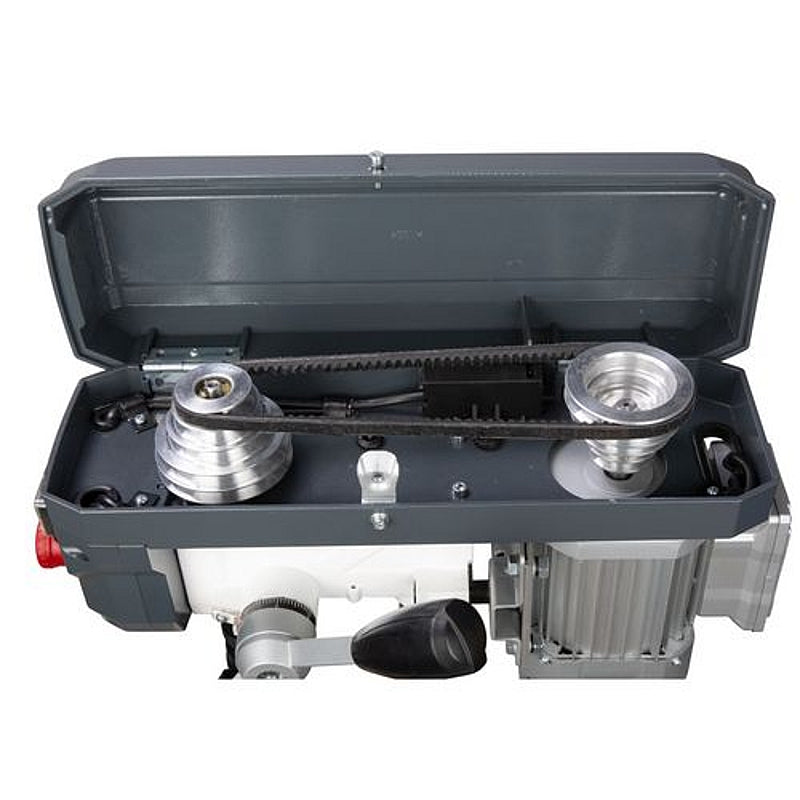

• GATES quality belt: Ensures dependable power transmission.
• Large ribbed base plate: Offers excellent stability and includes two T-slots for securing workpieces and accessories.

Specifications:

Code: DQ14
Drive Motor Output: 0.35 kW (350 W)
Supply Voltage: 230 V
Mains Frequency: 50 Hz
Speed Range: 700–2500 min¯¹
Number of Speed Steps: 5
Drilling Performance in Steel (S235JR): 13 mm
Continuous Drilling Performance in Steel (S235JR): 12 mm
Quill Stroke: 52 mm
Spindle Chuck: Solid/B16
Reach: 104 mm
Guaranteed Concentricity Accuracy: Less than 0.03 mm (measured in the drilling sleeve)
Column Diameter: 46 mm
Machine Length: Approx. 472 mm
Machine Width/Depth: Approx. 283 mm
Machine Height: Approx. 634 mm
Machine Weight: Approx. 18.5 kg
Drilling Table Workspace: 170 × 170 mm
Drilling Table Rotation: 360°
Drilling Table Tilt: ±45°
Drilling Table Load Capacity: 8 kg
T-Groove Type: Diagonal
T-Groove Size: 14 mm
Number of T-Grooves: 2
Maximum Distance from Spindle to Drilling Table: 250 mm
Maximum Distance from Spindle to Machine Base: 340 mm
Machine Base Work Area: 138 × 128 mm
Packaging Unit: 1 Piece

Scope of Delivery:

• OPTIdrill DQ 14 Bench Drill
• Quick-action drill chuck (1–15.9 mm)
• T-nuts

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
