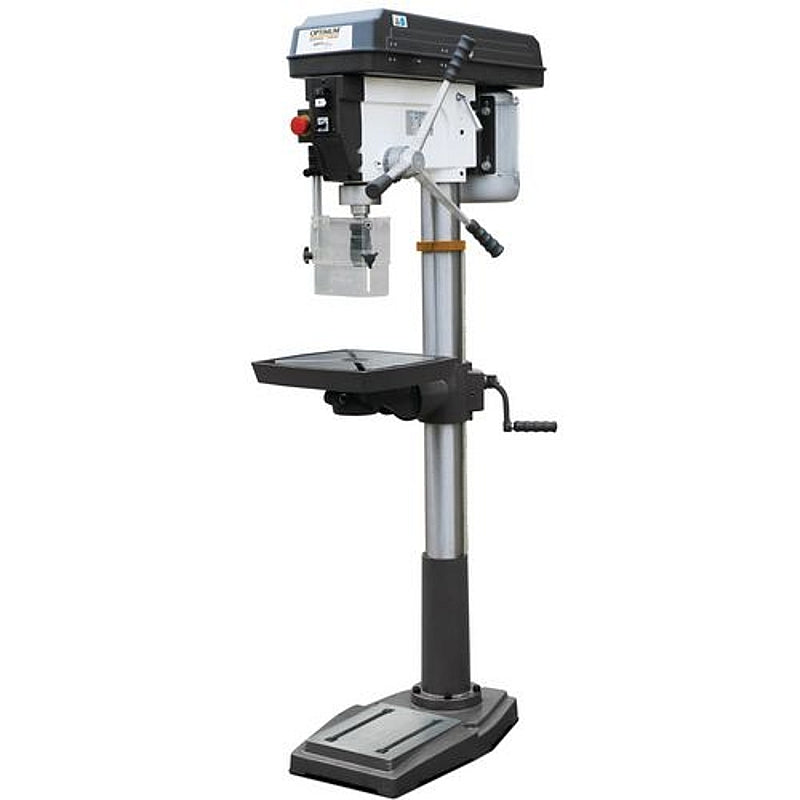

Optimum OPTIdrill DQ 32 Upright Drill, 1100W (3-Ph) | DQ32

Optimum OPTIdrill DQ 32 Upright Drill, 1100W (3-Ph) | DQ32.

The Optimum OPTIdrill DQ 32 Upright Drill is designed to deliver precise drilling performance and dependable operation in demanding workshop environments. The drill spindle runs on precision ball bearings and achieves a guaranteed concentricity accuracy of better than 0.03 mm when measured in the drill spindle, ensuring consistently accurate drilling results. Furthermore, the supplied quick-action drill chuck allows for fast and convenient drill bit changes.

The precisely machined drilling table rotates through 360° and tilts up to ±45°, providing excellent flexibility for positioning workpieces. In addition, the large, heavily ribbed base plate incorporates grooves to provide exceptional rigidity and stability during operation. Efficient power transmission is achieved through aluminium pulleys combined with a high-quality toothed GATES V-belt, while the ground multi-tooth driver contributes to reliable performance.

To enhance operator safety, the machine features an IP54-rated operating switch, a belt cover fitted with a safety switch, and a separate emergency stop push-button. Together, these features make the DQ 32 a dependable solution for precision drilling applications.

Features & Benefits:

• Precision drill spindle: Delivers highly accurate drilling with guaranteed concentricity accuracy better than 0.03 mm when measured in the drill spindle.
• Precision ball bearings: Ensure smooth spindle operation and long service life.
• Quick-action drill chuck: Enables fast and convenient drill bit changes.

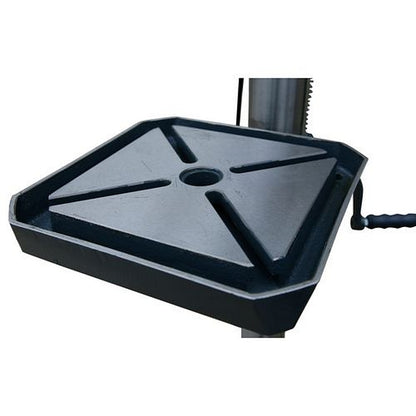

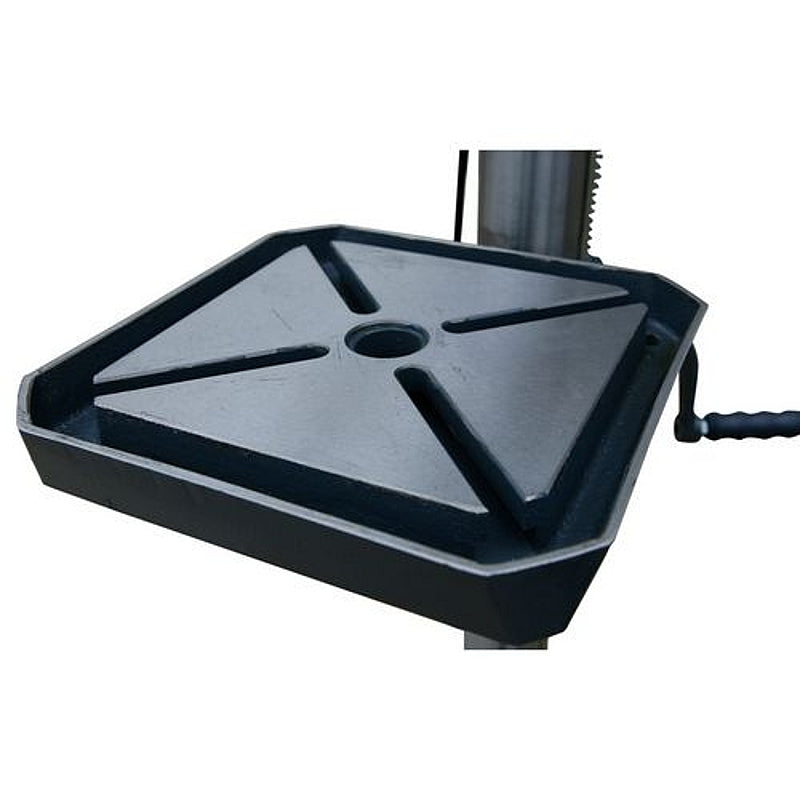

• Precision-machined drilling table: Provides a stable surface for accurate drilling operations.

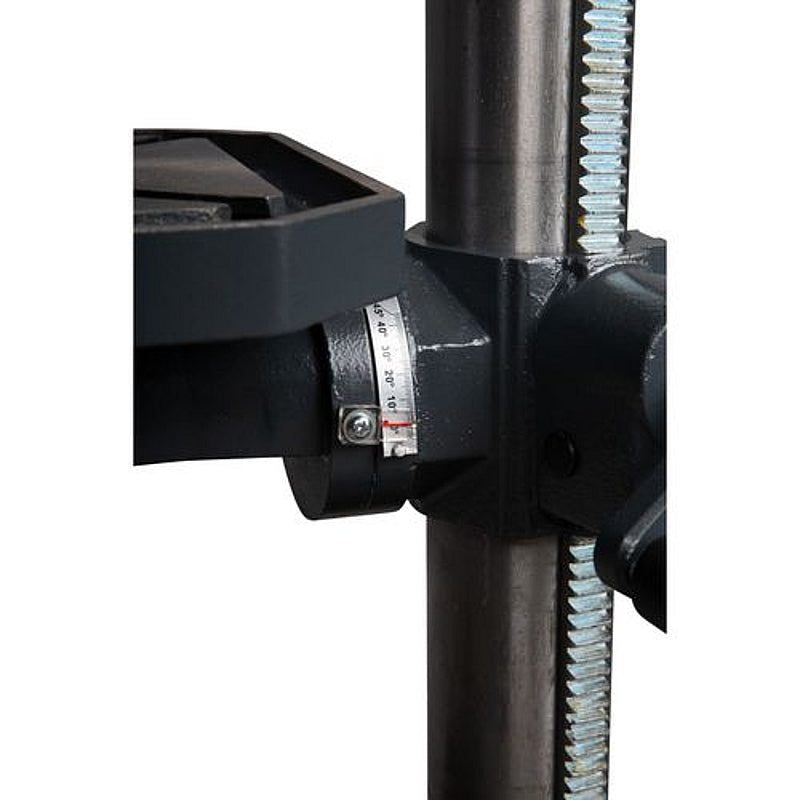

• Adjustable drilling table: Rotates through 360° and tilts up to ±45° for greater versatility.
• Massive ribbed base plate: Offers excellent stability and incorporates grooves for secure workpiece mounting.
• Ground multi-tooth driver: Supports reliable and consistent machine operation.

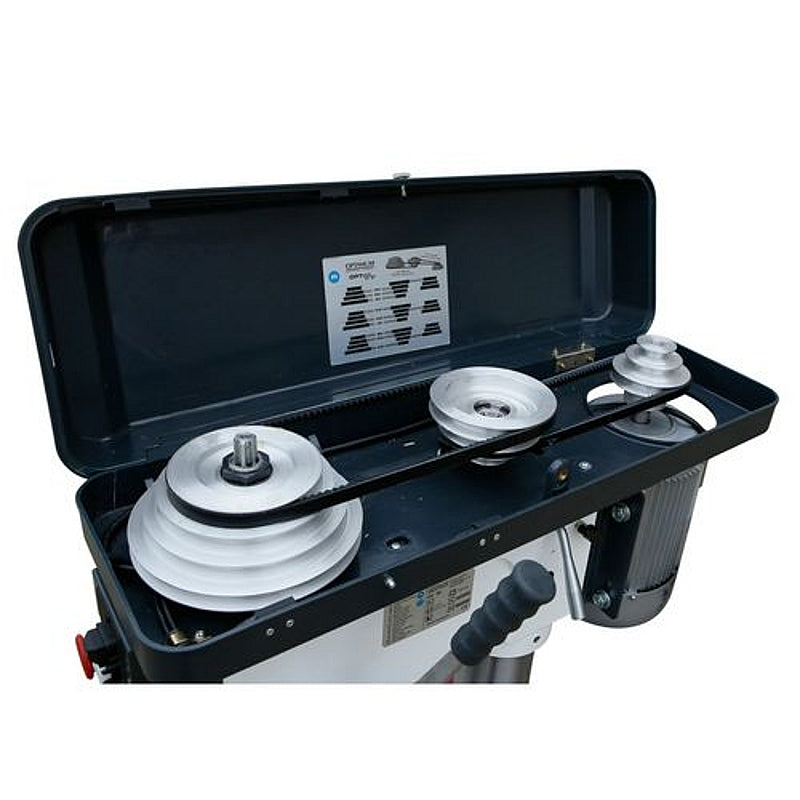

• Aluminium pulleys with GATES toothed V-belt: Deliver efficient and dependable power transmission.
• IP54-rated operating switch: Provides reliable performance in workshop environments.
• Belt cover with safety switch: Enhances operator safety during operation.
• Separate emergency stop push-button: Allows the machine to be stopped quickly when required.

Specifications:

Code: DQ32
Drive Motor Output: 1.1 kW (1,100 W)
Supply Voltage: 400 V
Mains Frequency: 50 Hz
Speed Range: 120–1810 min¯¹
Number of Speed Steps: 9
Drilling Performance in Steel (S235JR): 30 mm
Continuous Drilling Performance in Steel (S235JR): 25 mm
Quill Stroke: 120 mm
Spindle Chuck: MT4
Reach: 254 mm
Guaranteed Concentricity Accuracy: Better than 0.03 mm (measured in the drill spindle)
Column Diameter: 92 mm
Machine Length: Approx. 850 mm
Machine Width/Depth: Approx. 390 mm
Machine Height: Approx. 1,660 mm
Machine Weight: Approx. 120 kg
Drilling Table Workspace: 355 × 355 mm
Drilling Table Rotation: 360°
Drilling Table Tilt: ±45°
Drilling Table Load Capacity: 55 kg
T-Groove Type: Diagonal
T-Groove Size: 14 mm
Number of T-Grooves: 2
Maximum Distance from Spindle to Drilling Table: 640 mm
Maximum Distance from Spindle to Machine Base: 1,170 mm
Machine Base Work Area: 575 × 350 mm
Machine Base T-Groove Size: 15 mm
Machine Base T-Groove Quantity: 2
Machine Base T-Groove Spacing: 138 mm
Drilling Table: Precisely machined
Base Plate: Massive, large-dimensioned with grooves and a heavily ribbed rear side
Power Transmission: Aluminium pulleys with toothed GATES quality V-belt
Multi-Tooth Driver: Ground
Drill Spindle Bearings: Precision ball bearings
Quick-Action Drill Chuck: Standard equipment
Belt Cover: Fitted with safety switch
Operating Switch: IP54-rated
Emergency Stop: Separate emergency stop push-button switch
Packaging Unit: 1 Piece

Scope of Delivery:

• Optimum OPTIdrill DQ 32 Upright Drill
• Quick-action drill chuck (1–16 mm)
• T-nuts
• Morse taper MT4/B16
• Drift punch

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
