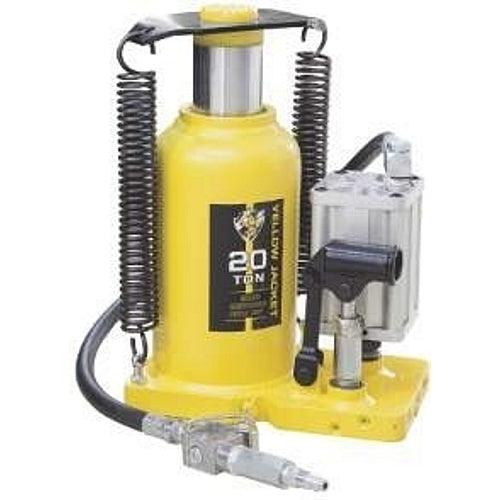

Yellow Jacket Pneumatic Hydraulic Bottle Jack, 20T | TQ20007

Yellow Jacket Pneumatic Hydraulic Bottle Jack, 20T | TQ20007.

Designed to handle demanding lifting tasks with ease, the Yellow Jacket Pneumatic Hydraulic Bottle Jack (model TQ20007) is an ideal solution for workshops, fleet maintenance, and industrial applications. This robust unit offers a lifting capacity of up to 20 tons, effectively combining pneumatic and hydraulic functions to minimize manual effort and maximize operational efficiency.

The TQ20007 features a minimum height of 255 mm (10.04 in) and extends to a maximum height of 500 mm (19.69 in). Its adjustable screw extension of 80 mm (3.15 in) further enhances its versatility, enabling precise height adjustment across a wide range of lifting scenarios.

This jack is compactly packaged in a 300 x 190 x 285 mm box, making it convenient to store and transport. Weighing just 17 kg (net) and 18 kg (gross), the unit strikes an effective balance between power and portability. Built for longevity and consistent performance, it is well-suited to high-frequency, high-load environments.

Features & Benefits:

• Dual Functionality: Pneumatic and hydraulic operation ensures rapid lifting while reducing operator fatigue.
• High Lifting Capacity: Supports up to 20 tons, perfect for trucks, heavy machinery, and industrial maintenance tasks.
• Wide Lifting Range: Lifts from 255 mm to 500 mm, with an additional 80 mm screw extension for fine height control.
• Compact & Durable Design: Easily stored and transported while offering robust construction for long-term use.

Specifications:

Code: TQ20007
Capacity (Ton): 20
Min. Height (mm): 255
Max. Height (mm): 500
Adjustable Height (mm): 80
N.W (Kg): 17
G.W (Kg): 18
Package Size (mm): 300 x 190 x 285

Scope of Delivery:

• 1 x Yellow Jacket Pneumatic Hydraulic Bottle Jack, 20T | TQ20007

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
