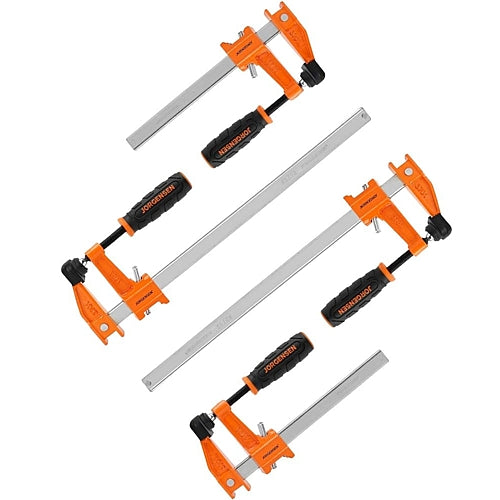

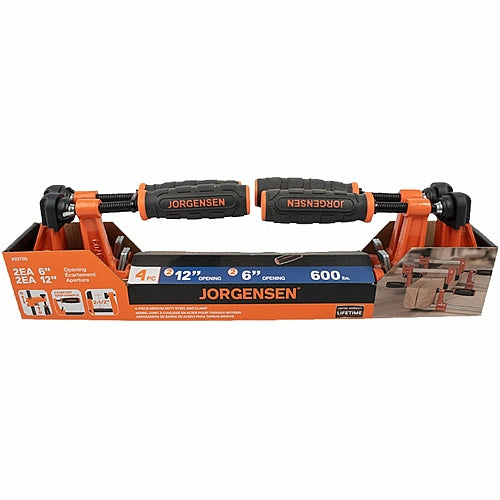

Pony Jorgensen 4Pc MD Steel Bar Clamp Set, 2 x 150mm, 2 x 305mm | AC93700

Pony Jorgensen 4Pc Medium Duty Steel Bar Clamp Set, 2 x 150mm, 2 x 305mm | AC93700.

Jorgensen steel bar clamps are renowned for their exceptional strength. The cast-iron stationary and sliding heads, featuring an orange, powder-coated finish, are coupled with a high-carbon, rust-resistant steel bar boasting an impressive tensile strength of 80,000 pounds per square inch [36287.39 kg/sq m]. The fast-acting sliding head is acme threaded to accommodate a cold-drawn steel screw, equipped with a large easy-grip handle and swivel pad. The original multiple-disc-clutch design ensures the sliding head securely holds at any point along the bar.

Available in a wide range of sizes and clamping forces, these clamps cater to light-duty, medium-duty, and heavy-duty applications.

Medium-Duty Specifications:

Product: #3706
Max Opening: 6" [152.4 mm]
Reach: 2-1⁄2" [63.5 mm]
Clamping Force: 600 lb. [272.16 kg]
Bar: 3⁄4" × 1⁄4" [19.05 mm x 6.35 mm]

Product : #3712
Max Opening: 12" [304.8 mm]
Reach: 2-1⁄2" [63.5 mm]
Clamping Force: 600 lb. [272.16 kg]
Bar: 3⁄4" × 1⁄4" [19.05 mm x 6.35 mm]

Technical Data:

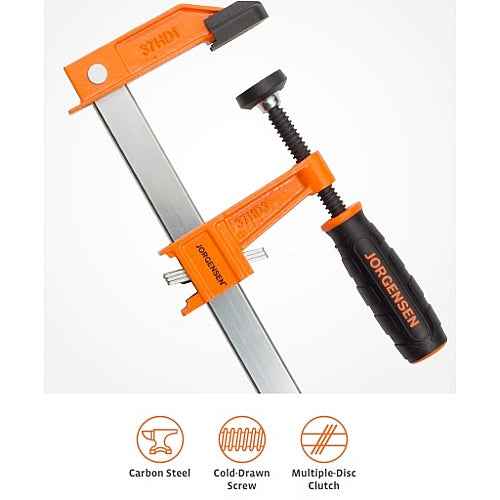

• High-carbon, rust-resistant steel bar
• Cast-iron stationary and sliding heads with orange powder-coated finish
• Fast-acting sliding head with acme threaded screw
• Original multiple-disc-clutch design

Scope of Delivery:

• 2 x 150mm Jorgensen Medium Duty Steel Bar Clamp | AC3706
• 2 x 305mm Jorgensen Medium Duty Steel Bar Clamp | AC3712

Please Note: Images are for illustrative purposes only; the items included in the delivery are specified in the product content/description or as indicated by the product title.
