Pro-Tech 2-In-1 Handle & Shelf Pin Jig | PTBP010

Pro-Tech 2-In-1 Handle & Shelf Pin Jig | PTBP010.

The Pro-Tech Cabinet Hardware Jig is the perfect solution for installing knobs and pulls with ease and repeatable accuracy. Whether you're updating cabinets or constructing new ones, this jig takes the guesswork out of the installation process.

Features and Benefits:

• Accurate pine holes with hardened steel drill bit guide
• Durable plastic construction with metric & imperial ruler markings
• Quick and easy guide adjustments with a parallel fence guide for accuracy
• Positioning pins for increased accuracy and repeatability

Technical Data:

Material: Plastic (Body, guide, and drill sleeve handle key), Stainless Steel (Drill stop collar and pins), High-Speed Steel (HSS) (Drill bits)
Tool Dimensions: 240mm (L) x 160mm (W) x 52mm (H)
Tool Weight: 576g
Maximum Parallel Spacing to Guide Centre: 120mm
Maximum Drill Guide to Centre: 192mm

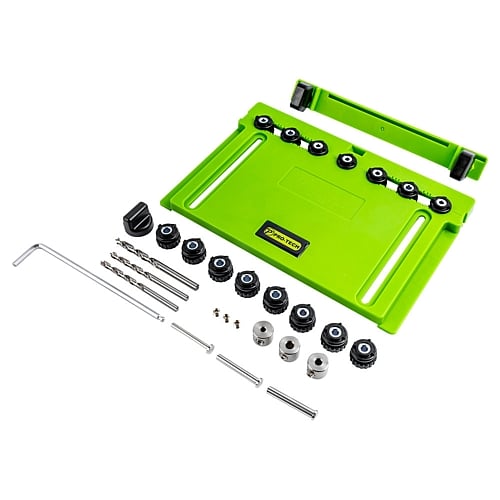

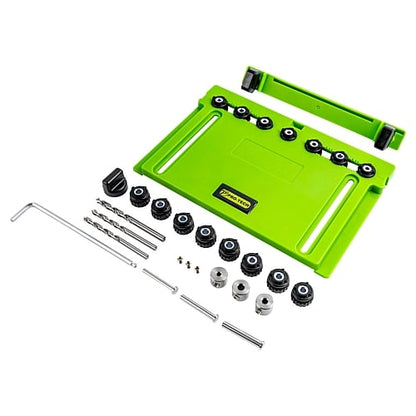

Scope of Delivery:

• 4mm wood drill bit
• 5mm wood drill bit
• 6mm wood drill bit
• 3 x Drill depth stop collar (4mm, 5mm & 6mm)
• 3 x 3 M6x6 grub screws
• 3mm Hex key
• 5 x 4mm drill bit guide
• 5 x 5mm drill bit guide
• 5 x 6mm drill bit guide
• Drill guide handle key
• Accessory fence
• Main body
• 3 x Positioning pins (4mm, 5mm & 6mm)
• 2 x Locking handles and screws

Applications:

Perfect for woodworking, DIY projects, and manufacturing.

Safety:

• Using any tool can be dangerous; always select the right tool for the job.
• Ensure the jig is always clean and not damaged.
• Wear personal protection gear at all times.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description above or as indicated by the product title.
