Pro-Tech 2Pc Multi-Purpose Featherboard Set, Includes Hardware | PTFB007

Pro-Tech 2Pc Multi-Purpose Featherboard Set, Includes Hardware | PTFB007.

The Pro-Tech 2Pc Multi-Purpose Featherboard Set, packaged in a sturdy cardboard box, offers versatility and stability for various woodworking applications. The high-strength composite plastic construction ensures durability and safety in use.

Application:

Woodworking, DIY applications, Manufacturing. Compatible with Table Saw, Router Table, Band Saw.

Product Highlights:

• Easy to install and can be used separately or combined.
• Safe, stable, and suitable for a variety of worktables.
• Fingers increase friction for anti-kickback on the workpiece.
• Miter slot or T-slot compatible.
• Can be used vertically or horizontally to accommodate feed direction.
• Flexible fingers conform to the workpiece shape to ensure constant contact.
• Stackable for increased contact on the workpiece.

Technical Data:

Adjustment Slot Range: 120mm
Groove Pitch Centre: 60 - 140mm
Compatible with Standard: 3⁄4” (19.05mm) slots and T-tracks
Material: High-strength composite plastic
Single Board Dimension: 225mm (L) x 160mm (W) x 16mm (H)
Single Board Weight: 174.48g

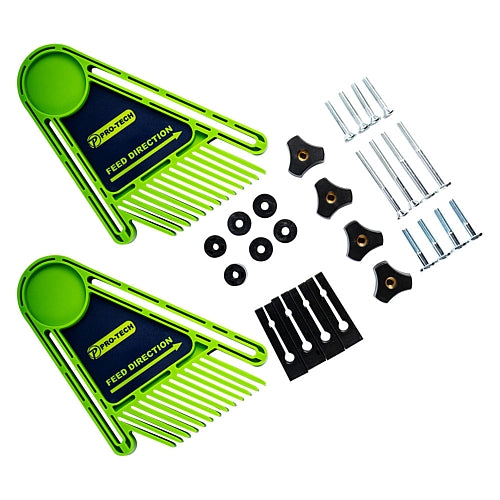

Scope of Delivery:

• 2 x Triangle design feather boards
• 4 x Plastic clamp bar
• 4 x M6 screw handle knobs
• 4 x M6 x 4mm thick plastic washers
• 2 x M6 x 10mm thick plastic washers
• 4 x M6-40 T-shaped screws
• 2 x M6-70 T-shaped screws
• 4 x M6-40 Self-locking screws
• 2 x M6-70 Self-locking screws

Safety:

• Appropriate safety glasses must be worn at all times in workshops.
• Appropriate respirator must be worn at all times when dust is produced.
• Hearing protection must be worn at all times when operating machinery.
• Always keep your hands away from the cutting area.
• Do not use the feather boards as a push block.
• Assemble the feather board(s) at least 25mm from the saw blade to prevent kickback.

Please Note: The images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description above or as indicated by the product title.
