The Pro-Tech 3Pc Radius Angle Gauge (PTAF001) is a versatile set designed for precision angle measurements, making it an essential tool for woodworking and DIY projects. Crafted with durability and user-friendliness in mind, this gauge set is CNC machined with a compact and universal design.

Product Highlights:

• Each gauge features two different radiuses on opposite corners
• Precise outside corner cuts
• Durable Bakelite construction
• Compact design and universal fitment
• User-friendly

Product Details:

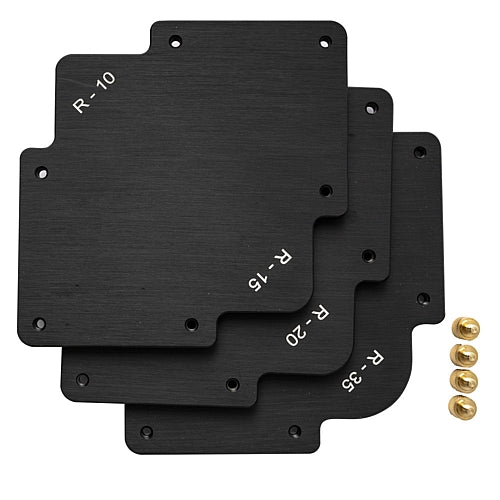

The set includes three gauges with the following radius combinations:

• R10 & R15 Radius angle gauge
• R20 & R25 Radius angle gauge
• R30 & R35 Radius angle gauge

Additionally, it comes with 4 M6 x 1 positioning screws for secure and accurate placement during use.

Applications:

Designed for making angled corners on a router, the Pro-Tech Radius Angle Gauge set is ideal for woodworking and DIY projects where precise angle measurements are crucial.

Technical Data:

Material: Bakelite (Radius angle gauges), Brass (Screws)
Single gauge dimensions: 190mm (L) x 190mm (W) x 8mm (H)
Single gauge weight: 0.34 kg

Assembly:

1. Select the workpiece and position it appropriately.
2. Screw in the positioning brass screws to secure the gauge.
3. Place the jig on the desired corner and position the screws for contact.
4. Clamp the gauge in place and cut using a router with a bearing until the desired shape is achieved.

Safety:

• Ensure the jig is securely mounted to avoid movement during use.
• Inspect the gauge for cleanliness and damage before use.
• Always choose the right tool for the job, considering safety.

Scope of Delivery:

• 1 x R10 & R15 Radius angle gauge
• 1 x R20 & R25 Radius angle gauge
• 1 x R30 & R35 Radius angle gauge
• 4 x M6 x 1 Positioning screws

Please Note: Images are for illustrative purposes only; the items included in the delivery are specified in the product content/description or as indicated by the product title.
