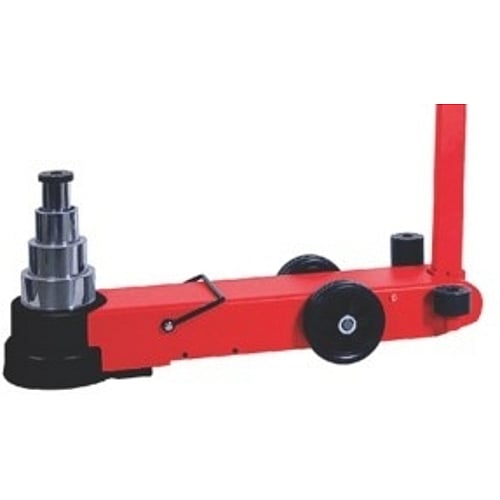

BIG RED Professional Pneumatic 3 Tier Trolley Jack, 40T/20T/10T | TRA40-3AL

BIG RED Professional Pneumatic 3 Tier Trolley Jack, 40T/20T/10T | TRA40-3AL.

The BIG RED TRA40-3AL Professional Pneumatic Trolley Jack is purpose-built for heavy-duty vehicle maintenance, offering three lifting stages tailored for diverse service applications. With capacities of 40 tons, 20 tons, and 10 tons across each stage, this jack is ideal for workshops handling commercial trucks, buses, and industrial machinery.

Its ultra-low minimum height of 125 mm (4.92 in) ensures easy positioning beneath low-clearance vehicles. Each stage provides precise lifting ranges: 57 mm (2.24 in) at 40T, 49 mm (1.93 in) at 20T, and 53 mm (2.09 in) at 10T. Additionally, it includes two extension adaptors—75 mm (2.95 in) and 45 mm (1.77 in)—to accommodate varying lifting requirements with greater flexibility.

Operating within an air pressure range of 0.9 to 1.2 MPa, the TRA40-3AL delivers consistent pneumatic power. Its compact construction and lightweight design, combined with a separate handle box, ensure user convenience in both storage and transport, especially in mobile service operations.

Features & Benefits:

• Three-Stage Lifting: Handles 40T, 20T, and 10T loads for varied service applications across different vehicle types.
• Low-Profile Access: 125 mm (4.92 in) minimum height allows use under low-clearance equipment and vehicles.
• Incremental Lifting Heights: Lifts 57 mm at 40T, 49 mm at 20T, and 53 mm at 10T for precise adjustment across stages.
• Adaptable Lifting Extensions: Supplied with 75 mm and 45 mm adaptors to meet different height needs.
• Efficient Pneumatic Operation: Operates effectively at 0.9–1.2 MPa for smooth and reliable lifting.
• Compact and Portable: Lightweight design with dedicated handle box makes transport and storage easier.

Specifications:

Code: TRA40-3AL
Capacity: 40T / 20T / 10T
Air Pressure: 0.9–1.2 MPa
Min Height (mm): 125
Lifting Height: 40T ~ 57 mm / 20T ~ 49 mm / 10T ~ 53 mm
Extension Height (mm): 75 + 45
N.W (Kg): 44
G.W (Kg): 50
Package Size (mm): 870 x 330 x 220
Handle Box (mm): 1390 x 280 x 110

Scope of Delivery:

• 1 x BIG RED Pneumatic 3 Tier Trolley Jack, 40T/20T/10T | TRA40-3AL

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
