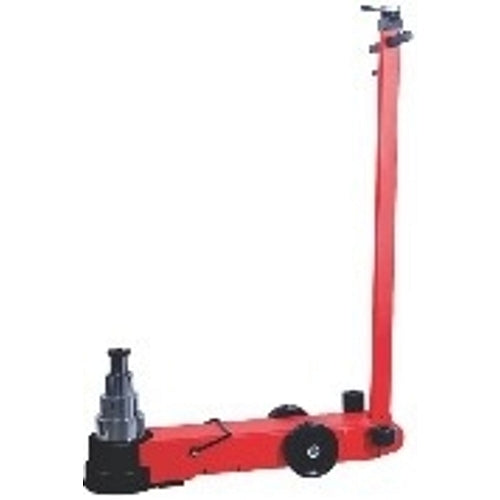

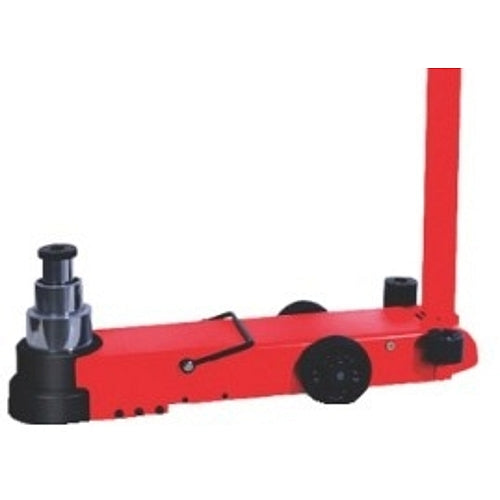

BIG RED Professional Pneumatic 3 Tier Trolley Jack, 60T/40T/20T | TRA60-30AL

BIG RED Professional Pneumatic 3 Tier Trolley Jack, 60T/40T/20T | TRA60-30AL.

The BIG RED TRA60-30AL Professional Pneumatic Trolley Jack is engineered for high-capacity, multi-stage lifting, making it exceptionally suited for use on large commercial vehicles, buses, and heavy equipment. With three distinct lifting stages—60 tons, 40 tons, and 20 tons—it provides operational flexibility and robust support in demanding workshop environments.

With a low minimum height of just 150 mm (5.9 in), the jack fits easily beneath low-clearance vehicles. Its three lifting stages deliver incremental lifting heights: 57 mm (2.24 in) at 60T, 59 mm (2.32 in) at 40T, and 61 mm (2.40 in) at 20T. To further enhance versatility, the TRA60-30AL includes two extension adaptors measuring 75 mm (2.95 in) and 45 mm (1.77 in), making it suitable for a wide range of lifting scenarios.

This pneumatic jack operates within an air pressure range of 0.9 to 1.2 MPa, delivering consistent and efficient power. Despite its robust capacity, it maintains a compact form, and the inclusion of a dedicated handle box improves portability and ease of use on-site.

Features & Benefits:

• Three-Stage Lifting: Supports 60T, 40T, and 20T capacities for maximum adaptability across vehicle types and weight classes.
• Ultra-Low Clearance Access: Minimum height of 150 mm (5.9 in) enables operation under low-profile vehicles and machinery.
• Incremental Lifting Heights: Provides 57 mm, 59 mm, and 61 mm lifting heights for 60T, 40T, and 20T stages respectively.
• Extension Adaptors Included: Two adaptors (75 mm and 45 mm) included for extended reach and flexibility.
• Reliable Pneumatic Power: Operates efficiently between 0.9–1.2 MPa for consistent lifting performance.
• Compact Design: Space-efficient jack body with dedicated handle box ensures easy handling and transport.

Specifications:

Code: TRA60-30AL
Capacity: 60T / 40T / 20T
Air Pressure: 0.9–1.2 MPa
Min Height (mm): 150
Lifting Height: 60T ~ 57 mm / 40T ~ 59 mm / 20T ~ 61 mm
Extension Height (mm): 75 + 45
N.W (Kg): 64
G.W (Kg): 67
Package Size (mm): 1000 x 300 x 240
Handle Box (mm): 1390 x 280 x 110

Scope of Delivery:

• 1 x BIG RED Pneumatic 3 Tier Trolley Jack, 60T/40T/20T | TRA60-30AL

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
