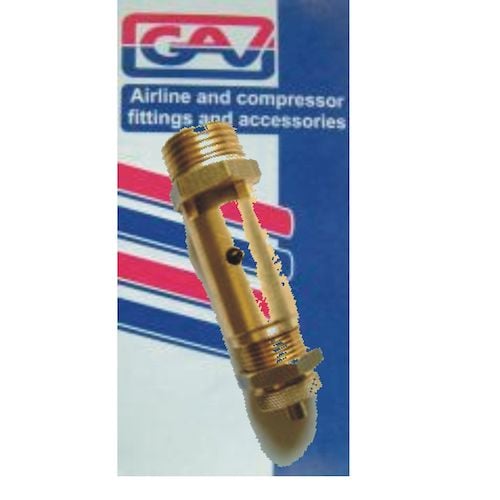

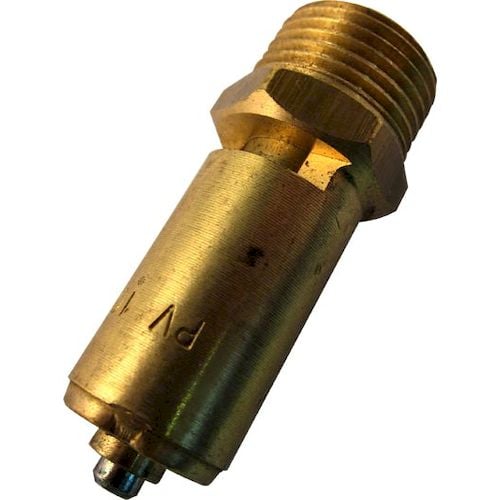

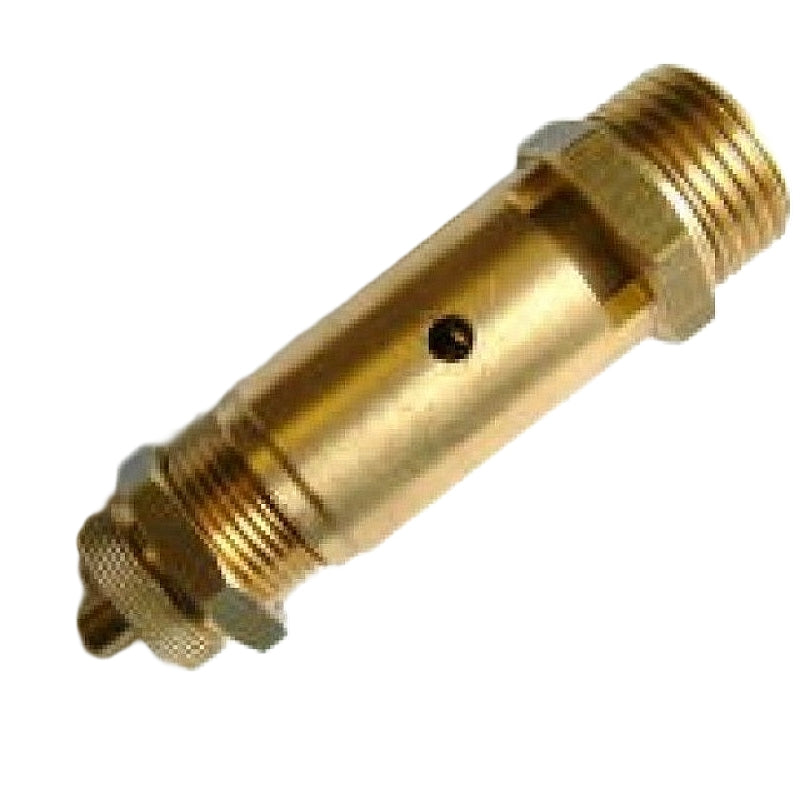

Bamax Safety Valve - 1/4" Preset 8 Bar (Packaged) | GIO4003-1P

Bamax Safety Valve - 1/4" Preset 8 Bar (Packaged) | GIO4003-1P.

This Bamax safety valve automatically releases excess pressure in systems to prevent potential damage or failure. Engineers design it with a preset relief pressure of 8 bar that ensures reliable performance in maintaining safe pressure levels. The valve serves as essential protection for compressor safety pressure relief and suits maintenance or repair applications. It features a robust construction with quality materials that deliver consistent and dependable operation. The preset design allows users to install the valve quickly while it provides automatic air release when pressure exceeds the safe limit. As a result, operators maintain safe pressure levels in their air systems with confidence.

Features & Benefits:

• Preset Pressure Release: Automatically opens at 8 bar to protect the system from over-pressurisation.
• Brass Alloy Body: Offers excellent durability and corrosion resistance for long-term reliability.
• NBR Rubber Seal: Provides a secure seal and effective performance across the operating temperature range.
• Steel Spring: Delivers consistent and accurate pressure relief response.
• Auto Safety Air Release: Quickly vents excess pressure to maintain safe operating conditions.

Specifications:

• Code: GIO4003-1P
• Thread: 1/4"
• Preset Pressure: 8 Bar
• Calibration Range: 0.5 - 16 Bar
• Materials - Seal: NBR Rubber
• Materials - Valve Body: Brass alloy (EN 12164:98 CW 614N)
• Materials - Spring: Steel (EN 10270-1-DH)
• Temperature Range: -10°C - +80°C
• Wrench Size: 17mm
• Length: 65mm
• Packaging: Bulk

Scope of Delivery:

• 1 x Bamax Safety Valve - 1/4" Preset 8 Bar (Packaged)

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
