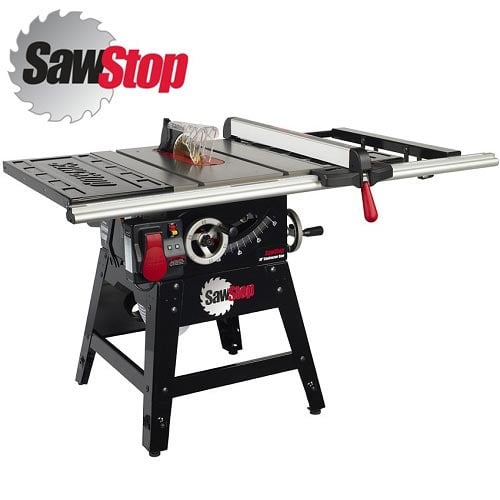

Contractor Saw.
The SawStop® Contractor Saw offers versatility and safety. Whether on the job site or in the shop, it delivers the performance you need with the peace of mind only SawStop's patented safety system can provide. Note: Picture shown with optional accessories fitted.
Quick facts
Specifications:
Motor configuration: 1.3 kW [1,75 hp], 1 phase, 230V
Width: 1485 mm [58 1/2"]
Depth: 1015 mm [40″]
Height: 883 mm [34 3/4″]
Cast iron table: 508 mm wide x 685 mm deep; 20″ w x 27″ d
Extension wings: 305 mm wide x 685 mm deep; 12" wide x 27" deep
Weights:
Table saw only: 102 kg [225 lbs]
30 in fence systems: 111 kg [245 lbs]
36 in fence systems: 140 kg [310 lbs]
52 in fence systems: 151 kg [335 lbs]
Shipping weight (approx.): 108 kg [240 lb] (table saw only)
Saw Blade:
Arbor Ø: 15.875; 5/8"
Diameter: 254 mm [10"]
Blade tilt: Left
Blade kerf: 3 mm
Blade plate thickness: 2 mm
Cutting capacities:
Max. depth of cut, blade at 0°: 79,4 mm [3 1/8″]
Max. depth of cut, blade at 45°: 57.15 mm [2 1/4"]
Max. rip, right of blade - 30 in: 775 mm [30 1/2″] (w/ optional 30″ rails)
Max. rip, right of blade - 36 in: 927 mm [36 1/2″] (w/ optional 36″ rails)
Max. rip, right of blade - 52 in: 1334 mm [52 1/2″] (w/ optional 52″ rails)
Max. rip, left of blade: 419 mm [16 1/2″]
Dado diameter: 200 mm [8″] (requires a separate brake cartridge and insert)
Dado max. width: 20 mm [13/16″]
Table in front of blade (max. elevation): 269.85 mm [10 5/8"]
Table behind blade (max. elevation): 180 mm [7 1/8″]
Accuracy:
Arbor Runout: 0.0254 mm [0.001″] Maximum allowable runout
Table flatness measured diagonally: 0.406 mm [0.016″] Maximum gap
Blade alignment with miter slot: 0.254 mm [0.010″ ] Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between splitter and blade: 0.254 mm [0.010″] Maximum difference
Mitre slots:
Miter slots T-shaped: 19.05 mm [3/4″] at top, 25.4 mm [1″] at bottom, 9.525 mm [3/8″] deep
Miter slots center: 282.58 mm [11 1/8″] center-to-center
Miter slots info: 139.7 mm [5 1/2″ ] (arbor flange to center of right slot)
Other general specifications:
Dust collection port diameter: 100 mm [4"] under table top
Riving knife / splitter thickness: 0.090" (2.3 mm)
Blade guard (micro guard): polycarbonate
Hand wheels: 152 mm [6″] diameter, aluminium w/ ABS handle
Belts: V-ribbed belt – static dissipative
We do not recommend using generators with our saws because the fluctuating voltage level can harm the electronics over time and cause damage to them as well.
