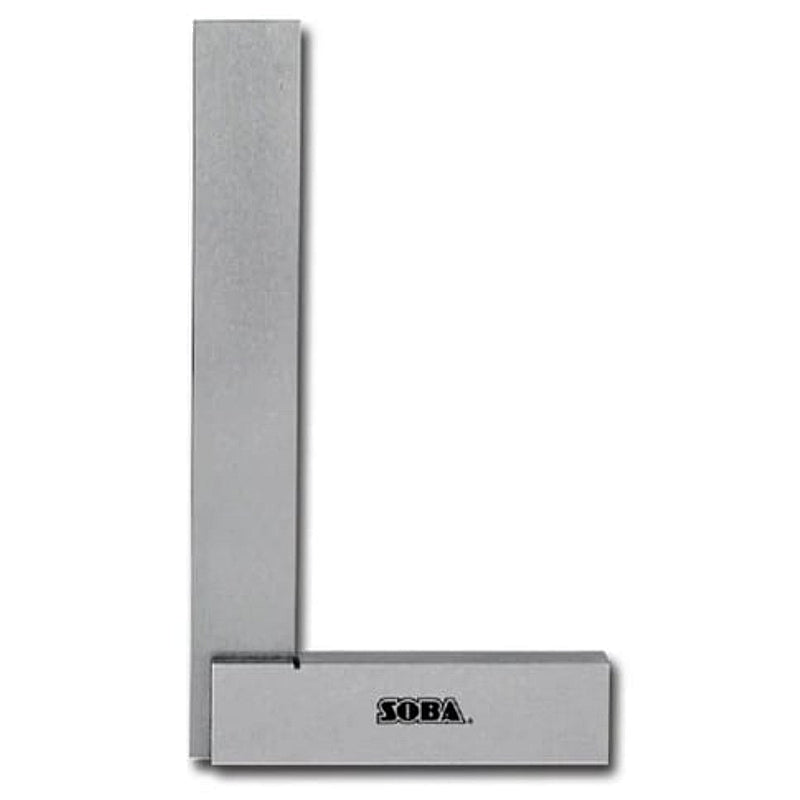

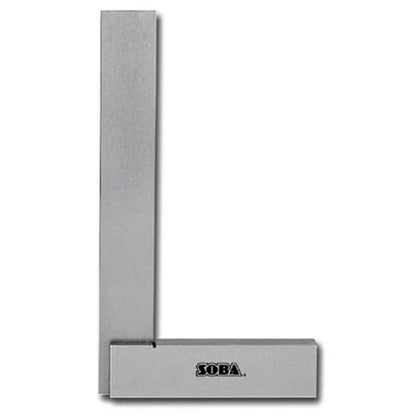

Soba 5" Precision Square (125mm) | 150615

Soba 5" Precision Square (125mm) | 150615.

The Soba 5" Precision Square (125mm) is engineered for accuracy, reliability and long-term workshop use. Both the beams and blades are fully precision ground, which ensures parallelism and maintains squareness between the blade edges and the stock faces. Additionally, this model meets strict tolerances, offering squareness accuracy of .0004" (0.010mm), blade-edge flatness of .0001" (0.003mm) and stock-face flatness/parallelism of .0002" (0.005mm). Consequently, it is ideal for layout work, machinery setup and any task that demands consistent, dependable accuracy. The precision-ground 5" (125mm) blade and 4" (100mm) stock provide a stable reference surface across a wide range of measuring and marking applications.

Features & Benefits:

• Precision-Ground Construction: Ensures accurate squareness and parallelism for dependable measurement.
• Strict Tolerances: Provides high-accuracy performance suitable for fine workshop tasks.
• Durable Build: Offers long service life due to precision grinding on beams, blades and stock.
• Versatile Size: 5" (125mm) blade supports general layout, equipment setup and alignment work.

Specifications:

• Code: 150615
• Size: 5" (125mm)
• Stock Size (D): 4" (100mm)
• Blade Width (C): 3/4" (19mm)
• Stock Thickness (E): 3/8" (9.5mm)
• Bevel (B): 4" (100mm)
• Squareness: .0004" (0.010mm)
• Flatness / Parallelism (Blade Edges): .0001" (0.003mm)
• Flatness / Parallelism (Stock Faces): .0002" (0.005mm)
• Weight: 0.18kg

Scope of Delivery:

• 1 x Soba 5" Precision Square (125mm)

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
