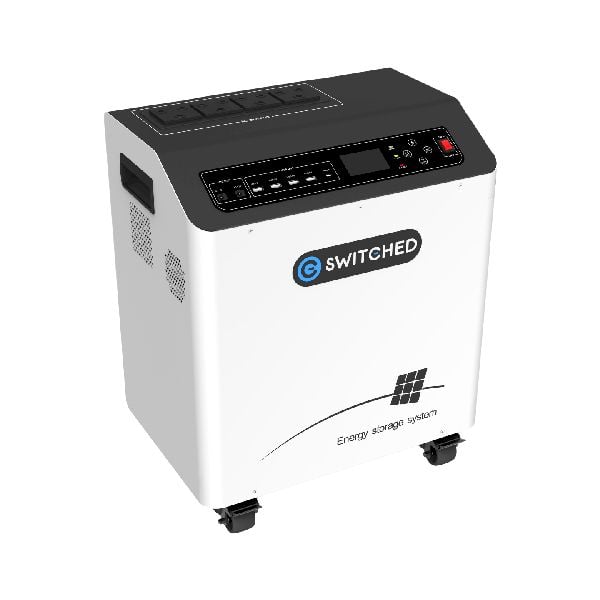

Switched 2000W LiFePo4 ESS Solar Power System | SWD-8921

Elevate your power independence with the Switched 2000W LiFePo4 ESS Solar Power System (SWD-8921).
This cutting-edge solar power solution empowers you to harness the sun's energy for a sustainable and reliable power source.
Designed to meet your energy needs both at home and on your outdoor adventures, this system offers exceptional benefits and versatility.

Robust Power Generation:
With a 2000W solar generator, this system efficiently captures sunlight and converts it into usable power, ensuring your devices stay charged.

LiFePo4 Battery Technology:
The advanced Lithium Iron Phosphate (LiFePo4) battery ensures a longer lifespan, faster charging, and enhanced safety compared to traditional batteries.

Fast Charging:
Benefit from rapid charging times with support for fast AC charging within 2 hours and solar panel charging.

Versatile Device Support:
Power up to 95% of your daily-use electronics, including laptops, smartphones, mini coolers, and more.

UPS Mode:
Instantly switch to Uninterruptible Power Supply (UPS) mode, guaranteeing continuous power supply during unexpected outages.

- Rated power -2000W
- Output voltage waveform -Pure sine wave
- Output voltage regulation -230Vac±5%
- Output frequency -50Hz / 60Hz (±0.2Hz)
- Peak efficiency -90%
- Nominal DC input voltage -24Vdc (±0.3)
- Standby Consumption - < 25W
- Max solar power input -1800W
- PV max charging current -60A (±3A)
- Combined charging current -80A (±4A)
- Max efficiency -98.0% max
- PV array open circuit voltage -145VDC
- PV Array MPPT Voltage Range -30~120VDC
- AC input voltage -230Vac ±5%
- Acceptable input voltage range -90-280VAC
- Nominal input frequency -50Hz / 60Hz (Auto detection)
- Transfer time -10ms typical (UPS, VDE); 20ms typical (APL)
- Charging current at Nominal input voltage -20/30A (±4A)
- Charging Algorithm - 4-step (Li)
- AC output -230Vac (Socket x 4pcs)
- USB (5V 2.4A) -DC output x 2pcs
- USB (12V 1A) -DC output x 1pcs
- Nominal voltage - 25.6V
- Battery capacity - 1920Wh
- Protection board -100A
- Standard charging and discharge current -50A
- Operation ambient temperature -Charge -0-45℃
- Discharge -10-60℃

Tips for Using the Product

Optimal Sun Exposure:
Place the solar panels in direct sunlight for maximum efficiency.

Load Management:
Prioritize essential devices during power shortages to maximize battery life.

Regular Maintenance:
Maintain the solar panels and battery system periodically for peak performance.
