CNC BASIX - Timing Belt CNC Machine, 1.0M x 1.0M | AXYZ1010T.

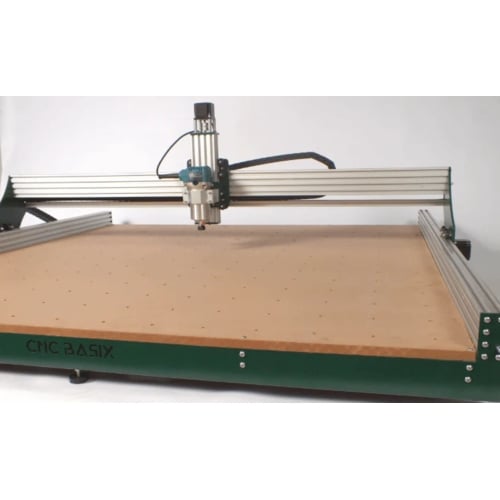

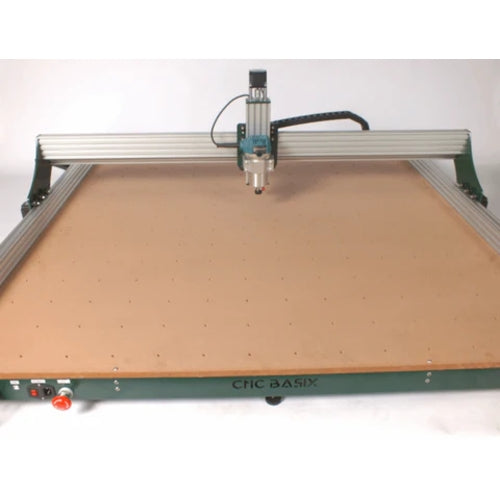

The CNC BASIX - Timing Belt CNC Machine, 1.0M x 1.0M | AXYZ1010T is a robust yet accessible CNC machine designed for those looking to engage in CNC cutting with ease and efficiency. Engineered for light to moderate workloads, this machine is particularly suited for cutting wood, PCBs, and perspex. Depending on the density of the material and the cutting bit used, it can achieve up to 1mm cutting depth per pass.

The machine is driven by a steel-reinforced GT3 timing belt on the X and Y axes, ensuring accurate and smooth operation. Its open-ended design allows for the pass-through of longer materials, making it a versatile choice for various applications. Constructed with an all-aluminium frame, it offers durability while maintaining a lightweight structure.

Equipped with a Makita RT0700C 700W Router, this CNC machine delivers precise and efficient cutting power. Users can manually control the speed between 12,000 and 30,000 RPM to suit different materials and applications. Additionally, the included MDF wasteboard and fastening clamps provide stability during operation.

CNC Machine Features:

• Footprint: 1000mm x 1000mm
• Work Area: 800mm x 800mm x 50mm
• Steel-Reinforced GT3 Timing Belt: Ensures accurate and stable movement along the X and Y axes.
• Dual Motors on Y-Axis: Enhances stability and precision during cutting.
• All-Aluminium Frame: Offers durability while keeping the machine lightweight.
• Open-Ended Design: Allows pass-through of longer materials for added versatility.
• Makita RT0700C Router: A powerful 700W router with a manual speed control range of 12,000 to 30,000 RPM.
• Adjustable Cutting Depth: Up to 50mm depending on the bit used.

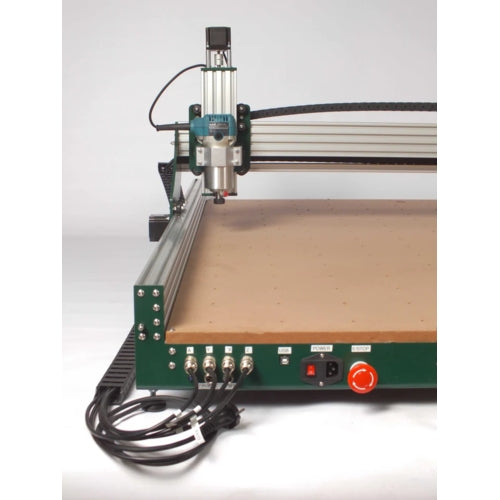

• Pre-Installed Electronics Controller: Includes a USB cable connection for seamless operation.
• Full Cable Management: Features X & Y axis cable drag chains for improved organization and safety.
• Includes MDF Wasteboard: Comes with fastening clamps for securing materials during cutting.

Requirements:

• Personal computer or laptop running Windows 7, 8, or 10.
• USB port on computer.
• Open Builds Operating Software (included).
• Easel 30-Day Free Trial - Online Cloud-Based App used for designing and cutting process.

Alternative Designing Software:

• Vectric: Basic training available at additional cost.
• Fusion 360: Basic training available at additional cost.

Specifications:

Footprint: 1000mm x 1000mm
Work Area: 800mm x 800mm x 50mm
Cutting Depth: Up to 50mm (depending on the bit used)
Drive System: GT3 reinforced neoprene 3mm pitch timing belts (X & Y axes)
Motors: 4 x Nema23 stepper motors
Controller Board: 4-axis stepper motor driver
Power Supply: 24V 10A 250W
Router Compatibility: Makita RT0700C (65mm spindle mount)
Manual Speed Control: 12,000 – 30,000 RPM
Resolution: Configured to 0.3mm
Collets: 3mm, 6mm

Training & Delivery:

• Compulsory delivery, setup, and minimal training of the machine available at additional cost.
• Delivery available within South Africa only.

Lead Times:

• Gauteng & Surrounding Provinces: 3-5 Weeks
• Northern, Eastern & Western Cape: 5-8 Weeks

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.

Upgrades:

We also have upgrade options available, simply complete the form below with your details, and we will send you a quote or proforma by email! Don’t worry; your information is safe with us! We promise not to share your details with any third parties—your secrets are safe! Plus, we strictly follow our privacy policy to keep everything under wraps.
