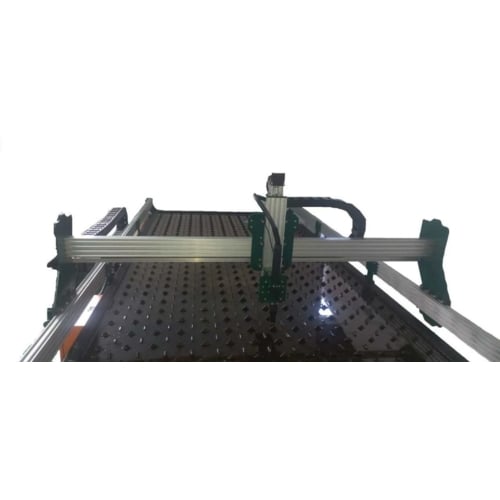

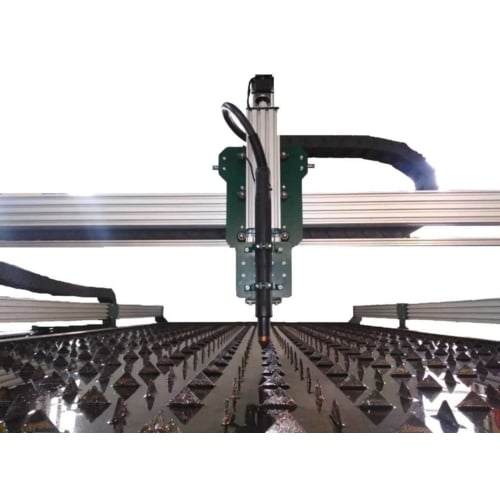

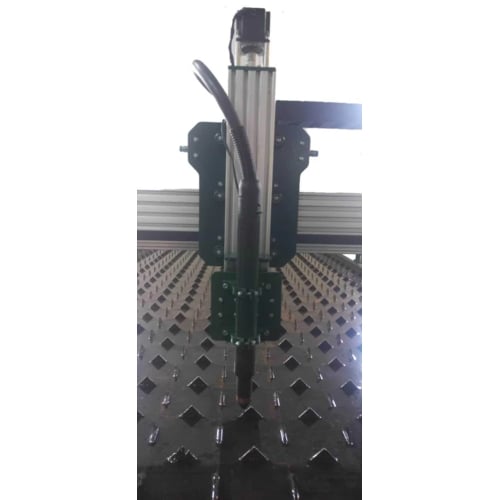

CNC BASIX - Timing Belt Plasma CNC Machines with MACH3 Controllers.

Machine Specifications:

This machine is not a high accuracy machine due to timing belt driven. This machine is perfect for cutting steel, stainless steel, aluminium, brass and copper.

CNC Machine Features:

  • Maximum cutting depth 12mm.
  • Open ends allow pass through of longer materials.
  • All aluminium frame.
  • Electronics controller box with USB cable connection (cable included)

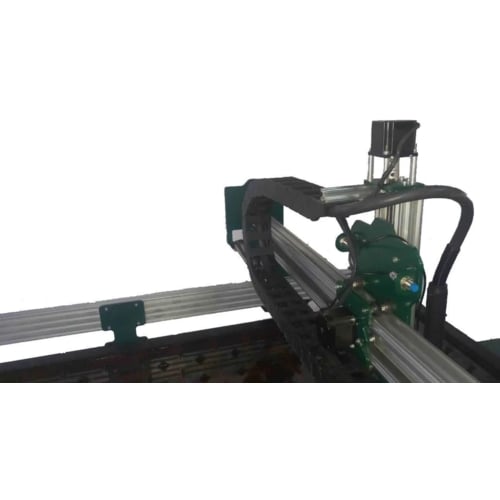

  • Full cable management with X & Y axis cable drag chains.
  • 7 Limit Switches (X+, X-, Y+, Y-, Z+)
  • Torch Height Controller
  • Square Tubing Table painted black
  • Water Table With Water Outlet
  • Floating Z-Probe
  • Hypertherm 45XP Plasma Cutter with straight torch 7m Lead
  • Mach3 Controller License included
  • The machine comes standard with a plasma cutting table.
  • The machine comes with a Free 200L Mac Afric Drive Belt Compressor.

Machine Footprint & Work Area:

1.5M x 3.0M *Footprint | *Work Area: 1500mm x 3000mm | 1300mm x 2800mm x 50mm
2.0M x 3.0M *Footprint | *Work Area: 2000mm x 3000mm  | 1800mm x 2800mm x 50mm

*Footprint: At the base, stock size measured from the base.
*Work Area: Stock size.

Requirements:

  • Personal computer or Laptop running Windows 7, 8, 10 or 11.
  • USB port on computer
  • Free Downloadable Software & License Included

Mechanical Specifications:

  • 4x Nema23 stepper motors 12.6kg/cm 175oz/in
  • 4 Axis Stepper Motor Driver Controller Board
  • 12V 100W Power Supply
  • GT3 reinforced neoprene 3mm pitch timing belts on X & Y axis
  • Dual motors on Y axis
  • T8 lead screw on Z axis
  • Configured resolution: 0.3mm

Technical Data of Hypertherm 45XP:

  • Duty Cycle: @ 50% @ 45 A, 200 – 240 V, 1-PH
  • 60% @ 41 A, 200 – 240 V, 1-PH
  • 100% @ 32 A, 200 – 240 V, 1-PH
  • Output Current Range (A) Plasma: 10-45Amps
  • Rate input current (A): 39A
  • Efficiency (%): 88
  • Clean Cutting Thickness: (12mm)

Free 200L Mac Afric Compressor:

  • Motor Power: 2.2KW / 3 HP
  • Motor/Pump Type: Belt Drive
  • Tank Size: 200 Liters
  • Clan Air Delivery Rate: 8.83 CFM (250 Liters/min)
  • Input Power: 230V Single Phase
  • Maximum Pressure: 116 PSI, 8 Bar

Training & Delivery:

  • Compulsory delivery, setup and minimal training of the machine at additional costs to the customer - within South Africa only.
  • Please allow 3-4 weeks for the machine to be ready as we import some of the parts on order.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
