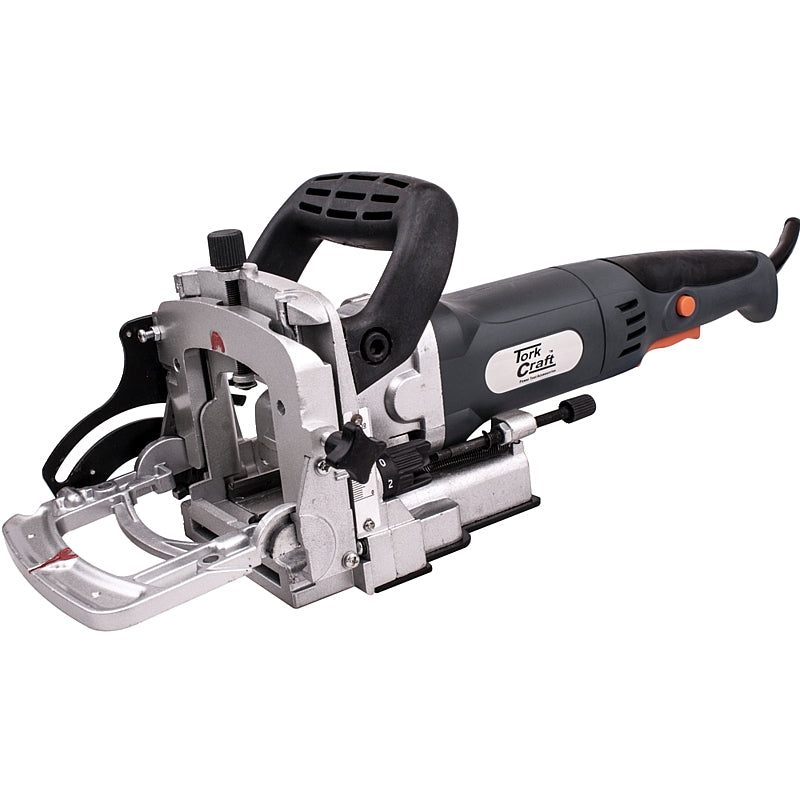

Tork Craft Biscuit Jointer 900W | BJ02.
The Tork Craft Biscuit Jointer 900W | BJ02 allows woodworkers to join two pieces of wood efficiently using a small circular saw blade that cuts crescent-shaped slots. When a beech wood biscuit is placed into the slot with glue, clamping the boards together ensures the biscuit expands for a stronger bond. This joiner combines power with control, offering a maximum rotation speed of 11,000 RPM and supporting a range of biscuit sizes. Its features, including an adjustable handle, dust collection system, and spindle lock, make woodworking safer, precise, and more efficient.
Features & Benefits:
-
Safety Trigger Switch: Prevents accidental start for safer operation.
-
Carbon Brush Access: Easily accessible ports simplify maintenance.
-
Spindle Lock Button: Allows safe blade installation and adjustments.
-
Adjustable Handle: Provides added control during operation.
-
Quick Adjustment: Height, depth, and angle can be easily changed for precise cutting.
-
Dust Collection System: Keeps the workspace cleaner and reduces inhalation of sawdust.
-
Reinforced Joinery: Diagonal grain direction of biscuits ensures stronger joints and flush connections.
Specifications:
Brand: Tork Craft
Product Name: Biscuit Jointer
Model: BJ02
Wattage: 900W
Voltage: 230V (50Hz)
Max RPM: 11,000
Max Blade Diameter: 100mm
Bore Diameter: 22mm
Spindle Thread: M6
Max Depth Cut: 19mm
Stop Angle: 0° - 90° / 90° - 135°
Suitable Biscuits: #0, #10, #20
Power Cord Length: 2m
Tool Weight: 2.2kg
Tool Dimensions: 385mm(L) × 190mm(H) × 170mm(W)
Material: Gearbox: Aluminum, Base Plate: Plastic, Handle: Plastic, Body: Plastic
Scope of Delivery:
- 1 x Tork Craft Biscuit Jointer 900W | BJ02
- 1 x 100mm Cutting Blade
- 1 x Hex Wrench, 5mm
- 1 x Dust Collection Bag
- 1 x Spare Set of Carbon Brushes
How To Install the Blades:
- Unplug the power cord, switch off the tool, and wait until all moving parts have completely stopped before making any adjustments.
- Undo the four screws at the bottom of the base plate and open the base plate.
- Press and hold the spindle lock button at the top of the joiner and turn the spindle until it locks.
- Undo the flange nut from the spindle with a hex key.
- Place the blade and flange on the spindle, ensuring the arrow on the blade aligns with the joiner arrow.
- Secure the spindle nut with a hex key.
- Release the spindle lock button and verify the blade rotates freely.
- Reattach and tighten the base plate screws, ensuring proper fastening before starting the tool.
Downloads:
BJ02 - Exploded View & Parts List [PDF]
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
