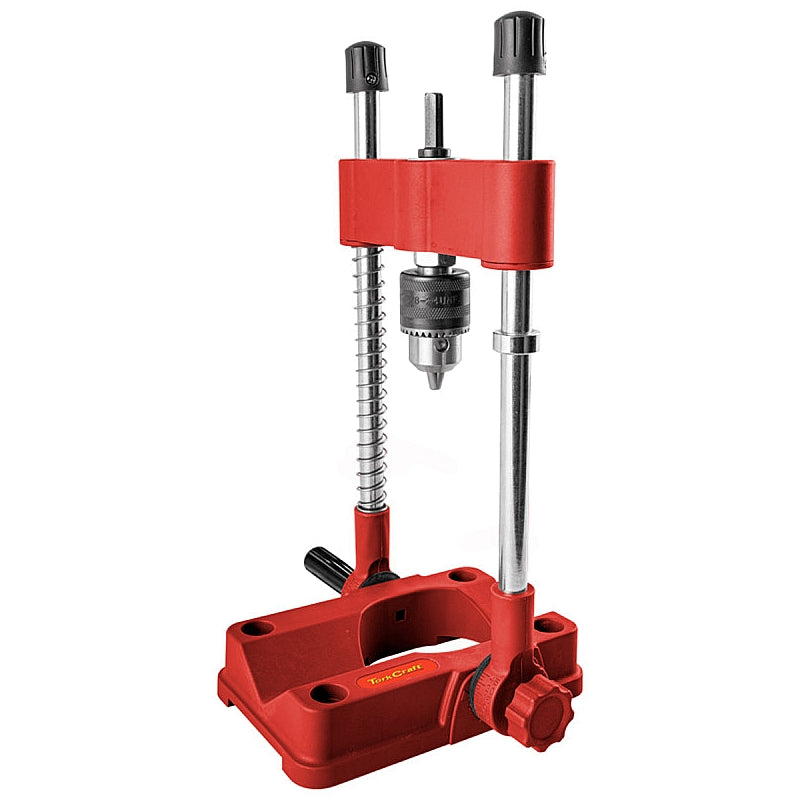

Tork Craft Multi-Angle Precision Drill Guide with 10 mm Chuck | TCV04043-1

Tork Craft Multi-Angle Precision Drill Guide with 10 mm Chuck | TCV04043-1

The Tork Craft TCV04043-1 Multi-Angle Precision Drill Guide is built for reliable, accurate drilling whether you’re working with wood, metal or pipes. Its integrated 10 mm chuck lets you mount standard drills or bits up to 10 mm, and the adjustable angle base gives you the flexibility to drill at 0°, 15°, 30° or 45° — perfect for angled holes, doweling, joinery or maintenance tasks. With a robust build and a plunge depth of up to 160 mm, this guide helps you maintain control and precision that hand-held drilling often lacks. The detachable handle and V-groove base make it especially handy when drilling pipes or round stock, while dual locking knobs secure the drill in place during operation.

Features & Benefits:

• 10 mm Chuck: Accepts standard drill bits from 1.5 mm to 10 mm for wide compatibility.
• Adjustable Angles: Supports 0°, 15°, 30° and 45° drilling angles for versatile angled and perpendicular holes.
• 160 mm Plunge Depth: Allows deep and precise drilling in wood, metal and pipe stock.
• V-Groove Base: Provides secure positioning on round or cylindrical workpieces such as pipes.
• Dual Locking Knobs: Clamps the drill securely for stable and accurate drilling.
• Portable Design: Suitable for both workshop use and on-site portable applications.

Specifications:

• Code: TCV04043-1
• Brand: Tork Craft
• Product Type: Multi-Angle Precision Drill Guide with 10 mm Chuck
• Chuck Capacity: 1.5 mm – 10 mm
• Supported Drilling Angles: 0°, 15°, 30°, 45°
• Maximum Plunge Depth: Approx. 160 mm
• Workpiece Width Capacity (at 0°): Up to approx. 95 mm
• Kit Weight: Approx. 1.48 kg
• Kit Dimensions: 400 × 160 × 47 mm

Scope of Delivery:

• Drill guide body
• 10 mm steel chuck
• Mounting hardware (bolts, nuts, washers)
• Chuck key
• Allen key

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
