Tormek Drill Bit Sharpening Attachment | DBS-22

Tormek Drill Bit Sharpening Attachment | DBS-22.

The Tormek DBS-22 Drill Bit Sharpening Attachment is engineered to restore drill bits to optimal sharpness with accuracy and efficiency. It sharpens drill bits ranging from 3mm (1/8”) to 22mm (7/8”) in diameter, creating a precise four-facet point for maximum performance. This patented design reduces wandering, requires less drilling pressure, and minimises heat build-up during drilling, resulting in a significantly extended service life for your drill bits.

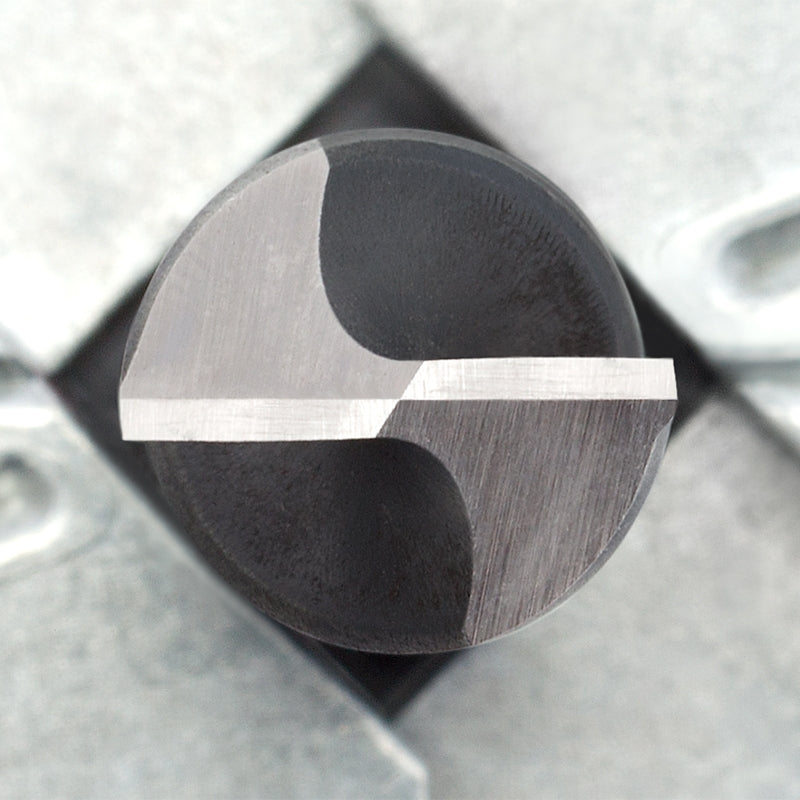

The four-facet point ensures excellent cutting characteristics, as the cross-cut is pointed rather than flat, unlike many conventional drill bits. Independent testing has proven that drill bits sharpened with the DBS-22 can last more than four times longer than standard S-tip drill bits. This means fewer replacements, greater efficiency, and long-term cost savings.

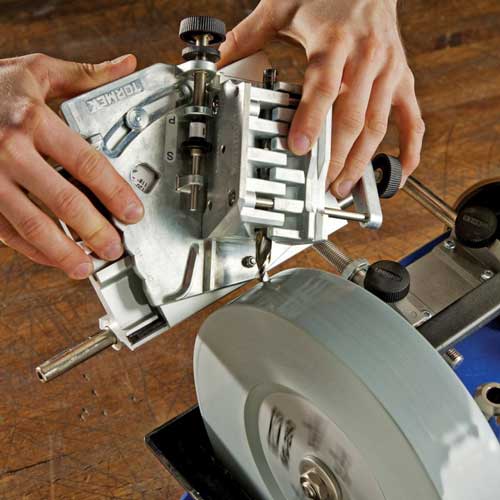

Sharpening with the DBS-22 offers complete control over the process. The jig allows you to adjust the optimum tip and lip relief angles based on drill bit size and the material being drilled. Additionally, broken drill bits can be reshaped back to perfect working condition. Continuous cooling during the sharpening process eliminates the risk of overheating, microcracking, or steel hardening loss. For added precision with smaller drill bits, a magnifying glass is included to help align the drill bit accurately.

Why DBS-22 Drill Bit Sharpening Attachment?

• Sharpens a patented four-facet point for reduced wandering and improved drilling efficiency.
• Extends drill bit life by over four times compared to standard S-tip drill bits.
• Suitable for drill bits from 3mm (1/8”) to 22mm (7/8”).
• Precise angle adjustment for different drilling operations and materials.
• Eliminates risk of overheating and loss of hardness during sharpening.
• Works best with Tormek T-8 and older compatible models.

Features & Benefits:

• Extended Service Life: Proven to make drill bits last over four times longer, reducing costs and downtime.
• Controlled Sharpening: Continuous cooling prevents overheating and damage to the drill bit’s edge.
• Versatile Use: Can sharpen both intact and broken drill bits for maximum utility.
• Precision Results: Four-facet point delivers better cutting action, requiring less pressure when drilling.
• Enhanced Accuracy: Included magnifying glass helps align smaller drill bits for optimal results.

Specifications:

Sharpening Range: Drill bits from 3mm (1/8”) to 22mm (7/8”) diameter
Weight: 3.35kg (7.39lb)
Colour: Gray/Black
Material: Precision-cast zinc, stainless steel, black composite
Warranty: 2 years

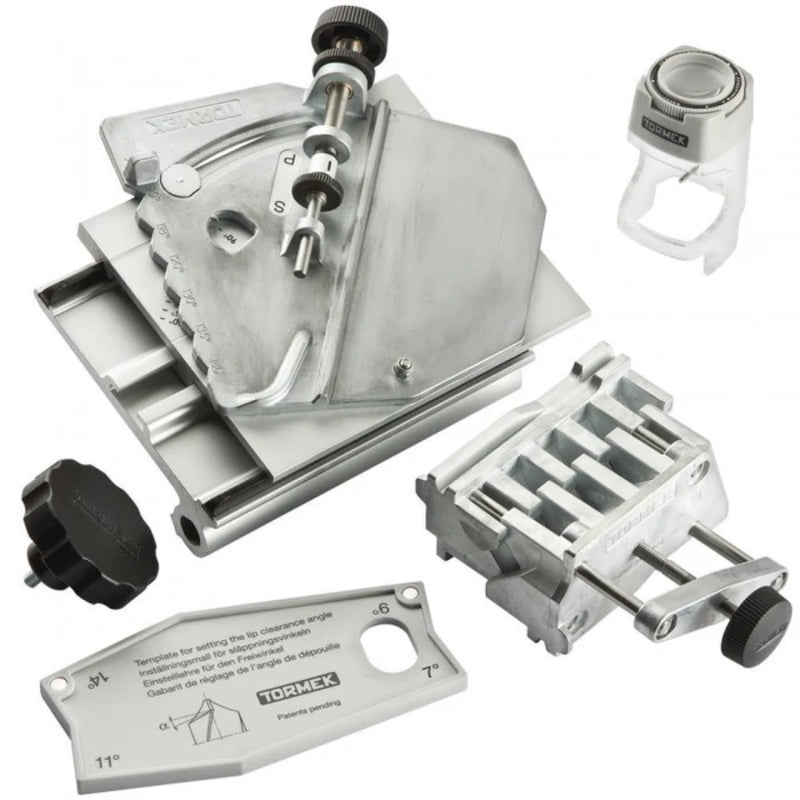

Scope of Delivery:

• 1 x Tormek DBS-22 Drill Bit Sharpening Attachment (fully assembled)
• 1 x Instructions for use
• 1 x Magnifying glass for drill bit alignment
• 1 x Jig setting template with magnets
• 1 x Tube of Tormek PTFE lubricant

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
