Tormek Multi Jig | SVS-50

Tormek Multi Jig | SVS-50.

The Tormek SVS-50 Multi Jig lives up to its name by offering two interchangeable seats – an open seat and a closed seat – which essentially makes it two jigs in one. This design allows the jig to sharpen a wide range of tools, including straight and round-edged woodturning chisels, parting tools, roughing gouges, and carving chisels or gouges. It works seamlessly with the Tormek T-4, T-8, and older Tormek models, making it a valuable addition to any sharpening setup.

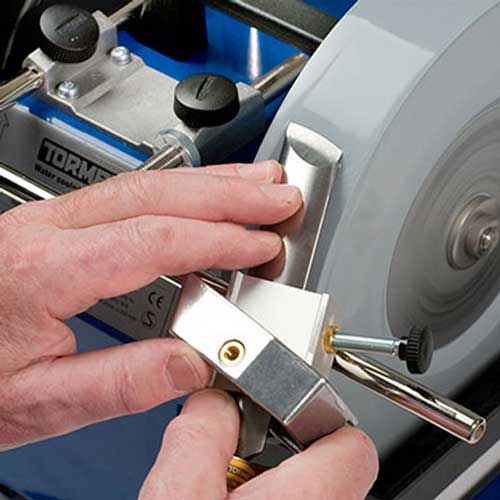

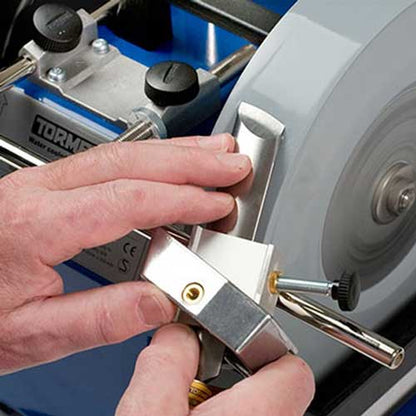

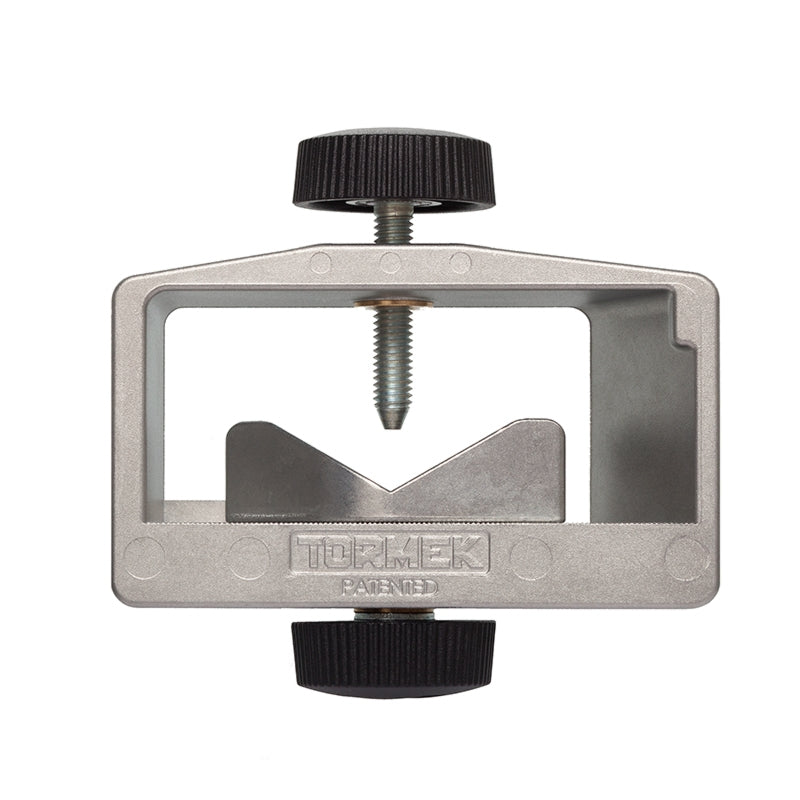

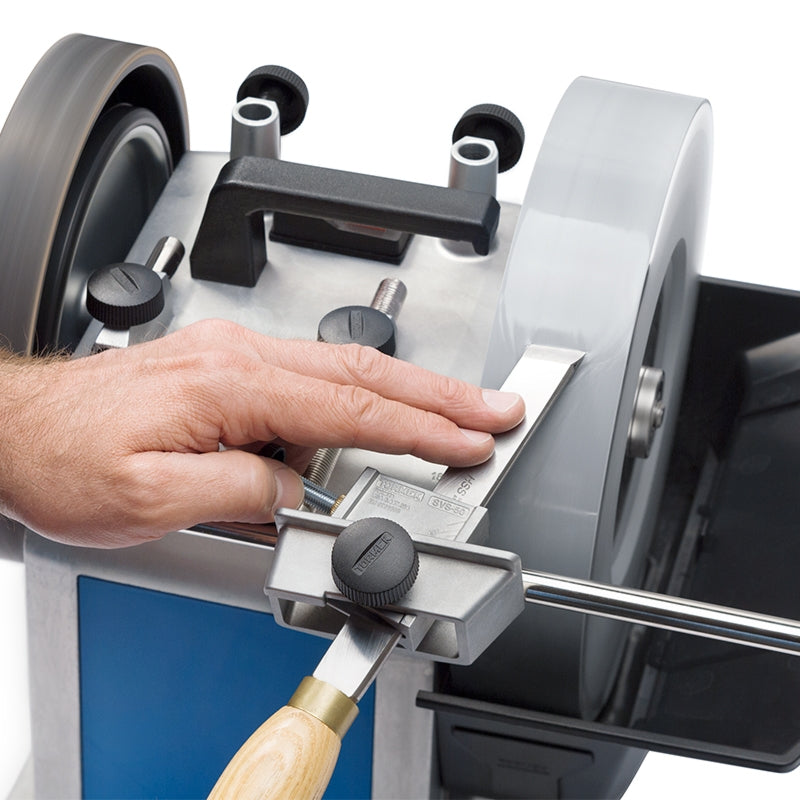

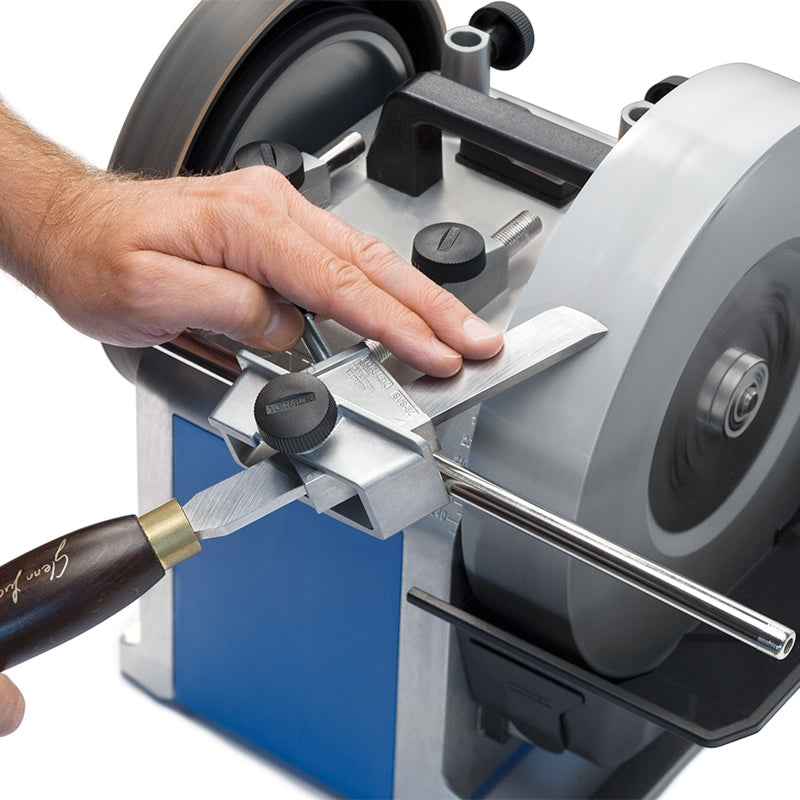

The closed seat is ideal for sharpening most skew chisels, whether they feature rectangular or rounded blades and straight or rounded edges. Thanks to its vertical mounting, users can sharpen both bevels by simply turning the jig upside down, saving time and ensuring symmetry. The jig even accommodates chisels with oval cross-sections through its patented design, while keeping tools aligned parallel to the universal support for consistent sharpening. The maximum chisel width supported is 32mm (1.3”).

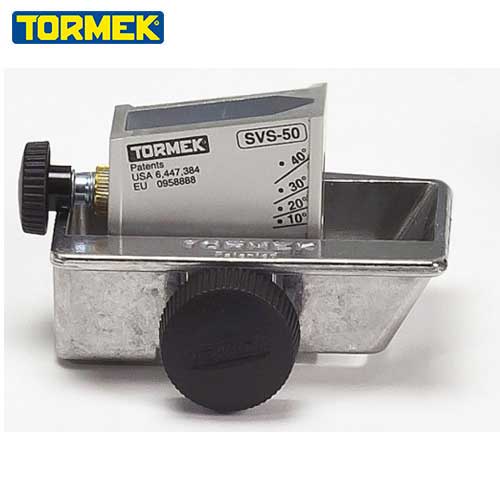

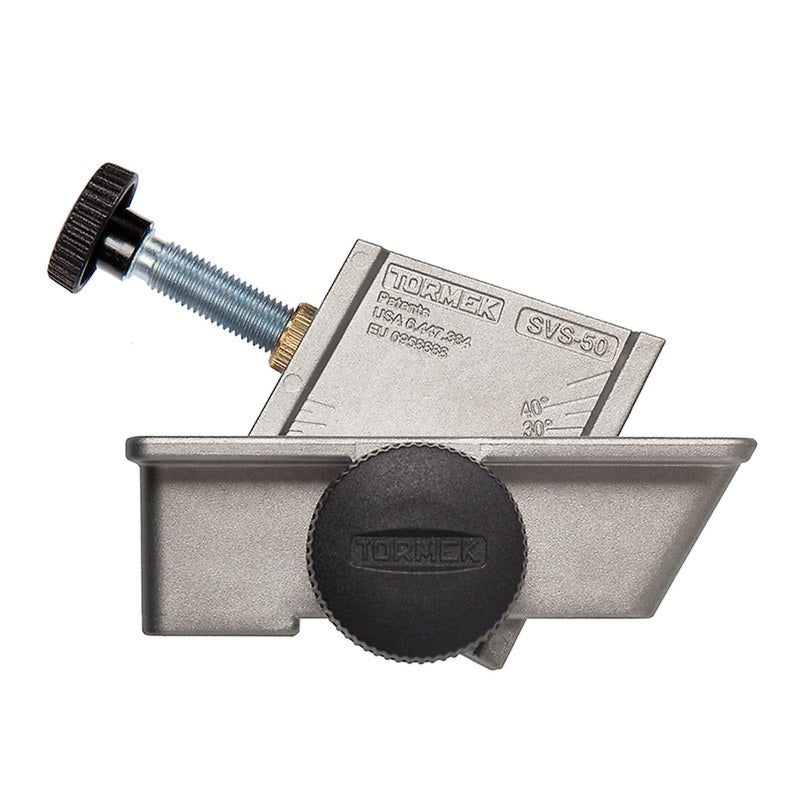

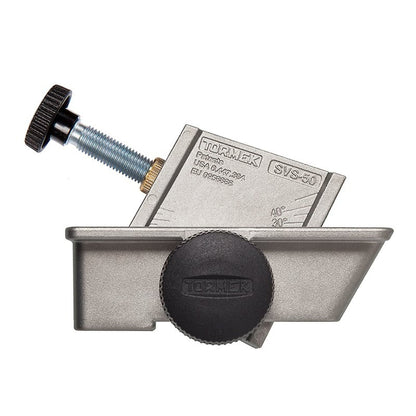

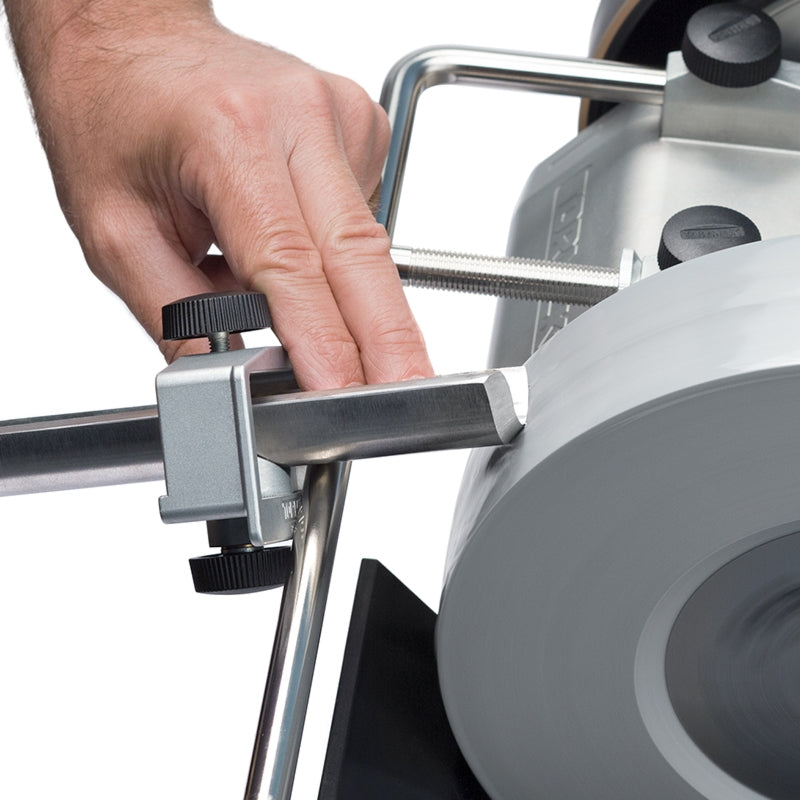

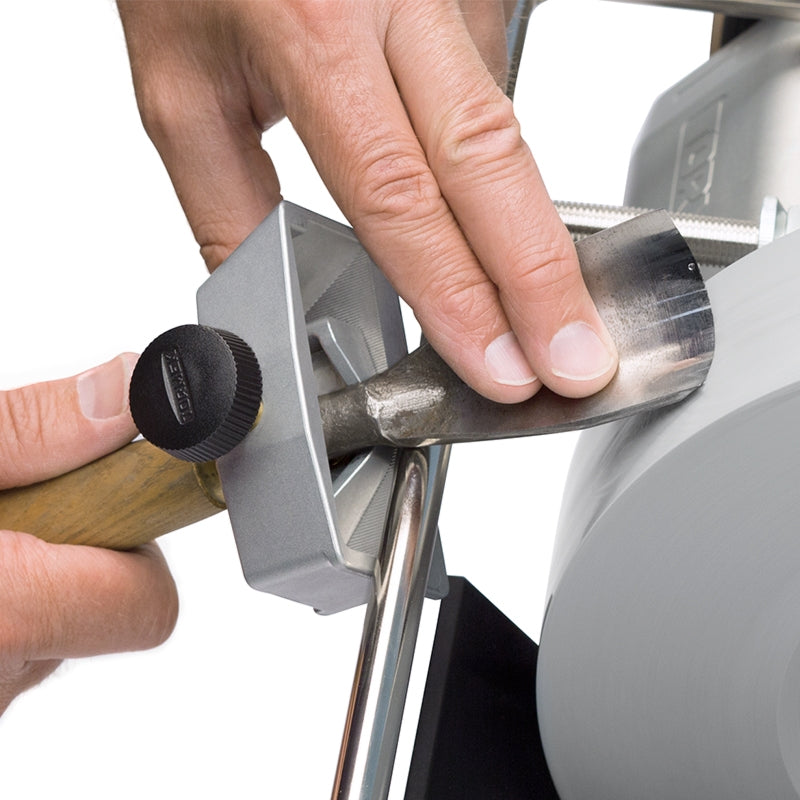

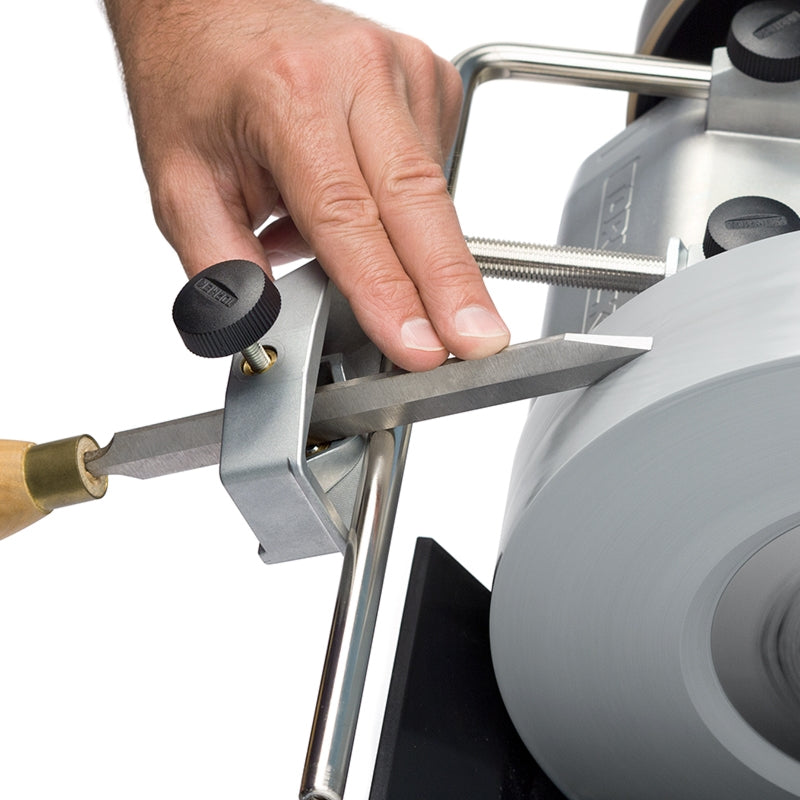

The open seat is best suited for tools with edges across the longitudinal direction, such as parting tools, roughing gouges, and wide carving gouges. Both seats are secured with a bottom screw, which also locks the angle for stable operation.

For woodturning applications, pairing the SVS-50 Multi Jig with the TTS-100 Turning Tool Setter enables precise repeatability and minimises steel removal, prolonging tool life. Water-cooled sharpening on a Tormek provides sharp, durable edges, often eliminating the need for sanding. Additionally, the jig can be used with the BGM-100 Bench Grinder Mounting Set to reshape tools before final sharpening on a Tormek machine.

Features & Benefits:

• Two-in-One Design: Includes interchangeable open and closed seats for different tool types.
• Closed Seat Functionality: Sharpens skew chisels, oval-section chisels, and rectangular blades with precision.
• Open Seat Functionality: Ideal for roughing gouges, parting tools, and wide carving gouges.
• Quick Symmetry Sharpening: Easily turn the jig over to grind both bevels without resetting.
• Profile Labelling: Comes with PL-01 Profile Labels for easy setup and accurate repeatability.
• Versatile Compatibility: Suitable for Tormek T-4, T-8, and older models, plus bench grinder use with BGM-100.
• Maximum Chisel Width: Handles chisels up to 32mm (1.3”).
• Durable Sharpness: Produces razor-sharp edges with longer lifespan through water-cooled sharpening.

Specifications:

Weight: Shipping weight 0.45 kg (0.99 lb)
Colour: Gray/black
Material: Precision-cast zinc, black composite
Maximum Chisel Width: 32mm (1.3”)
Warranty: 2-year warranty

Scope of Delivery:

• 1 x Tormek SVS-50 Multi Jig (fully assembled and ready to use)
• 1 x Instructions for the SVS-50 Multi Jig
• 1 x PL-01 Profile Labels with instructions (1 sheet of 9 labels)

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
